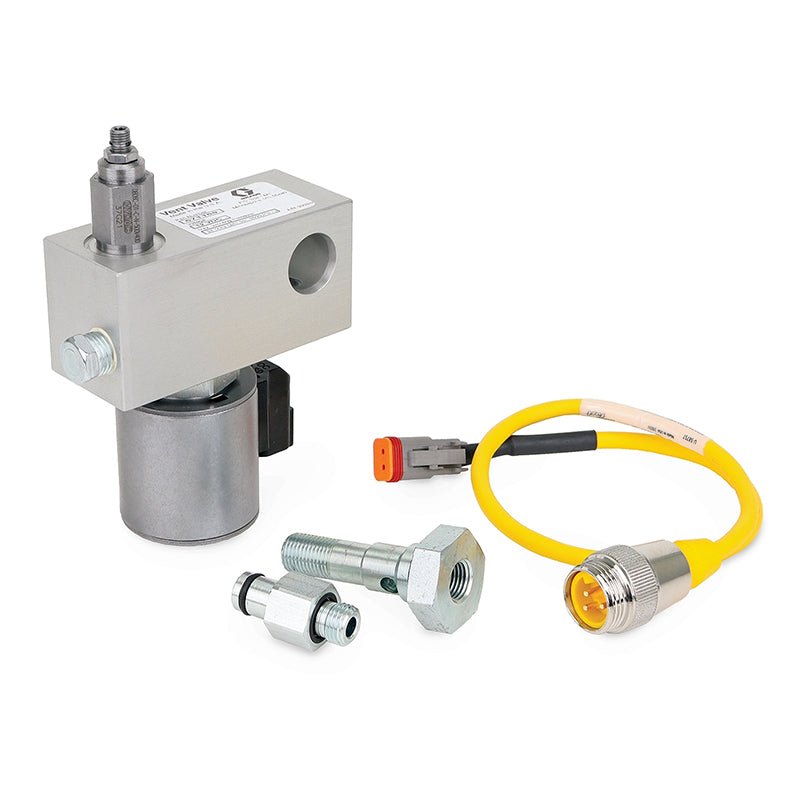

GRACO Direct-Mount Vent Valves for G3 Pumps

SKU 571169
Afterpay Zip PayPal LeaseGO
$864.00
Tax included. Shipping calculated at checkout.
Item
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Industry leading feature for your lube system needs.

Features
  • Easily mounts to your G3 pump.
  • Eliminates time and material costs associated with remote mounted vent valves.
  • 12 VDC
  • Normally Closed
  • The normally closed valve works with the G3 Max pumps controller, and vents pressure based on the time duration you program into the G3 control.
  • Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
    • Specifications
    UPC Product: 00633955623569
    Family Code: FAMMPM
    Unit of Measure: EA
    Height: 4.8 IN   |  12.192 CM
    Length: 6 IN   |  15.24 CM
    Width: 6 IN   |  15.24 CM
    Volume: .1 FT3   |  .003 M3
    Chargeable Weight: 3.3 LBS  | 1.5 KG

    Technical Specifications

    APPLICATION On-Road Vehicles, Off-Road Equipment
    COMPATIBLE MATERIAL Oil, Grease
    FOR USE WITH G3 泵, G3 ポンプ, G3 Pumps, Bombas G3
    INLET THREAD TYPE NPT
    MAXIMUM FLOW RATE (GPM) 5
    MAXIMUM FLOW RATE (L/MIN) 19
    MAXIMUM WORKING PRESSURE (BAR) 241
    MAXIMUM WORKING PRESSURE (KPA) 24100
    MAXIMUM WORKING PRESSURE (PSI) 3500
    OUTLET THREAD TYPE NPT
    RELIEF RATE (GPS) 0.13
    TYPE Vent Valve
    VOLTAGE (V DC) 12
    MAXIMUM WORKING PRESSURE (MPA) 24
    MODEL Trabon
