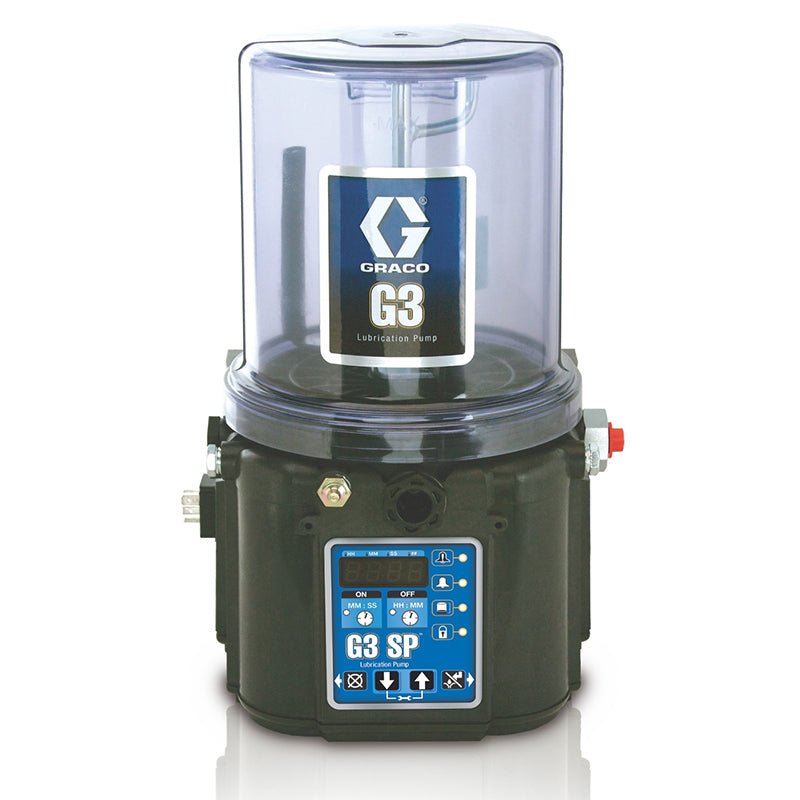

GRACO G3 SP Grease Lubrication Pump
SKU 96G225
$2,630.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 SP is designed with one M12 input to work with a proximity, very simple to program and includes one adjustable pump element–standard, plus room for two more.
Features
Specifications
| TYPE | Electric Piston Pump |
|---|---|
| APPLICATION | On-Road Vehicles, Off-Road Equipment |
| COMPATIBLE MATERIAL | Grease |
| FLUID OUTLET SIZE (IN) | 0.25 |
| FLUID OUTLET SIZE (MM) | 6.3500 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPSF |
| FOR USE WITH | Series Progressive Systems |
| INCLUDES | Low Level with Controller, Alarm |
| MAXIMUM NLGI GRADE | #2 |
| MAXIMUM WORKING PRESSURE (BAR) | 351.6 |
| MAXIMUM WORKING PRESSURE (KPA) | 35160 |
| MAXIMUM WORKING PRESSURE (PSI) | 5100 |
| MODEL | G3 |
| POWER TYPE | Electric |
| RESERVOIR SIZE (GAL) | 0.528 |
| RESERVOIR SIZE (L) | 2 |
| SERIES | SP |
| VOLTAGE (V DC) | 12 |
| WEIGHT (LB) | 13.3 |
| WETTED MATERIAL | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| ALARM RELAY INDUCTIVE MAXIMUM OPERATING CURRENT (A) | 1.5 |
| ALARM RELAY INDUCTIVE MAXIMUM OPERATING VOLTAGE (VDC) | 220 |
| ALARM RELAY INDUCTIVE MAXIMUM SWITCHING CAPACITY | 25 VA;30 W |
| ALARM RELAY INDUCTIVE MINIMUM PERMISSIBLE LOAD | 10 A;10m VDC |
| ALARM RELAY INDUCTIVE RATED LOAD (A) | 1 |
| ALARM RELAY RESISTIVE MAXIMUM OPERATING CURRENT (A) | 3 |
| ALARM RELAY RESISTIVE MAXIMUM SWITCHING CAPACITY | 50 VA;60 W |
| ALARM RELAY RESISTIVE MINIMUM PERMISSIBLE LOAD | 10 A;10m VDC |
| ALARM RELAY RESISTIVE RATED LOAD (A) | 2 |
| COMPATIBLE METERING DEVICE | Series Progressive |
| CONTROL OPTIONS | Series Progressive |
| INPUT CYCLE RATE (HZ) | 8 |
| INPUT IMPEDANCE | 1.1 |
| INPUT LOAD CURRENT (MA @ 12 VDC) | 11 |
| INPUT MAXIMUM OFF CURRENT (MA) | 1 |
| INPUT MAXIMUM RESIDUAL VOLTAGE (V) | 2 |
| INPUT REQUIRED SWITCH TYPE | Normally Open |
| INPUT RESPONSE TIME (MS) | 60 |
| INPUT SENSOR VOLTAGE (VDC) | 12 |
| IP RATING | IP69K |
| LOW LEVEL CARRY CURRENT (A) | 1.2 |
| LOW LEVEL CONTACT RATING (W) | 10 |
| LOW LEVEL SWITCH RATING (VDC) | 200 |
| LOW LEVEL SWITCHING CURRENT (A) | 0.5 |
| MAXIMUM FILL INLET PRESSURE (BAR) | 344.7 |
| MAXIMUM FILL INLET PRESSURE (KPA) | 34470 |
| MAXIMUM FILL INLET PRESSURE (PSI) | 5000 |
| MAXIMUM RUN TIME (MIN) | 30 |
| MAXIMUM VOLTAGE (V DC) | 16 |
| MINIMUM VOLTAGE (V DC) | 9 |
| NUMBER OF MACHINE COUNT SENSOR INPUTS | 1 |
| NUMBER OF PRESSURE AND CYCLE SENSOR INPUTS | 3 |
| NUMBER OF PUMP ELEMENTS | Up to 3 |
| NUMBER OF SENSOR INPUTS | 1 |
| OVERALL DEPTH (CM) | 22.9 |
| OVERALL DEPTH (IN) | 9 |
| OVERALL DEPTH (MM) | 229 |
| OVERALL HEIGHT (CM) | 33.7 |
| OVERALL HEIGHT (IN) | 13.25 |
| OVERALL HEIGHT (MM) | 337 |
| OVERALL WIDTH (CM) | 20.3 |
| OVERALL WIDTH (IN) | 8 |
| OVERALL WIDTH (MM) | 203 |
| POWER CONNECTION TYPE | CPC |
| PUMP OUTPUT WITH 0 SPACERS (CU IN/MIN) | 0.25 |
| PUMP OUTPUT WITH 1 SPACER (CU IN/MIN) | 0.18 |
| PUMP OUTPUT WITH 2 SPACERS (CU IN/MIN) | 0.12 |
| VENT VALVE MAXIMUM OPERATING CURRENT (A) | 2 |
| VENT VALVE MAXIMUM OPERATING POWER (W) | 48 |
| VENT VALVE OUTPUT VOLTAGE (VDC) | 12 |
| VOLTAGE (V) | 12 VDC |
| WEIGHT (KG) | 6 |
| MAXIMUM WORKING PRESSURE (MPA) | 35.1 |
