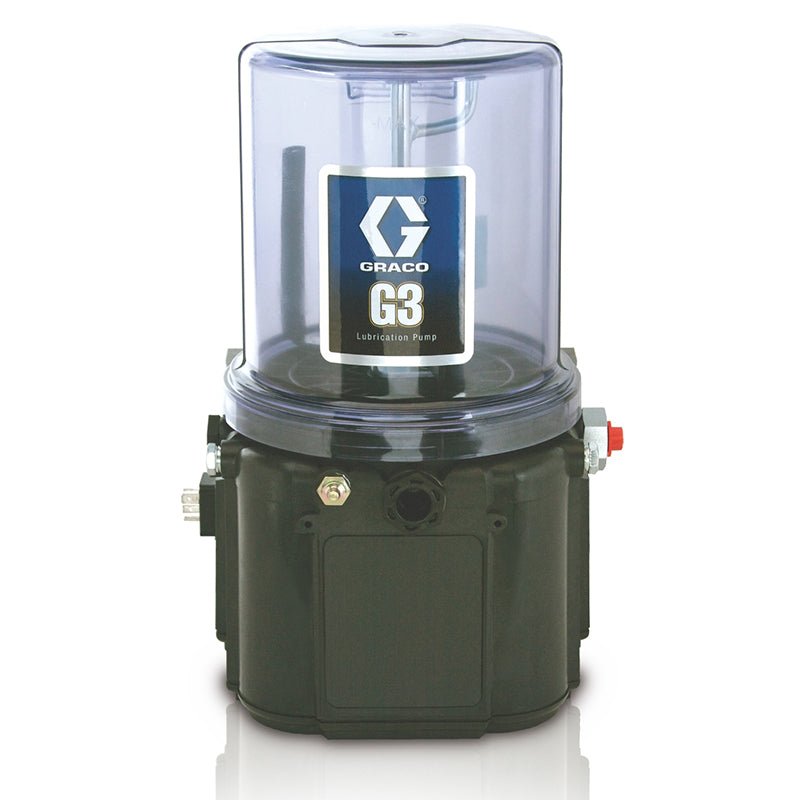

GRACO G3 Standard Grease Lubrication Pump
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
Features
Specifications
Technical Specifications
| TYPE | Electric Piston Pump |
|---|---|
| APPLICATION | On-Road Vehicles, Off-Road Equipment |
| COMPATIBLE MATERIAL | Grease |
| FLUID OUTLET SIZE (IN) | 0.25 |
| FLUID OUTLET SIZE (MM) | 6.3500 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPSF |
| FOR USE WITH | 基于注油器的系统, インジェクターベースシステム, Injector-Based Systems, Sistemas basados en inyectores, 递进式递进式系统, 先進的シリーズシステム, Series Progressive Systems, Sistemas de serie progresiva |
| INCLUDES | 刮板, ワイパーアーム, Wiper Arm, Brazo del rascador, 外部低液位, 外部低レベル, External Low Level, Nivel bajo externo |
| MAXIMUM NLGI GRADE | #2 |
| MAXIMUM WORKING PRESSURE (BAR) | 351.6 |
| MAXIMUM WORKING PRESSURE (KPA) | 35160 |
| MAXIMUM WORKING PRESSURE (PSI) | 5100 |
| MODEL | G3 |
| POWER TYPE | Electric |
| RESERVOIR SIZE (GAL) | 1.06 |
| RESERVOIR SIZE (L) | 4 |
| SERIES | Standard |
| VOLTAGE (V DC) | 24 |
| WEIGHT (LB) | 13.3 |
| WETTED MATERIAL | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| COMPATIBLE METERING DEVICE | Series Progressive, Single Line Parallel |
| CONTROL OPTIONS | Standard |
| IP RATING | IP69K |
| MAXIMUM FILL INLET PRESSURE (BAR) | 344.7 |
| MAXIMUM FILL INLET PRESSURE (KPA) | 34470 |
| MAXIMUM FILL INLET PRESSURE (PSI) | 5000 |
| MAXIMUM RUN TIME (MIN) | 30 |
| MAXIMUM VOLTAGE (V DC) | 32 |
| MINIMUM VOLTAGE (V DC) | 18 |
| NUMBER OF PUMP ELEMENTS | Up to 3 |
| OVERALL DEPTH (CM) | 25.4 |
| OVERALL DEPTH (IN) | 10 |
| OVERALL DEPTH (MM) | 254 |
| OVERALL HEIGHT (CM) | 36.8 |
| OVERALL HEIGHT (IN) | 14.5 |
| OVERALL HEIGHT (MM) | 368 |
| OVERALL WIDTH (CM) | 23.5 |
| OVERALL WIDTH (IN) | 9.25 |
| OVERALL WIDTH (MM) | 235 |
| POWER CONNECTION TYPE | DIN |
| VOLTAGE (V) | 24 VDC |
| WEIGHT (KG) | 6 |
| MAXIMUM WORKING PRESSURE (MPA) | 35.1 |
Additional Information
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
