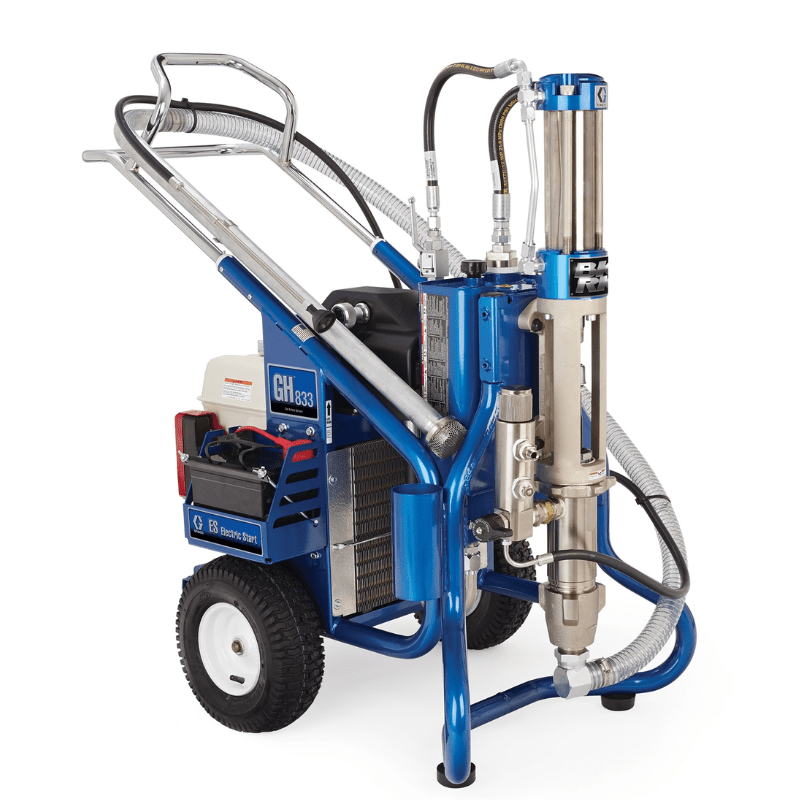

GRACO GH 833ES Big Rig Gas Hydraulic Sprayer
SKU 16U287
$27,100.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The GH 833ES is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Features
Features
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Flow-Through Filter System
- Inside/out design eliminates clogged filters
- Eliminates tip clogs
Specifications
| COMPATIBLE MATERIAL | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 287834 |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 13 |
| FLUID INLET SIZE (IN) | 1-1/2 to 11-1/2 |
| FLUID INLET THREAD TYPE | MNPT |
| FLUID OUTLET SIZE (IN) | 1 to 11-1/2 |
| FLUID OUTLET THREAD TYPE | FNPT |
| FRAME CONFIGURATION | Cart |
| MAXIMUM FLOW RATE (GPM) | 4 |
| MAXIMUM FLOW RATE (L/MIN) | 15.1 |
| MAXIMUM HOSE LENGTH (FT) | 50 |
| MAXIMUM HOSE LENGTH (M) | 15 |
| MAXIMUM TIP SIZE (IN) | 0.065 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.065 |
| MAXIMUM WORKING PRESSURE (PSI) | 4000 |
| MAXIMUM WORKING PRESSURE (KPA) | 27580 |
| POWER RATING (HP) | 13 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 9.7 |
| POWER RATING (W) | 9694 |
| MAXIMUM WORKING PRESSURE (MPA) | 27.6 |
| PRESSURE CONTROL TYPE | Pressure Control Knob |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 275.8 |
| WEIGHT (KG) | 181 |
| WEIGHT (LB) | 398 |
| SERIES | 833ES |
| PUMP TYPE | Endurance |
| TYPE | Airless Sprayer |
| MOTOR TYPE | Hydraulic Motor |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 6 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.046 |
| PRODUCT TYPE | Single Leg |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.037 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.032 |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 390 |
| MAXIMUM TIP SIZE GUN 5 (IN) | 0.029 |
| CONTROL TYPE | N/A |
| MAXIMUM TIP SIZE GUN 6 (IN) | 0.026 |
Data Sheet
Manual
- GRACO TexSpray 7900 HD Standard Series Gas Airless Sprayer 17E841 Operations Manual 3A6400EN-B
- Graco Operation Manual GH833 Sprayers 311279EN-G
- Graco Manual GH 833 Sprayers 311283EN-J
- Graco Parts GH 833 Sprayer 311484EN-S
- Graco Displacement Pump Manual 311485EN-M
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- Graco Collation Sheet GH833 Sprayers 311488EN-D
