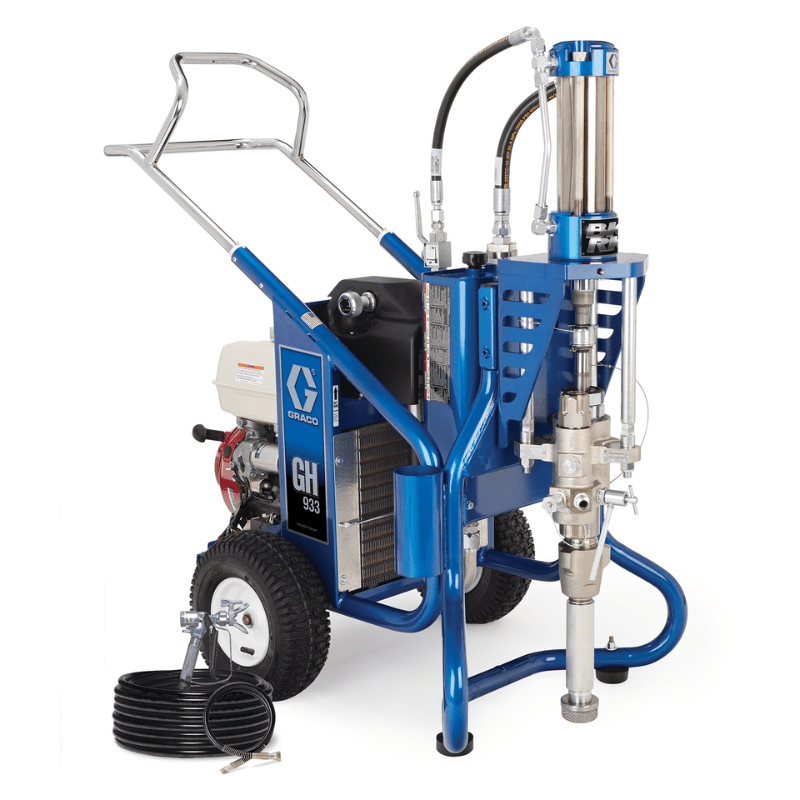

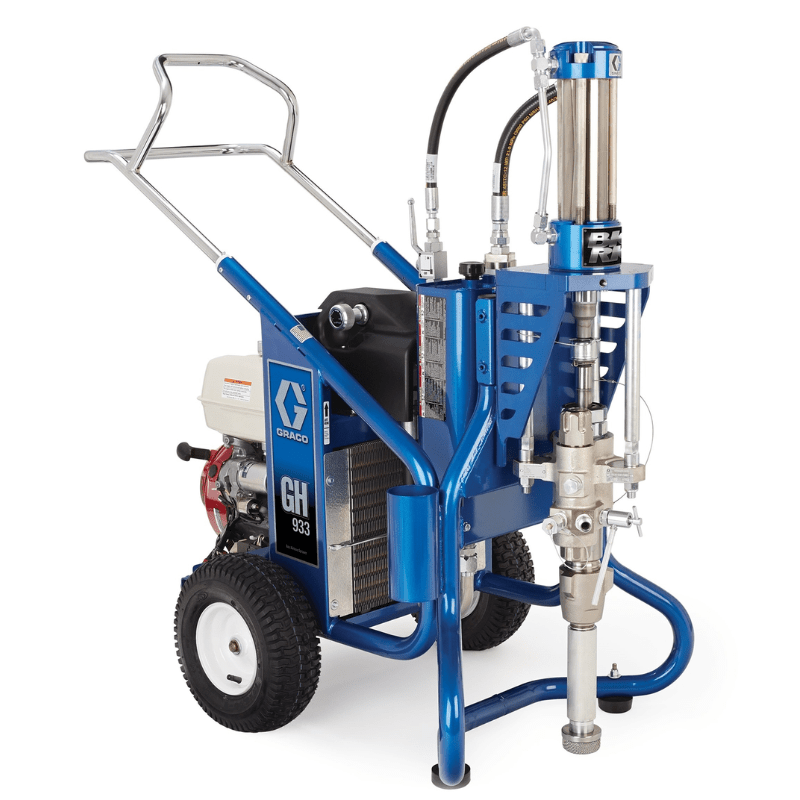

GRACO GH 933 Big Rig Gas Hydraulic Sprayer
SKU 16U281
$27,300.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 933 can get the job done.
Features
Features
- Honda® Engine
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Heavy-Duty Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Xtreme Pump
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuickAccess intake valve removes easily for fast repairs
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
Specifications
| COMPATIBLE MATERIAL | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 16U755 |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 13 |
| ENGINE SIZE (KW) | 9.7 |
| FLUID INLET SIZE (IN) | 1-1/4 |
| FLUID INLET THREAD TYPE | MNPT |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET THREAD TYPE | NPSF |
| FRAME CONFIGURATION | Cart |
| MAXIMUM FLOW RATE (GPM) | 2.5 |
| MAXIMUM FLOW RATE (L/MIN) | 9.5 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 91 |
| MAXIMUM TIP SIZE (IN) | 0.053 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.065 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| POWER RATING (HP) | 13 |
| POWER SOURCE | Gas Hydraulic |
| POWER RATING (KW) | 9.7 |
| OVERALL WIDTH (MM) | 711.2000 |
| MODEL | GH |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| OVERALL HEIGHT (CM) | 124 |
| OVERALL HEIGHT (IN) | 49 |
| WEIGHT (KG) | 181 |
| WEIGHT (LB) | 398 |
| OVERALL HEIGHT (MM) | 1244.6000 |
| OVERALL LENGTH (CM) | 109 |
| OVERALL WIDTH (IN) | 28 |
| OVERALL LENGTH (IN) | 43 |
| SERIES | 933 |
| OVERALL LENGTH (MM) | 1092.2 |
| OVERALL WIDTH (CM) | 71 |
| PUMP TYPE | Xtreme |
| TYPE | Airless Sprayer |
| MOTOR TYPE | Hydraulic Motor |
| WETTED MATERIAL | Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Chromex |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Paints, Primers |
| POWER RATING (CC) | 390 |
| CONTROL TYPE | N/A |
Manual
- Graco Manual GH Series Big Rig Sprayers Operation 332156EN-E
- Graco Manual GH Series Roof Rig Sprayers Repair 332157EN-B
- Graco Manual Parts GH Series Big Rig Sprayers 1 332158EN-J
- Graco King 30-1 Sprayer Integrated Filter Manual 2 311762EN-ZAR
- Graco Collation GH Seris Big Rig Sprayer 332197EN-B
- Graco Instructions Gauge Kit for GH2570ES 332232EN-A
