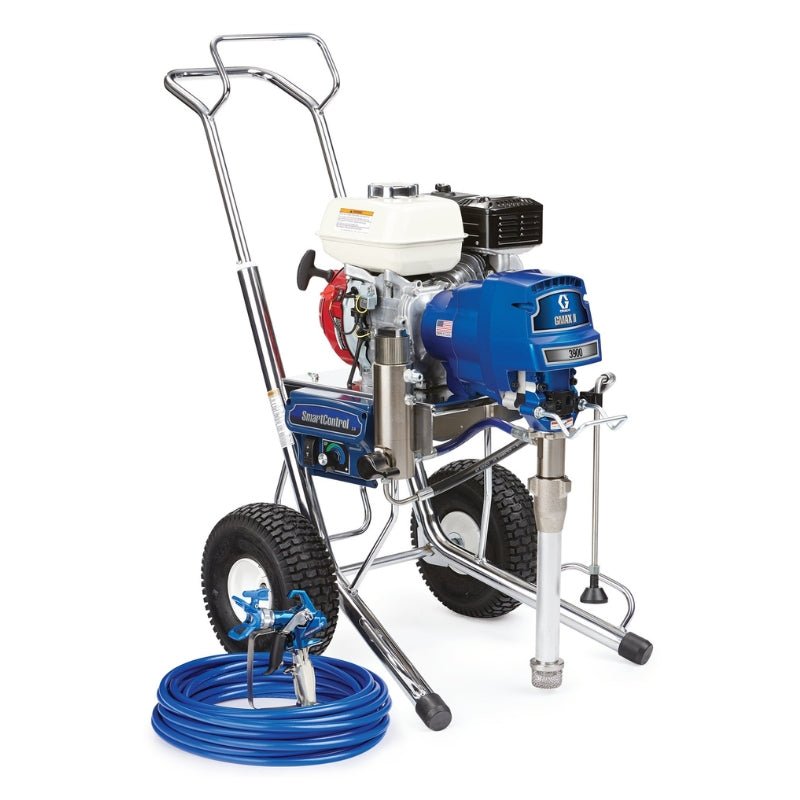

GRACO GMAX II 3900 Hi-Boy Standard Series Gas Airless Sprayer
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.
Features
Features
- Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X longer than the next leading brand
- Repack the pump in minutes with the new QuikPak Cartridge System
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Durable Cart Design
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Retractable handle doubles as coiled hose storage
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info:graco.com/ContractorPC
- Jobsite Ready
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
Specifications
|
CONVERTIBLE |
Non-Convertible |
|---|---|
|
ENGINE BRAND |
Honda |
|
ENGINE SIZE (HP) |
4 |
|
FEATURES |
Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
|
FLUID INLET SIZE (IN) |
1-5/16 |
|
FLUID INLET SIZE (MM) |
33.34 |
|
FLUID INLET THREAD TYPE |
UN-2A |
|
FLUID OUTLET SIZE (IN) |
1/4 |
|
FLUID OUTLET SIZE (MM) |
6.35 |
|
FLUID OUTLET THREAD TYPE |
NPSM |
|
FRAME CONFIGURATION |
Hi-Boy |
|
HOSE INLET DIAMETER (CM) |
0.635 |
|
HOSE INLET DIAMETER (IN) |
1/4 |
|
HOSE INLET DIAMETER (MM) |
6.35 |
|
INCLUDES |
Contractor PC 喷枪, Contractor PC ガン, Contractor PC Gun, Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 1/4 英寸 x 50 英尺 BlueMax II 无气软管, 1/4 x 50 ft BlueMax II エアレスホース, 1/4 in x 50 ft BlueMax II Airless Hose, 1/4 in x 50 ft BlueMax II 에어리스 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz, TSL 4 oz |
|
INLET PAINT STRAINER |
8 Mesh Stainless Steel Screen |
|
MAXIMUM FLOW RATE (GPM) |
1.25 |
|
MAXIMUM FLOW RATE (L/MIN) |
4.73 |
|
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) |
96 |
|
MAXIMUM TIP SIZE (IN) |
0.036 |
|
MAXIMUM TIP SIZE GUN 1 (IN) |
0.036 |
|
MAXIMUM WORKING PRESSURE (PSI) |
3300 |
|
MAXIMUM WORKING PRESSURE (KPA) |
22800 |
|
POWER RATING (HP) |
4 |
|
POWER SOURCE |
Gas |
|
POWER RATING (KW) |
2.98 |
|
POWER RATING (W) |
2983 |
|
MAXIMUM WORKING PRESSURE (MPA) |
22.8 |
|
PRESSURE CONTROL TYPE |
SmartControl 3.0 |
|
OVERALL WIDTH (MM) |
566 |
|
MODEL |
GMAX II |
|
MAXIMUM WORKING PRESSURE (BAR) |
228 |
|
OVERALL HEIGHT (CM) |
103.6 |
|
OVERALL HEIGHT (IN) |
40.8 |
|
WEIGHT (KG) |
48 |
|
WEIGHT (LB) |
106 |
|
OVERALL HEIGHT (MM) |
1036 |
|
OVERALL LENGTH (CM) |
97.3 |
|
OVERALL WIDTH (IN) |
22 |
|
OVERALL LENGTH (IN) |
38.3 |
|
SERIES |
3900 |
|
OVERALL LENGTH (MM) |
973 |
|
OVERALL WIDTH (CM) |
56.6 |
|
PUMP TYPE |
Endurance |
|
TYPE |
Airless Sprayer |
|
WETTED MATERIAL |
Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
|
OUTLET PAINT FILTER |
60 Mesh Stainless Steel Screen |
|
PUMP SLEEVE MATERIAL |
Stainless Steel |
|
PUMP MOUNT TYPE |
QuikChange |
|
PUMP ROD TYPE |
Chromex |
|
NUMBER OF GUNS |
2 |
|
MAXIMUM TIP SIZE GUN 2 (IN) |
0.023 |
|
RECOMMENDED ANNUAL USAGE |
Up to 500 gallons per week |
|
POWER RATING (CC) |
120 |
|
PRODUCT SERIES |
Standard |
