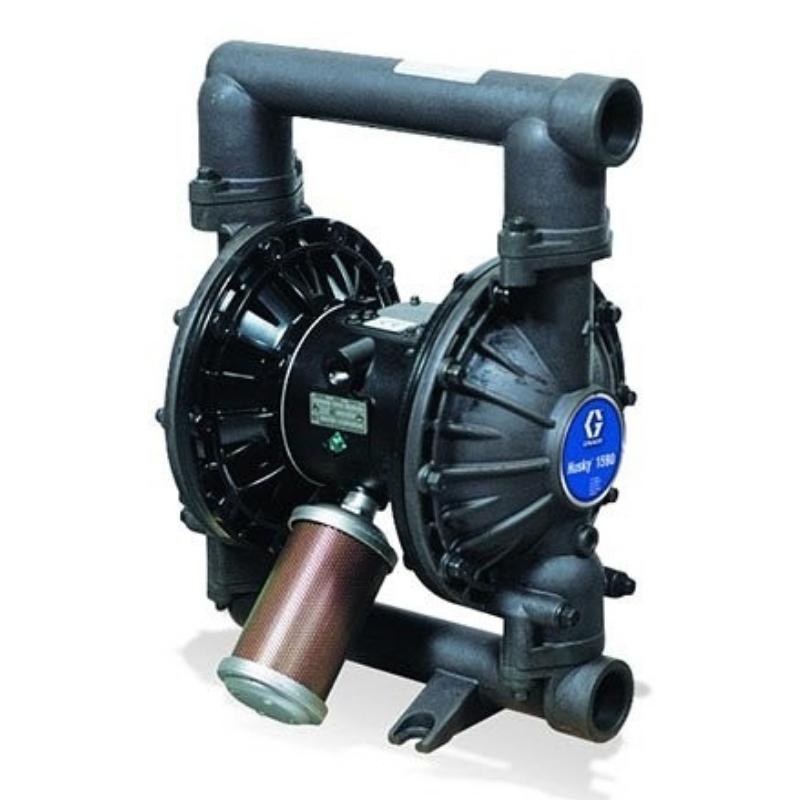

GRACO Husky 1590 Air-Operated Diaphragm Pumps

SKU DB3525
Afterpay Zip PayPal LeaseGO
$3,730.00
Tax included. Shipping calculated at checkout.
Models
Quantity
Contact for pricing
In Stock, Victoria Warehouse

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Built for the work it does.

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Features

Features

  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • Offered in ATEX configuration.
  • 1-1/2 in. (38.1 mm) ANSI end-porting
  • High flow - 100 gpm (378 lpm) in a compact, portable size
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Available in polypropylene, aluminum and stainless steel
  • Epoxy-coated air section for tough environmental conditions
    • Specifications
    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/4
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 1/2
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL Acetal [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    PTFE [DTD311, DBC311]
    CENTER SECTION MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    DIAPHRAGM MATERIAL TPE (Hytrel) [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    PTFE/EPDM 2-Piece [DTD311, DBC311]
    FLUID INLET SIZE (CM) 3.81
    FLUID INLET SIZE (IN) 1-1/2
    FLUID INLET SIZE (MM) 38.1
    FLUID INLET THREAD GENDER Female [DB3525, DB3GGG]
    BSPT [DTD311]
    FLUID INLET THREAD TYPE NPT [DB3525, DB3GGG]
    BSPT [DBC525, DBCGGG, DBC311]
    FLUID OUTLET SIZE (CM) 3.81
    FLUID OUTLET SIZE (IN) 1-1/2
    FLUID OUTLET SIZE (MM) 38.1
    FLUID OUTLET THREAD GENDER Female [DB3525, DB3GGG]
    FLUID OUTLET THREAD TYPE NPT [DB3525, DB3GGG]
    BSPT [DBC525, DBCGGG, DTD311, DBC311]
    FLUID SECTION MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    MANIFOLD CONFIGURATION End Port
    MANIFOLD O-RING MATERIAL PTFE [DB3GGG, DBCGGG, DTD311, DBC311]
    MATERIAL Aluminum [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    Stainless Steel [DTD311]
    MAXIMUM AIR CONSUMPTION (SCFM) 125
    MAXIMUM AIR PRESSURE (BAR) 8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    8.27 [DTD311]
    MAXIMUM AIR PRESSURE (KPA) 800 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    827 [DTD311]
    MAXIMUM AIR PRESSURE (PSI) 120
    MAXIMUM CYCLE RATE (CPM) 200
    MAXIMUM FLOW RATE (GPM) 100
    MAXIMUM FLOW RATE (L/MIN) 379
    MAXIMUM FLUID PRESSURE (BAR) 8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    8.27 [DTD311]
    MAXIMUM FLUID PRESSURE (KPA) 800 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    827 [DTD311]
    MAXIMUM FLUID PRESSURE (PSI) 120
    MAXIMUM OPERATING TEMPERATURE (°C) 66 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    82 [DBC311]
    MAXIMUM OPERATING TEMPERATURE (°F) 150 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    180 [DBC311]
    MAXIMUM SOLID SIZE (CM) 0.4763
    MAXIMUM SOLID SIZE (IN) 0.1875
    MAXIMUM SOLID SIZE (MM) 4.763
    MODEL Husky
    OVERALL HEIGHT (IN) 19.6
    POWER SOURCE Air
    SEAT MATERIAL TPE (Hytrel) [DB3525, DBC525]
    Geolast [DB3GGG, DBCGGG]
    Stainless Steel [DTD311, DBC311]
    SERIES 1590
    STANDARDS MET ATEX, CE
    WEIGHT (LB) 33.5
    WETTED MATERIAL Aluminum, Acetal, TPE [DB3525, DBCGGG]
    Aluminum, Stainless Steel, PTFE/EPDM [DBC311]
    MAXIMUM FLUID PRESSURE (MPA) 0.8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    0.827 [DTD311]
    MAXIMUM AIR PRESSURE (MPA) 0.8 [DB3525, DBC525, DB3GGG, DBCGGG, DBC311]
    0.827 [DTD311]
    CONNECTION TYPE Threaded
    DIAPHRAGM_COMPATIBLE_MATERIAL TPE [DB3525, DBC525] Geolast [DB3GGG, DBCGGG]
    PTFE [DTD311, DBC311]
