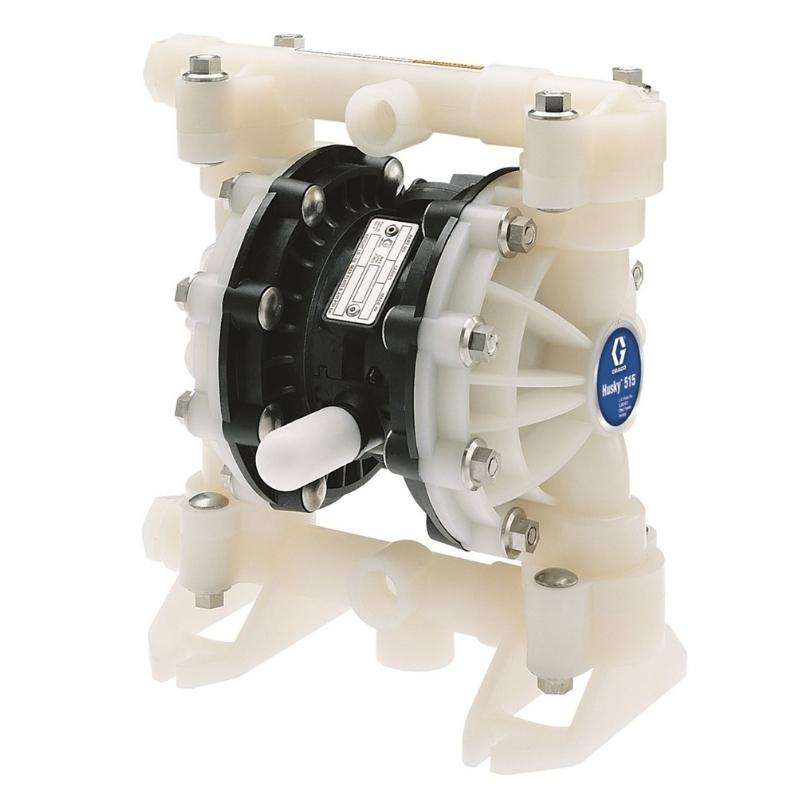

GRACO Husky 515 Air - Operated Double Diaphragm Pumps - GO Industrial - D52966

GRACO Husky 515 Air-Operated Double Diaphragm Pumps

SKU D52966
Afterpay Zip PayPal LeaseGO
$1,674.00
Tax included. Shipping calculated at checkout.
Models
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Built for the work it does.

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

    Features

    Features

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Reliable air valve for years of dependable performance
    • Specifications
    Technical Specifications SKU D52966 SKU D5B966
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/8 3/8
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT NPT
    AIR INLET SIZE (IN) 1/4 1/4
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL Santoprene Santoprene
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
    DIAPHRAGM MATERIAL Santoprene Santoprene
    FLUID INLET SIZE (CM) 1.27 1.27
    FLUID INLET SIZE (IN) 1/2 1/2
    FLUID INLET SIZE (MM) 12.7 12.7
    FLUID INLET THREAD TYPE NPT BSPT
    FLUID OUTLET SIZE (CM) 1.27 1.27
    FLUID OUTLET SIZE (IN) 1/2 1/2
    FLUID OUTLET SIZE (MM) 12.7 12.7
    FLUID OUTLET THREAD TYPE NPT BSPT
    FLUID SECTION MATERIAL Polypropylene Polypropylene
    MANIFOLD CONFIGURATION Center Port Center Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL Polypropylene Polypropylene
    MAXIMUM AIR CONSUMPTION (SCFM) 28 28
    MAXIMUM AIR PRESSURE (BAR) 7 7
    MAXIMUM AIR PRESSURE (KPA) 700 700
    MAXIMUM AIR PRESSURE (PSI) 100 100
    MAXIMUM CYCLE RATE (CPM) 400 400
    MAXIMUM FLOW RATE (GPM) 15 15
    MAXIMUM FLOW RATE (L/MIN) 56.8 56.8
    MAXIMUM FLUID PRESSURE (BAR) 7 7
    MAXIMUM FLUID PRESSURE (KPA) 700 700
    MAXIMUM FLUID PRESSURE (PSI) 100 100
    MAXIMUM OPERATING TEMPERATURE (°C) 66 82
    MAXIMUM OPERATING TEMPERATURE (°F) 150 180
    MAXIMUM SOLID SIZE (CM) 0.2383 0.2383
    MAXIMUM SOLID SIZE (IN) 0.09375 0.09375
    MAXIMUM SOLID SIZE (MM) 2.383 2.383
    MINIMUM OPERATING TEMPERATURE (°C) 4 4
    MINIMUM OPERATING TEMPERATURE (°F) 40 40
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 10.63 10.63
    POWER SOURCE Air Air
    SEAT MATERIAL Polypropylene Polypropylene
    SERIES 515 515
    WEIGHT (LB) 6.5 6.5
    WETTED MATERIAL - Polypropylene, Santoprene, PTFE
    MAXIMUM FLUID PRESSURE (MPA) 0.7 0.7
    MAXIMUM AIR PRESSURE (MPA) 0.7 0.7
    Technical Specifications SKU D55A11 SKU D5EA11
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/8 3/8
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT NPT
    AIR INLET SIZE (IN) 1/4 1/4
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT NPT
    APPLICATION Industrial Industrial
    BALL MATERIAL PTFE PTFE
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
    DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 1.27 1.27
    FLUID INLET SIZE (IN) 1/2 1/2
    FLUID INLET SIZE (MM) 12.7
    FLUID INLET THREAD GENDER Female
    FLUID INLET THREAD TYPE NPT BSPT
    FLUID OUTLET SIZE (CM) 1.27 12.7
    FLUID OUTLET SIZE (IN) 1/2 1/2
    FLUID OUTLET SIZE (MM) 12.7 12.7
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT BSPT
    FLUID SECTION MATERIAL PVDF PVDF
    MANIFOLD CONFIGURATION Center Port Center Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL PVDF PVDF
    MAXIMUM AIR CONSUMPTION (SCFM) 28 28
    MAXIMUM AIR PRESSURE (BAR) 7 7
    MAXIMUM AIR PRESSURE (KPA) 700 700
    MAXIMUM AIR PRESSURE (PSI) 100 100
    MAXIMUM CYCLE RATE (CPM) 400 400
    MAXIMUM FLOW RATE (GPM) 15 15
    MAXIMUM FLOW RATE (L/MIN) 56.8 56.8
    MAXIMUM FLUID PRESSURE (BAR) 7 7
    MAXIMUM FLUID PRESSURE (KPA) 700 700
    MAXIMUM FLUID PRESSURE (PSI) 100 100
    MAXIMUM OPERATING TEMPERATURE (°C) 107 104
    MAXIMUM OPERATING TEMPERATURE (°F) 225 220
    MAXIMUM SOLID SIZE (CM) 0.2383 0.2383
    MAXIMUM SOLID SIZE (IN) 0.09375 0.09375
    MAXIMUM SOLID SIZE (MM) 2.383 2.383
    MINIMUM OPERATING TEMPERATURE (°C) 4 4
    MINIMUM OPERATING TEMPERATURE (°F) 40 40
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 10.63 10.63
    POWER SOURCE Air Air
    SEAT MATERIAL PVDF PVDF
    SERIES 515 515
    WEIGHT (LB) 8.5 8.5
    WETTED MATERIAL - PVDF, Polypropylene, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.7 0.7
    MAXIMUM AIR PRESSURE (MPA) 0.7 0.7
    Technical Specifications SKU D51277
    TYPE Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 3/8
    AIR EXHAUST PORT THREAD GENDER Female
    AIR EXHAUST PORT THREAD TYPE NPT
    AIR INLET SIZE (IN) 1/4
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    APPLICATION Industrial
    BALL MATERIAL Buna
    CENTER SECTION MATERIAL Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
    DIAPHRAGM MATERIAL Buna
    FLUID INLET SIZE (CM) 1.27
    FLUID INLET SIZE (IN) 1/2
    FLUID INLET SIZE (MM) 12.7
    FLUID INLET THREAD GENDER Female
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (CM) 1.27
    FLUID OUTLET SIZE (IN) 1/2
    FLUID OUTLET SIZE (MM) 12.7
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT
    FLUID SECTION MATERIAL Acetal
    MANIFOLD CONFIGURATION Center Port
    MANIFOLD O-RING MATERIAL PTFE
    MATERIAL Acetal
    MAXIMUM AIR CONSUMPTION (SCFM) 28
    MAXIMUM AIR PRESSURE (BAR) 7
    MAXIMUM AIR PRESSURE (KPA) 700
    MAXIMUM AIR PRESSURE (PSI) 100
    MAXIMUM CYCLE RATE (CPM) 400
    MAXIMUM FLOW RATE (GPM) 15
    MAXIMUM FLOW RATE (L/MIN) 56.8
    MAXIMUM FLUID PRESSURE (BAR) 7
    MAXIMUM FLUID PRESSURE (KPA) 700
    MAXIMUM FLUID PRESSURE (PSI) 100
    MAXIMUM OPERATING TEMPERATURE (°C) 82
    MAXIMUM OPERATING TEMPERATURE (°F) 180
    MAXIMUM SOLID SIZE (CM) 0.2383
    MAXIMUM SOLID SIZE (IN) 0.09375
    MAXIMUM SOLID SIZE (MM) 2.383
    MINIMUM OPERATING TEMPERATURE (°C) 4
    MINIMUM OPERATING TEMPERATURE (°F) 40
    MODEL Husky
    OVERALL HEIGHT (IN) 10.63
    POWER SOURCE Air
    SEAT MATERIAL Acetal
    SERIES 515
    WEIGHT (LB) 7.8
    MAXIMUM FLUID PRESSURE (MPA) 0.7
    MAXIMUM AIR PRESSURE (MPA) 0.7
