GRACO IM35 and IM60 High-Flow In-Line Meters
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
IM35 and IM60 in-line meters track bulk fluid dispenses at up to 132 L/min (IM35) and 227 L/min (IM60) with an accuracy of plus or minus 0.5%. The oval gear design is IP69K rated for outdoor use on service trucks, lube bays and mine sites.

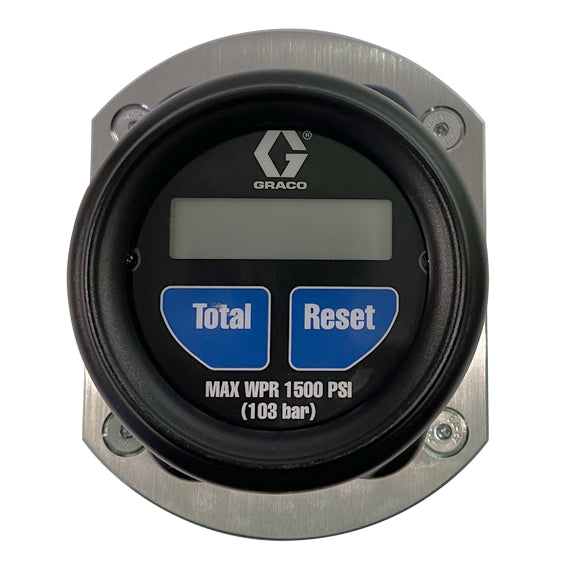

Digital display models run on 2 x AAA batteries and show the dispense on the meter. Pulse output models need no batteries and connect to Pulse Pro, Pulse Asset, Pulse Universal controllers or a PLC. Aluminium models suit oil, ATF, gear lube, coolant and diesel; stainless steel IM35 models add DEF (AdBlue) and water.
Features
Features
- IM35 up to 132 L/min (35 gpm), IM60 up to 227 L/min (60 gpm)
- Accuracy plus or minus 0.5%
- IP69K rated sealed electronics for outdoor use
- Pulse output: 2-wire square wave, PNP and NPN compatible
- Stainless steel IM35 for DEF (AdBlue) and water
- Operating temperature -30 to 82 C
Specifications
| ACCURACY | +/- 0.5% |
| MAXIMUM WORKING PRESSURE | 1,500 psi (103 bar) |
| INLET / OUTLET (ALUMINIUM) | 1 in (IM35), 1-1/2 in (IM60) |
| INLET / OUTLET (STAINLESS) | 3/4 in BSPP |
| FLUIDS (ALUMINIUM) | Oil, ATF, gear lube, antifreeze, coolant, diesel |
| FLUIDS (STAINLESS) | DEF (AdBlue), water |
| PULSER OUTPUT | 2-wire square wave, PNP and NPN compatible |
| PRESSURE LOSS | 5 psi at 30 gpm diesel, 16.4 psi at 30 gpm oil |
| POWER | 2 x AAA batteries (digital display models only) |
| OPERATING TEMPERATURE | -30 to 82 C |
