The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

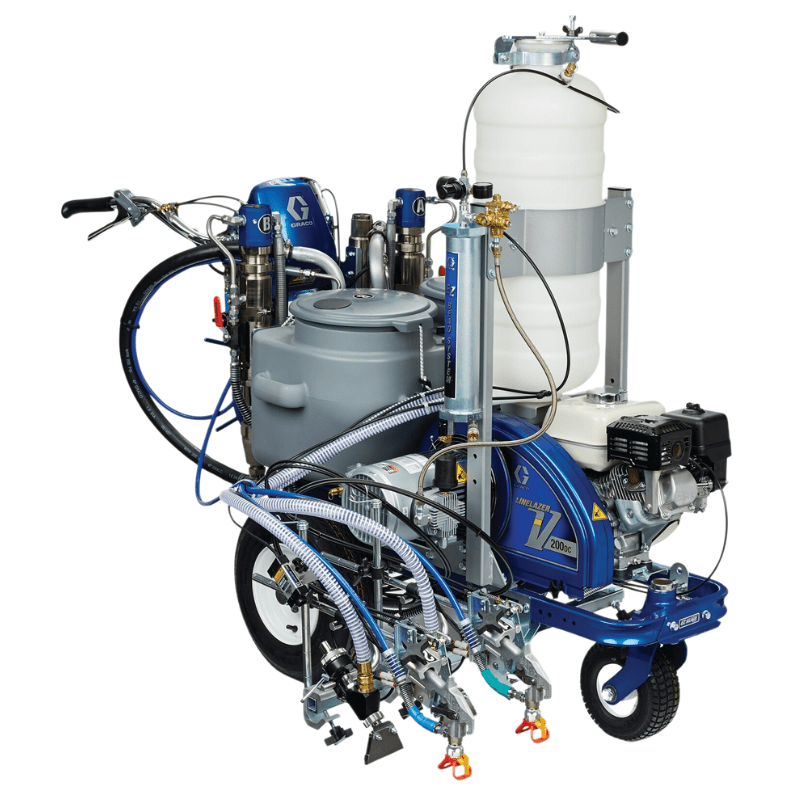

GRACO LineLazer V 200DC HP Reflective Series Dual Colour Line Striper with PBS Tank
SKU 17Y233
$62,400.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines, while spending less time refilling materials.
Features
Features
Pressurized EZ Bead System
- Superior bead application performance
- Ensures proper bead flow and paint penetration
- Hose clogging eliminated — desiccant air filter removes moisture
- Large volume bead tank holds up to 120lbs
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
Live Look Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Dual Color Capable
- Two Units in One
- No need for separate “yellow” and “white” machines
Large, Dual 10-Gallon Hoppers
- Less Refilling
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- Proven no-stall design
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Additional Features
- EasyMark Gun Adjustment System
- EZ Align Wheel System
- DualComfort Handlebar System
- Endurance Chromex Pump
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | Manual, Automatic |
| INCLUDES | LineLazer RAC 5 319, LineLazer RAC 5 421, 2 flexibles souples airless BlueMax II 3/8 po. x 3 pi, TSL 4 oz, Pistola Flex Plus (2) |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 85.5 |
| MAXIMUM TIP SIZE (CM) | 0.0838 |
| MAXIMUM TIP SIZE (IN) | 0.033 |
| MAXIMUM TIP SIZE (MM) | 0.8382 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | Two Colors |
| NUMBER OF GUNS | 2 |
| NUMBER OF HOPPERS | 2 |
| NUMBER OF PUMPS | 2 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 174.63 |
| OVERALL LENGTH (IN) | 68.75 |
| OVERALL LENGTH (MM) | 1746.25 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| PUMP TYPE | Endurance |
| SERIES | 200DC |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 223 |
| WEIGHT (LB) | 492 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| BEAD TANK SIZE (LB) | 120 |
| PRODUCT SERIES | HP Reflective |
