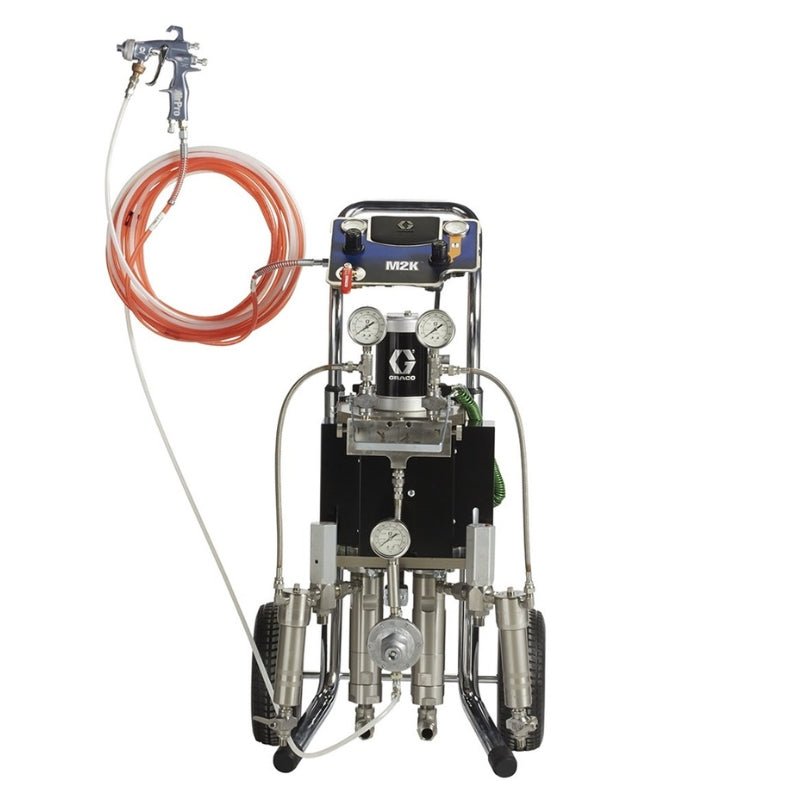

GRACO M2K 2:1 Plural Component Air Sprayer
Regular price
From $20,790.00 AUD
Sale price
From $20,790.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
Air Controls
- Easily adjust fluid and air pressure to get the spray pattern you want.
Pump Air Motor and Lowers
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
Mix Module
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Graco M2K 2:1 Plural Component Air Sprayer
Overview
The M2K is an easy to use proportioning system that has all you need in one small package. This fixed ratio machine keeps your mix ratio consistent while only mixing what you use. Plus it eliminates all of the wasted material and cleanup associated with hand mixing – saving you precious time and money
M2K Air Spray is ideal for low-pressure applications where a high-quality finish is required.
- Easily adjust fluid and air pressure to get the spray pattern you want.
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Specifications
| SKU | 24V869 | 24V875 |
| INCLUDES | AirPro Gun, Standard Mix Manifold | Standard Mix Manifold |
| MAXIMUM FLOW RATE (GPM) | 0.8 | 0.8 |
| MAXIMUM FLOW RATE (L/MIN) | 3 | 3 |
| MAXIMUM HOSE LENGTH (FT) | 25 | - |
| MAXIMUM HOSE LENGTH (M) | 7.5 | - |
| MAXIMUM WORKING PRESSURE (BAR) | 15 | 15 |
| MAXIMUM WORKING PRESSURE (KPA) | 1500 | 1500 |
| MAXIMUM WORKING PRESSURE (PSI) | 225 | 225 |
| SPRAY GUN TYPE | AirPro | - |
| WEIGHT (KG) | 71.7 | 57.6 |
| WEIGHT (LB) | 158 | 127 |
| WETTED MATERIAL | Graphite-Filled PTFE, PTFE, PEEK, Nylon, Stainless Steel, Tungsten Carbide, UHMWPE | Graphite-Filled PTFE, PTFE, PEEK, Nylon, Stainless Steel, Tungsten Carbide, UHMWPE |
| SPRAY TYPE | Air Spray | Air Spray |
| MIX RATIO | 2:01 | 2:01 |
| MOUNT TYPE | Cart Mount | Wall Mount |
| MAXIMUM AIR PRESSURE (BAR) | 7 | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 70 | 70 |
| MAXIMUM AIR PRESSURE (PSI) | 100 | 100 |
| MODEL | M2K | M2K |
| PROPORTIONER TYPE | Mechanical | Mechanical |
| FLUID TO AIR RATIO | 2.6:1 | 2.6:1 |
| FLUID HOSE INSIDE DIAMETER (IN) | 0.25 | - |
| PUMP LOWER A SIZE (CC) | 100 | 100 |
| PUMP LOWER B SIZE (CC) | 50 | 50 |
| TYPE | Air-Powered Sprayer | Air-Powered Sprayer |
| COMPONENT TYPE | Two Component | Two Component |
| GUN ACTIVATION | Manual | Manual |
| MAXIMUM NUMBER OF COLORS | 1 | 1 |
| NUMBER OF COLOR VALVES | N/A | N/A |
| MATERIAL TYPE | Two Component | Two Component |
| PROPORTIONING TYPE | Manual Mechanical | Manual Mechanical |
