Move large amounts of grease fast! Proven Graco NXT technology gives you the best value for the money - fewer parts, faster repairs and long-lasting durability.

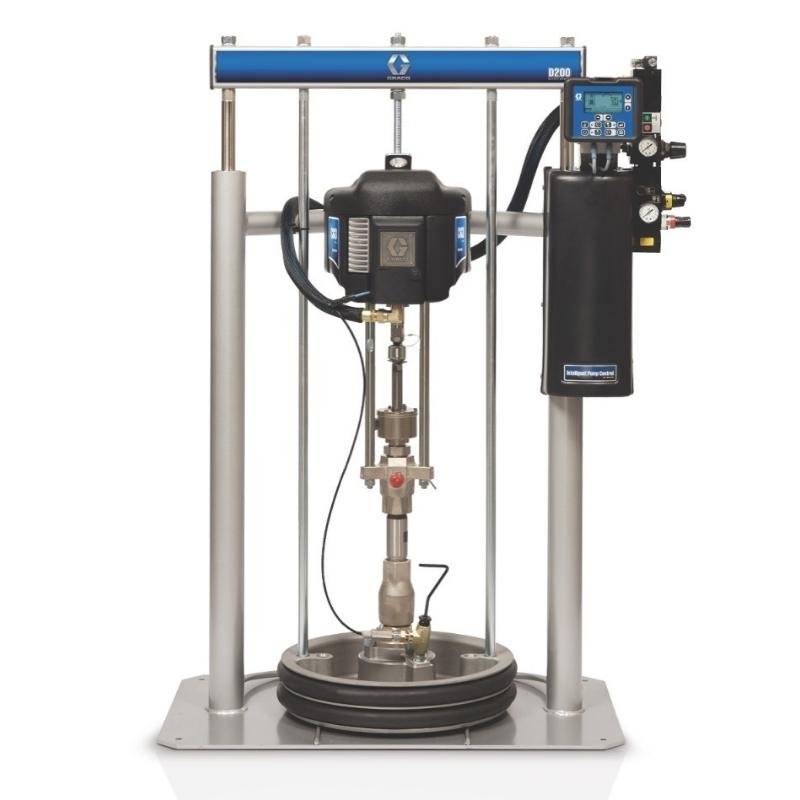

GRACO NXT Check-Mate Grease RAM 14:1 Pump Package with DataTrak
SKU 247979
$36,600.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
- Long-lasting durability - Check-Mate pump is a time-tested, proven performer
- Intuitive, easy-to-use controls give you pump diagnostics to track material usage and plan for routine maintenance
- Reduces icing and noise - The NXT air motor is up to 50% quieter than previous models
- Integrated ram and pump control is easy to use
Features
Features
-
NXT Air Motor
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
-
Integrated Air Controls
- Lockable easy-turn regulator
- Front-mounted for easy access
- Compact and modular
- Built-in filtration
-
Xtreme® Coupler
- Quick-disconnect coupler for easy maintenance
-
Replaceable Outlet Fitting
- Reduces repair costs
-
Piston Valve with Floating Piston Seal
- For maximum pressure balance over a range of material viscosities
-
Replaceable Seat
- Minimizes service costs
Specifications
| UPC Product: 00633955365810 | Industrial |
| Family Code: FAMNXT | Grease |
| Unit of Measure: EA | 3.81 |
| Height: 0 IN | 0 CM | 1-1/2 |
| Length: 0 IN | 0 CM | 38.1 |
| Width: 0 IN | 0 CM | Male |
| Volume: 0 FT3 | 0 M3 | NPT |
| Chargeable Weight: 0 LBS | 0 KG | Pump w/o DataTrak, Floor Stand, Air Hose, Fluid Hose, System Hose |
| Technical Specifications | 179.2 |
| APPLICATION | Industrial |
| COMPATIBLE MATERIAL | Grease |
| FLUID OUTLET SIZE (CM) | 3.81 |
| FLUID OUTLET SIZE (IN) | 1-1/2 |
| FLUID OUTLET SIZE (MM) | 38.1 |
| FLUID OUTLET THREAD GENDER | Male |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | 14:1 Check-Mate Pump with DataTrak, NXT 3400 Air Motor, 500cc Lower, Air Hose, Fluid Hose |
| MAXIMUM WORKING PRESSURE (BAR) | 97 |
| MAXIMUM WORKING PRESSURE (KPA) | 9700 |
| MAXIMUM WORKING PRESSURE (PSI) | 1400 |
| MOTOR TYPE | Pneumatic |
| MOUNT LOCATION | Ram Mount |
| AIR INLET SIZE (IN) | 3/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| WETTED MATERIAL | CS, Leather |
| MAXIMUM AIR WORKING PRESSURE (PSI) | 100 |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 1400 |
| MAXIMUM FLOW RATE (LB/MIN @ 60 CPM) | 57 |
| PUMP WEIGHT (LB) | 86 |
| TYPE | Piston Pump Package |
| MAXIMUM WORKING PRESSURE (MPA) | 9.7 |
| MODEL | Check-Mate |
