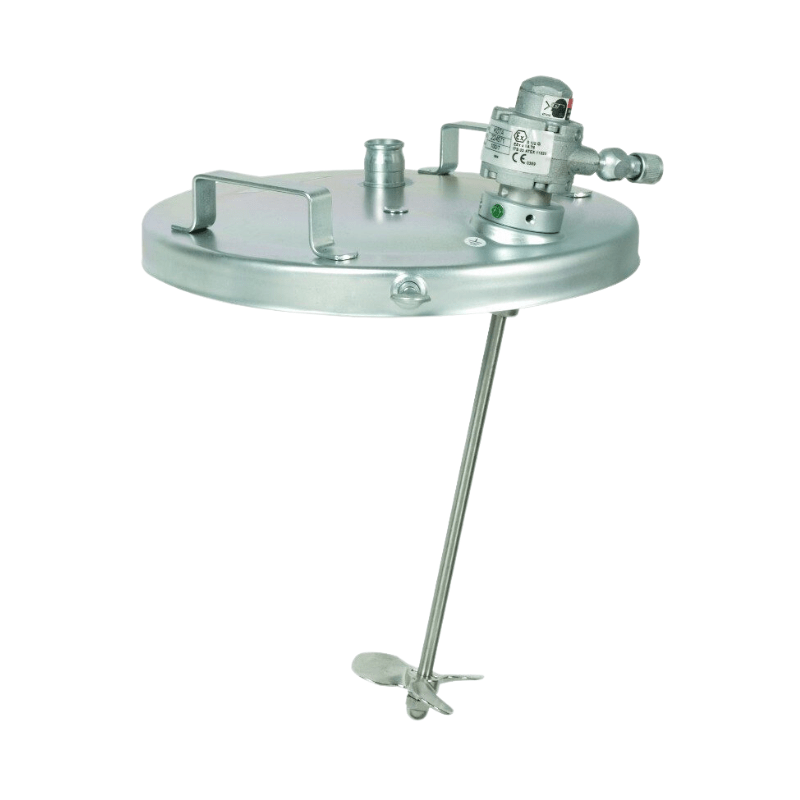

Graco Pail Agitator Range
SKU: 245081
$1,144
Graco Pail Agitator Range
- Stainless steel agitators
- Designed to mix material using buckets and small pails
- Includes a variety of pail and pail cover agitators
- Easy installation
- Ideal for spray packages
- Compatible with a variety of materials
Product Range
- 224571 - Agitator to suit 19L Drums
- 245081 - Agitator Kit to suit Triton 308 Spray Packages
Downloads
 |
Manual |
|
Manual - Agitator Kit for Triton 308 Spray Packages |
Specifications
| Pail Agitators Stainless Steel Agitators | |
| Maximum Working Pressure |
100 psi
|
| Motor power rating |
1/4 HP (187 W)
|
| Air Inlet Size |
1/8 npt(f)
|
| Air Consumption |
2 cfm (0.06m³/min)
|
| Wetted Parts |
Carbon Steel, Stainless Steel
|
| Weight |
5.73 lb
|
| Noise Level at 100 psi (7 bar) at normal load at 800 rpm, Tested to CAGI-PNEUROP–1969 | |
| Pressure |
65.3 dB(A)
|
| Power |
74.2 dB(A)
|
| Noise Level at 100 psi (7 bar) at no load at max rpm, Tested to CAGI-PNEUROP–1969 | |
| Pressure |
87.3 dB(A)
|
| Power |
96.2 dB(A)
|
