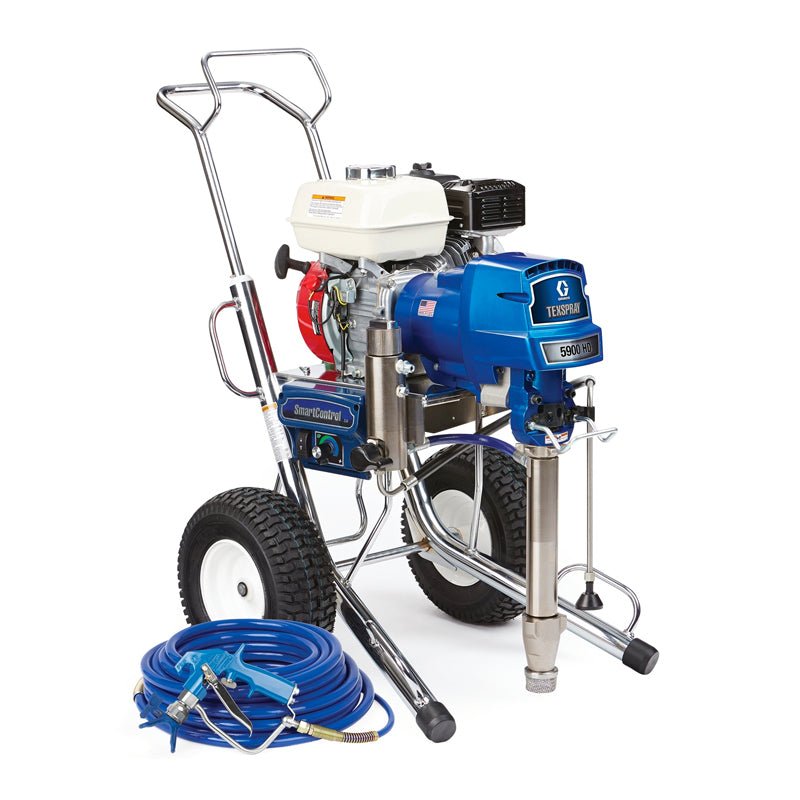

GRACO GMAX II 5900 HD 3-in-1 Standard Series Gas Airless Sprayer
SKU 17E839
$11,364.00
$14,200.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The TexSpray 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility. Spray more square footage in a day and increase your productivity with all texture finishes as well as the wide range of primers and paint.
Features
Features
Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X Longer than the next leading brand
- Long life ceramic and stainless steel balls included for maximum versatility
- Faster cleaning with the QuikAccess intake foot valve
MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
SmartControl 3.0
- Consistent spray fan & pressure control
- Ideal for low overspray applications with the lowest dead band at any pressure
Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
Honda® GX Engine
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Rugged, Durable Cart Design
- Rugged and easy-to-move
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Easy hose storage with integrated hose wrap and telescoping handle
- Easy loading with built-in lift handles
Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
Specifications
| COMPATIBLE REPLACEMENT PUMP | 17H829 |
|---|---|
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 5.5 |
| ENGINE SIZE (KW) | 4.1 |
| FEATURES | Endurance Chromex Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Cart |
| HOSE INLET DIAMETER (CM) | 0.9525 |
| HOSE INLET DIAMETER (IN) | 3/8 |
| HOSE INLET DIAMETER (MM) | 9.525 |
| INCLUDES | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6.06 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.043 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.043 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 5.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.10 |
| POWER RATING (W) | 4101 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II HD |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 98.6 |
| OVERALL HEIGHT (IN) | 38 |
| WEIGHT (KG) | 65 |
| WEIGHT (LB) | 142 |
| OVERALL HEIGHT (MM) | 986 |
| OVERALL LENGTH (CM) | 83.1 |
| OVERALL WIDTH (IN) | 24.4 |
| OVERALL LENGTH (IN) | 32.7 |
| SERIES | 5900 |
| OVERALL LENGTH (MM) | 831 |
| OVERALL WIDTH (CM) | 62 |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | Stainless Steel |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | Chromex |
| NUMBER OF GUNS | 4 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.029 |
| RECOMMENDED ANNUAL USAGE | 100-200 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.023 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.019 |
| PRODUCT SERIES | Standard |
Data Sheet
Manual
- GRACO TexSpray 7900 HD Standard Series Gas Airless Sprayer 17E841 Operations Manual 3A6400EN-B
- GMAX 3400 GMAX II 3900 5900 7900 and 5900 HD 7900 HD Airless Sprayers Manual 3A6417EN-H
- Graco GMAX 3400 GMAX II 3900 5900 7900 and TexSpray 5900HD 7900 HD Airless Sprayer Manuals 3A6418EN-A
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
