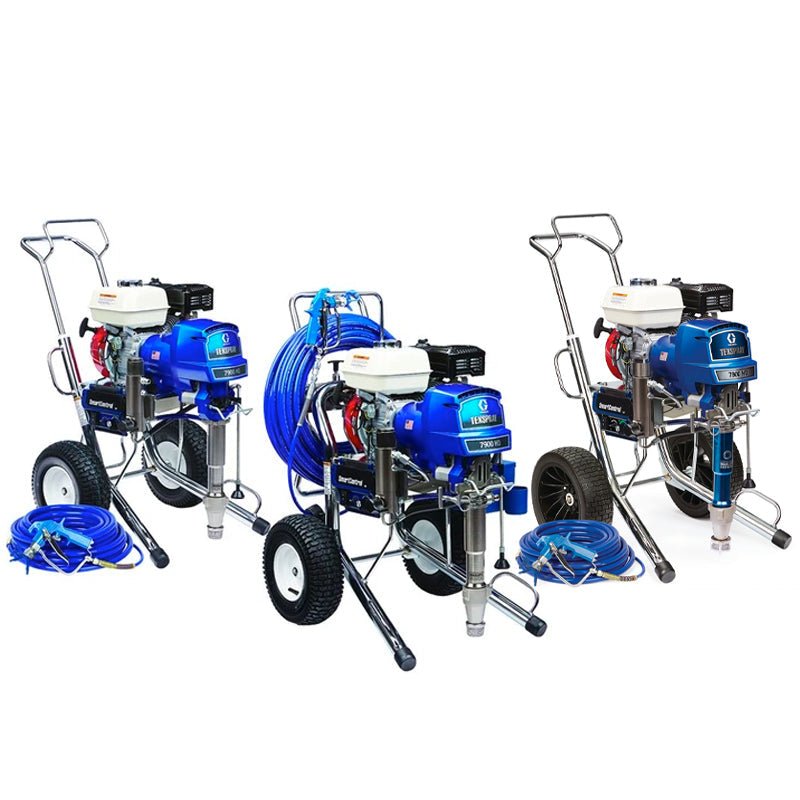

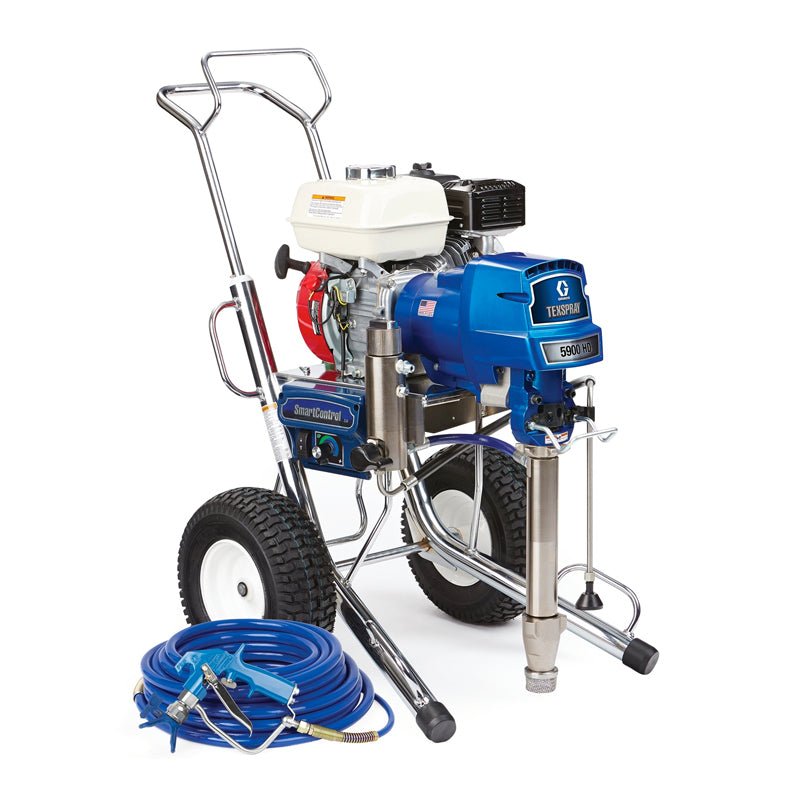

GRACO GMAX II 7900 HD 3-in-1 Standard Series Gas Airless Sprayer
SKU 17E841
$12,853.00
$16,100.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The GMAX II 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.
Features
Features
- Endurance MaxLife Piston Pump
- Lasts 6X longer between repacks
- Features exclusive hardened MaxLife sleeve and rod
- Oversized clearances ensure minimal pressure drop
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- SmartControl 3.0
- Consistent spray fan & pressure control
- Ideal for low overspray applications with the lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Honda® GX Engine
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Rugged, Durable Cart Design
- Rugged and easy-to-move
- Withstands tough jobsite conditions while absorbing impacts and vibrations
- Easy hose storage with integrated hose wrap and telescoping handle
- Easy loading with built-in lift handles
- Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
Specifications
| COMPATIBLE REPLACEMENT PUMP | 25E689 |
|---|---|
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| ENGINE SIZE (KW) | 4.85 |
| FEATURES | Endurance MaxLife Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Cart |
| HOSE INLET DIAMETER (CM) | 0.9525 |
| HOSE INLET DIAMETER (IN) | 3/8 |
| HOSE INLET DIAMETER (MM) | 9.525 |
| INCLUDES | Heavy-Duty Blue Texture Gun, Heavy-Duty Blue 텍스처 건, RAC X LTX 427 喷嘴, RAC X LTX 427 スプレーチップ, RAC X LTX 427 Spray Tip, RAC X LTX 427 스프레이 팁, RAC X LTX 531 喷嘴, RAC X LTX 531 スプレーチップ, RAC X LTX 531 Spray Tip, RAC X LTX 531 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 3/8 英寸 x 50 英尺 BlueMax II 无气软管, 3/8 インチ x 50ft BlueMaxII エアレスホース, 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II 에어리스 호스, 1/4 英寸 x 3 英尺 BlueMax II 无气快接软管, 1/4 インチ x 3ft BlueMaxII エアレス手元ホース, 1/4 in x 3 ft BlueMax II Airless Whip Hose, 1/4 in x 3 ft BlueMax II 에어리스 휩 호스 |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 2.2 |
| MAXIMUM FLOW RATE (L/MIN) | 8.33 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.048 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.048 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II HD |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 102.9 |
| OVERALL HEIGHT (IN) | 40.5 |
| WEIGHT (KG) | 70 |
| WEIGHT (LB) | 153 |
| OVERALL HEIGHT (MM) | 1029 |
| OVERALL LENGTH (CM) | 96.8 |
| OVERALL WIDTH (IN) | 24.4 |
| OVERALL LENGTH (IN) | 38.1 |
| SERIES | 7900 |
| OVERALL LENGTH (MM) | 968 |
| OVERALL WIDTH (CM) | 62 |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 4 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.035 |
| RECOMMENDED ANNUAL USAGE | 100-200 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.027 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.023 |
| PRODUCT SERIES | Standard |
