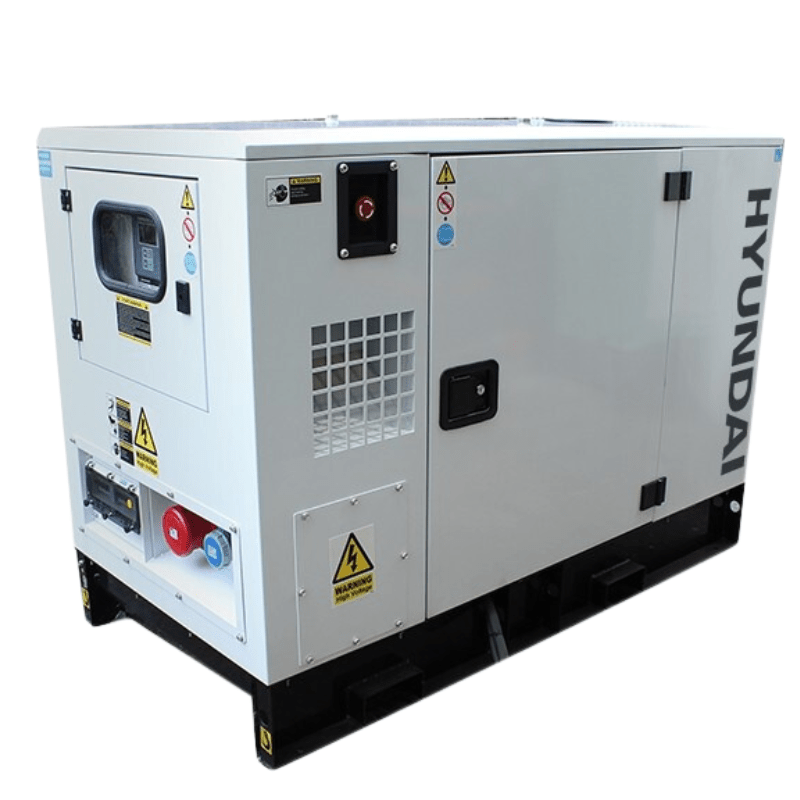

Hyundai DHY11KSE 11kVA Industrial Standby Generator
Overview
The Hyundai DHY11KSE is a three phase diesel generator with a maximum output of 9kW. Designed for domestic or professional use, the DHY11KSE is powered by an 11hp HY380 diesel engine and is equipped an AVR alternator to produce clean energy.
This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY11KSE.
The DHY11KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY11KSE on automatically, and then turn it off again when power returns from the mains.
Housed in a weather-proof “silenced” canopy, the DHY11KSE produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.
The DHY11KSE benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.
Equipped with a 42L fuel tank, the DHY11KSE is a long running standby diesel generator, using just below 2 litres of fuel per hour. Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.
Features
Features
Specifications
| Model | DHY11KSE |
|---|---|
| Rated/Prime kVA* | 10 |
| Rated/Prime kW | 8 |
| Max/Standby kVA* | 11 |
| Max/Standby kW | 8.8 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 1 x 400v 63A 1 x 230v 16A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 16 / 14 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 42 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 68 |
| Noise Level @ 7m 75% load (dB) | 62 |
| Hyundai Diesel Engine Model | HY380 |
| Power Output (kw) | 11 |
| Displacement (CC) | 1360 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.36 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 3.5 |
| Oil Filter Part No. | JX0810Y |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.5 |
| Fuel Filter Part No. | C0506 |
| Cooling | Water |
| Alternator Model | 164B |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Air Filter Part No. | K1317 |
| Net Weight (kg) | 480 |
| Gross Weight (kg) | 480 |
| Dimensions L x W x H (mm) | 1500 x 760 x 1090 |
| Battery System / Starting (V - Ah) | 2X12V - 30Ah |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
| Accessories | - |
| Model EAN | 6090200010101 |
| Product Type | Diesel Generator |
