GO11KSEM 14kVA Hyundai Industrial Standby Generator

SKU DHY11KSEM
Afterpay Zip PayPal LeaseGO
$12,197.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

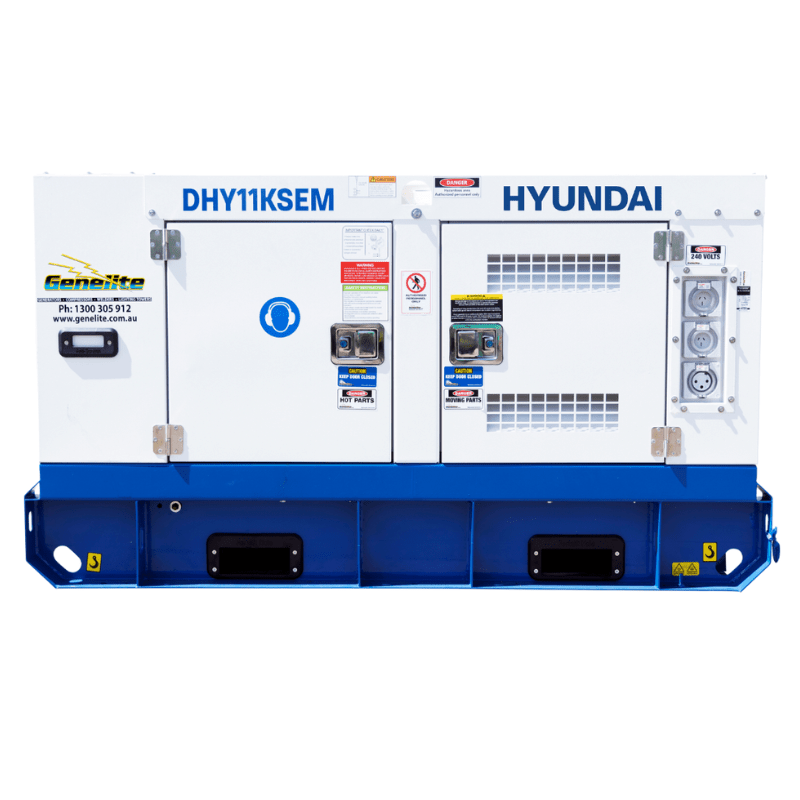

Hyundai DHY11KSEM 14kVA Industrial Standby Generator

Overview

The DHY11KSEm is a powerful single phase standby diesel generator which is designed to provide reliable power to your home or business when the National Grid lets you down. Powered by a 1500rpm Hyundai engine, which gives the machine a longer lifespan due to the lower revs, the DHY11KSEm can produce up to 14kVA.

Equipped with an AVR alternator to produce clean energy, the DHY11KSEm is suited to powering any sensitive electronic equipment in your home or business, such as televisions, video game consoles, computers, laptops and more.

Housed in a “silenced” weather-proof canopy, the DHY11KSEm produces only 65dB @ 7 metres to prevent interrupting you, your family or your workforce when in action.

All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.

Because it can run on red diesel you’ll also find the DHY11KSEm cheap to refuel when it does eventually run low, since red diesel is significantly cheaper than standard road diesel.

For the ultimate user convenience the DHY11KSEm can be paired with an ATS (Automatic Transfer Switch) system which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off. This is ideal for those who need to guarantee constant power, for example if you run servers or have refrigeration units.

Features

Features

  • Single-phase diesel generator: Produces up to 14kVA of backup power and 12.5KVA of prime power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 66dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Specifications
    Model DHY11KSEm
    Rated/Prime kVA* 12.5
    Rated/Prime kW 10
    Max/Standby kVA* 13.75
    Max/Standby kW 11
    Phase Single
    Voltage 230
    Connection Method(s) 1 x 230V/32A 1 x 230V/63A
    Rated Speed (RPM) 1500
    Frequency (Hz) 50
    Max/Continuous Current (Amps) 47.8 / 43.5
    Power Factor (Cosφ) 1
    Fuel/Power Source Diesel
    Fuel Tank (Litres) 46
    Runtime (Hours) @ 100% Load 12.11
    Noise Level @ 1m 75% load (dB) 62
    Noise Level @ 7m 75% load (dB) 62
    Hyundai Diesel Engine Model HY390
    Power Output (kw) 13
    Displacement (CC) 1815
    No. of Cylinders 3
    Displacement (Litres) 1.815
    Recommended Oil Type SAE 15W40
    Oil Capacity (Litres) 3.5
    Oil Filter Part No. JX0810Y
    Aspiration Natural
    Fuel Regulation/Governor System Mechanical
    Fuel Consumption (100% Load) [Litres] 3.8
    Fuel Filter Part No. CX0708
    Cooling Water
    Alternator Model 164C
    Breakers 2P C63A 100mA
    Alternator Type Brushless
    Voltage Regulation AVR
    Air Filter Part No. K1317
    Net Weight (kg) 655
    Gross Weight (kg) 655
    Dimensions L x W x H (mm) 1630 x 760 x 1115
    Battery System / Starting (V - Ah) 2x12/30
    ATS / MTS Compatible Yes
    Control Panel ComAp AMF9
    Model EAN 700621496205
    Product Type Diesel Generator
    Data Sheet
