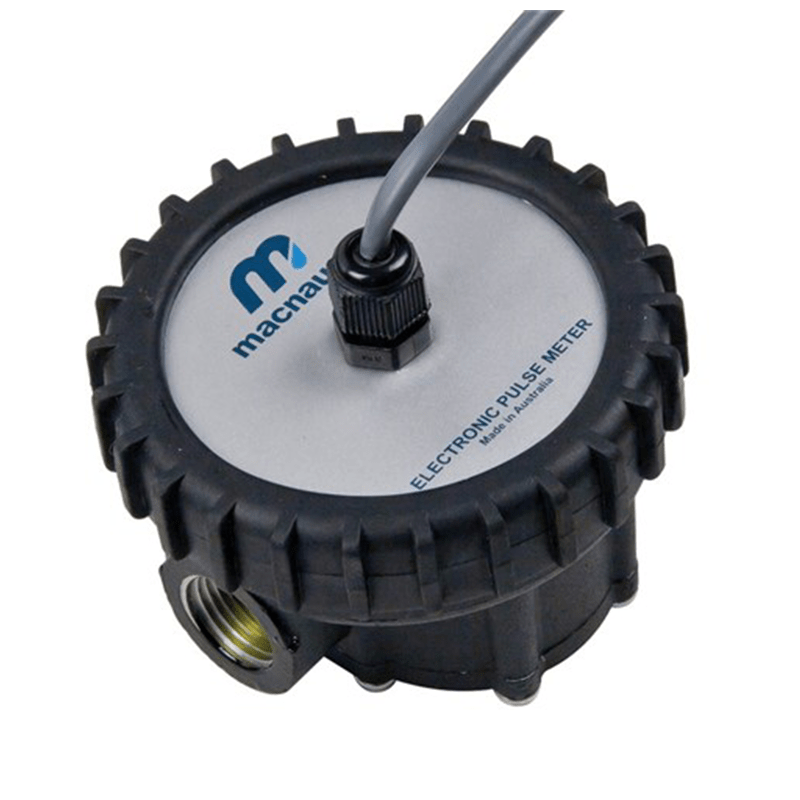

Macnaught 1/2" Pulse Oil Meter

Overview

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 30L/min.

Accuracy is around +/- 0.5% of reading with maximum pressure to 6,900 kPa (1,000 psi). Fly Lead is included to allow connection to other devices. Fitted with 1/2" BSP(F) ports.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Macnaught 1-2 Pulse Oil Meter IM012P-01 Instruction Manual

    Specifications

  • IM012 meter with pulse output only
  • Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
  • Includes 1m y lead either reed switch and/or half effect sensor
  • Flow range up to 1 – 30LPM
  • Accurate reading to +/- 0.5% with maximum pressure to 6,900kPa (1,000psi)
  • 1/2” BSP(F) inlet/outlet ports
