MACNAUGHT High Flow Oil Control Gun
SKU HG100-019E-01
$1,572.73
ex GST · $1,730.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details

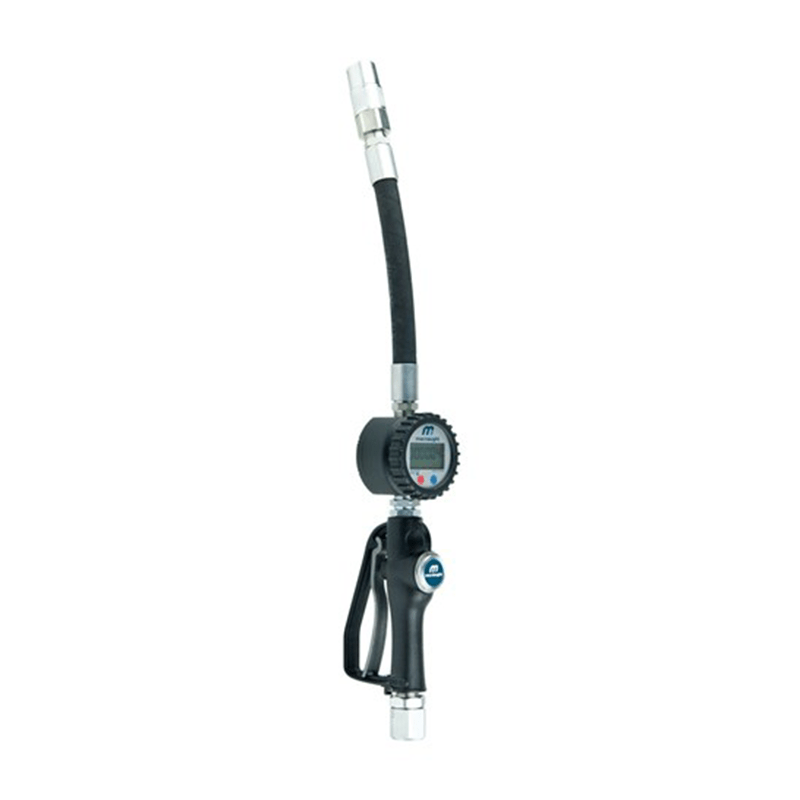

The HG100 is a high volume oil control gun with a digital oil meter, flexible extension and manual non-drip nozzle.
Features
- Digital Bulk Metering: The IM019E meter reads out rate of flow as well as resettable and non-resettable totals, which suits bulk deliveries.
- High-Volume Delivery: Flows up to 56 L/min, sized for mine workshops and large service bays rather than single-vehicle top-ups.
- 1500 PSI Working Pressure: Rated to 105 bar, so it holds up behind high-ratio oil pumps.
- Full-Flow Swivel Inlet: A 3/4 in BSP female swivel passes full flow and stops the hose kinking.
- Trigger Guard And Locking Trigger: Prevents accidental dispensing and holds flow open through a long fill.
- SAE 140 Rated: Handles oils up to SAE 140 viscosity.
Included accessories
Specifications
| METER | Digital IM019E oil meter for measuring bulk fluid deliveries |
|---|---|
| TOTALS | Resettable and non-resettable totals, plus rate-of-flow display |
| ACCURACY | +/- 0.5% |
| MAXIMUM FLOW RATE | 56 L/MIN | 15 US GPM |
| MAXIMUM WORKING PRESSURE | 105 BAR | 1500 PSI |
| INLET | 3/4 IN BSP FEMALE FULL-FLOW SWIVEL |
| OUTLET | 3/4 IN NPT |
| MAXIMUM OPERATING TEMPERATURE | 70 C | 158 F |
| WEIGHT | 1.8 KG | 4.0 LB |
| TRIGGER | Trigger guard and locking trigger |
| WETTED PARTS | Aluminium, mild steel, nitrile rubber |
| OIL RATING | Oils up to SAE 140 viscosity |
