MACNAUGHT High Flow Oil Control Gun Underground Mining
SKU HG100-01-11
$881.82
ex GST · $970.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details

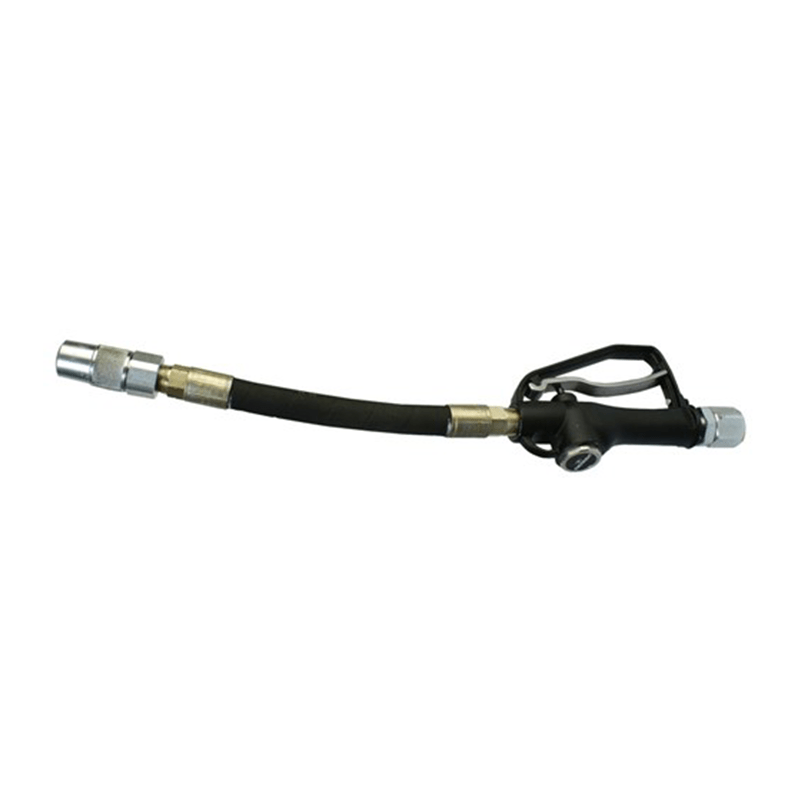

High volume oil control gun with flexible extension and manual non-drip nozzle. Fitted with trigger guard, locking trigger and full flow 3/4" BSP(F) inlet swivel. Up to 10,350 kPa (1500 psi) maximum working pressure. Flow rate up to 57L/min.
Features
- Underground Mining Specification: Built to the variant specification used on underground sites, where equipment has to meet site standards before it goes below.
- High-Volume Delivery: Flows up to 56 L/min, sized for bulk dispensing rather than single-vehicle top-ups.
- 1500 PSI Working Pressure: Rated to 105 bar, so it holds up behind high-ratio oil pumps.
- Flexible Extension And Non-Drip Nozzle: Reaches awkward fill points and closes clean, so you are not chasing drips underground.
- Trigger Guard And Locking Trigger: Prevents accidental dispensing and holds flow open through a long fill.
- Broad Fluid Compatibility: Handles engine oil, gear oil, transmission fluid and anti-freeze up to SAE 140.
Specifications
| MAXIMUM FLOW RATE | 56 L/MIN | 15 US GPM |
|---|---|
| MAXIMUM WORKING PRESSURE | 105 BAR | 1500 PSI |
| MAXIMUM OPERATING TEMPERATURE | 70 C | 158 F |
| SWIVEL INLET | 3/4 IN BSPT OR 3/4 IN NPT |
| OUTLET | 3/4 IN NPT |
| EXTENSION | Flexible, with manual non-drip nozzle |
| WEIGHT | 1.8 KG | 4.0 LB |
| SPECIFICATION | Underground mining variant |
| WETTED PARTS | Aluminium, mild steel, nitrile rubber |
| FLUID COMPATIBILITY | Engine oil, gear oil, automatic transmission fluid, anti-freeze and anti-boil, diesel oil, lubricating oils to SAE 140 |
