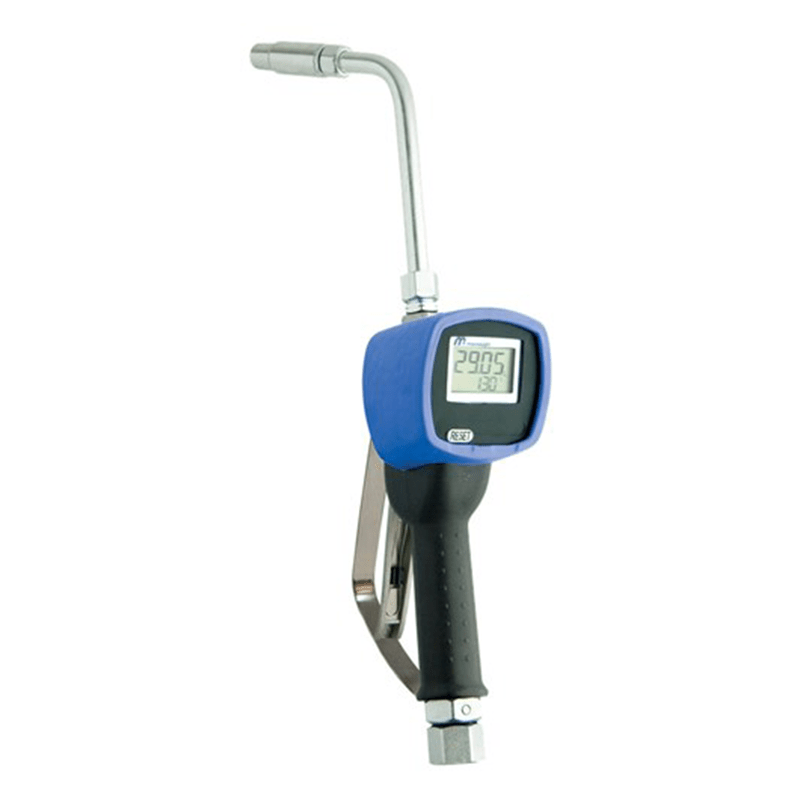

MACNAUGHT Electronic Display Oil Control Gun
SKU HG55-01
$963.64
ex GST · $1,060.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
The Macnaught HG55 is a metered oil control gun with a rigid extension, locking trigger and non-drip nozzle.
Features
- Digital Metering: An electronic display with a 5-digit resettable batch total and a 6-digit accumulative total for stock reconciliation.
- Press-Button Reset: Zero the batch total at the gun without stopping to find a menu.
- Half A Percent Accuracy: Meters lube oils to +/- 0.5 percent of reading.
- Low Pressure Loss: Drops only 1 bar at 12 L/min, so the gun does not choke the pump behind it.
- Swivel Inlet: A 1/2 in BSPT or NPT swivel inlet keeps the hose free as the operator moves.
- Light In The Hand: At 1.16 kg it stays comfortable through a full service bay shift.
Included accessories
Specifications
| TYPE | HG Series oil gun with digital display, totaliser and press-button reset |
|---|---|
| FLOW RANGE | 1 TO 30 L/MIN | 0.26 TO 8 US GPM |
| MAXIMUM SUPPLY PRESSURE | 103.5 BAR | 1500 PSI |
| ACCURACY | +/- 0.5% on lube oils |
| PRESSURE LOSS | 1 BAR | 14.4 PSI at 12 L/MIN, without extension |
| BATCH TOTALISER | 5-digit resettable |
| ACCUMULATIVE TOTALISER | 6-digit accumulative |
| SWIVEL INLET | 1/2 IN BSPT OR 1/2 IN NPT |
| OUTLET | 3/8 IN NPT |
| WEIGHT | 1.16 KG | 2.55 LB |
| OPERATING TEMPERATURE | 0 C TO 50 C | 32 F TO 122 F |
| STORAGE TEMPERATURE | -10 C TO 60 C | 14 F TO 140 F |
| BATTERY | 2 x 1.5 V AA |
| WETTED PARTS | Aluminium, acetal, steel, nitrile rubber |
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
