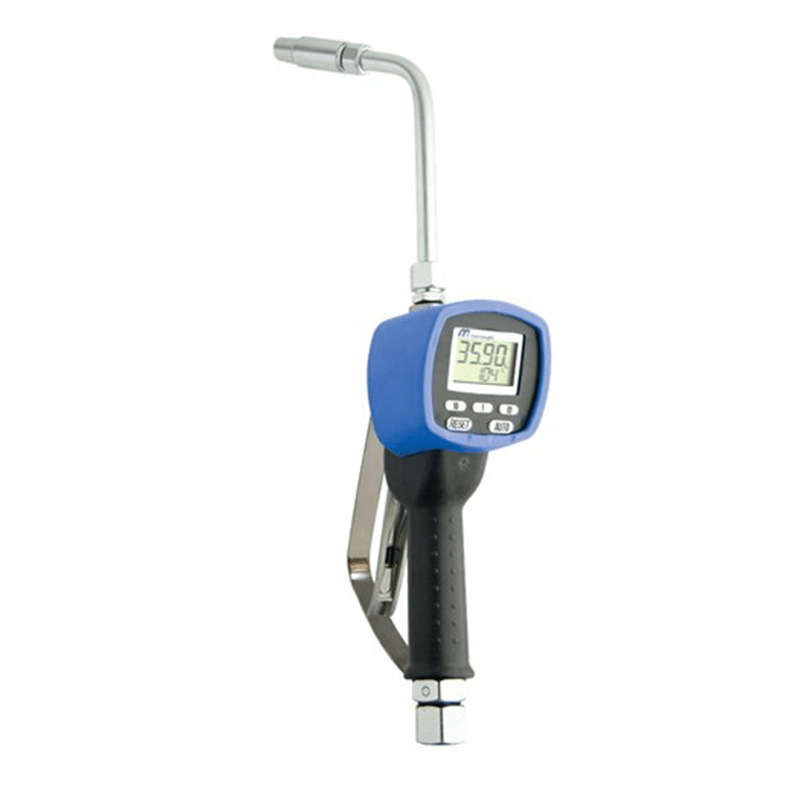

MACNAUGHT Preset Digital Display Oil Control Gun
SKU HG60-01
$1,181.82
ex GST · $1,300.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
The Macnaught HG60 is a presettable metered oil control gun with a rigid extension, locking trigger and non-drip nozzle.
Features
- Preset Dispensing: Set a volume up to 1999.9 L and the gun shuts off on its own when it gets there, so the operator is not standing over it.
- Digital Display: A clear digital readout with a 5-digit resettable batch total and a 6-digit accumulative total.
- Five Memory Settings: Stores five common delivery volumes, so repeat services do not need re-keying each time.
- Viscosity Correction: Self-correcting electronics hold accuracy when oil thickens or thins with temperature.
- Half A Percent Accuracy: Meters lube oils to +/- 0.5 percent, which is close enough to bill from.
- Full-Flow Swivel Inlet: A 1/2 in BSPT or NPT swivel keeps the hose from kinking as the operator works around the vehicle.
Included accessories
Specifications
| TYPE | Top of the range HG Series oil gun with preset digital display and automatic shut-off |
|---|---|
| FLOW RANGE | 1 TO 30 L/MIN | 0.26 TO 8 US GPM |
| MAXIMUM SUPPLY PRESSURE | 103.5 BAR | 1500 PSI |
| ACCURACY | +/- 0.5% on lube oils |
| PRESET | Presettable to 1999.9 L with auto shut-off |
| BATCH TOTALISER | 5-digit resettable |
| ACCUMULATIVE TOTALISER | 6-digit accumulative |
| MEMORY SETTINGS | 5 dispense memory settings for common delivery volumes |
| VISCOSITY CORRECTION | Electronic self-correcting function for viscosity accuracy |
| SWIVEL INLET | 1/2 IN BSPT OR 1/2 IN NPT |
| OUTLET | 3/8 IN NPT |
| WEIGHT | 1.16 KG | 2.55 LB |
| OPERATING TEMPERATURE | 0 C TO 50 C | 32 F TO 122 F |
| BATTERY | 2 x 1.5 V AA alkaline |
| WETTED PARTS | Aluminium, acetal, steel, nitrile rubber |
