MACNAUGHT Rapidflo Rotary Fuel Pump Bio Diesel
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

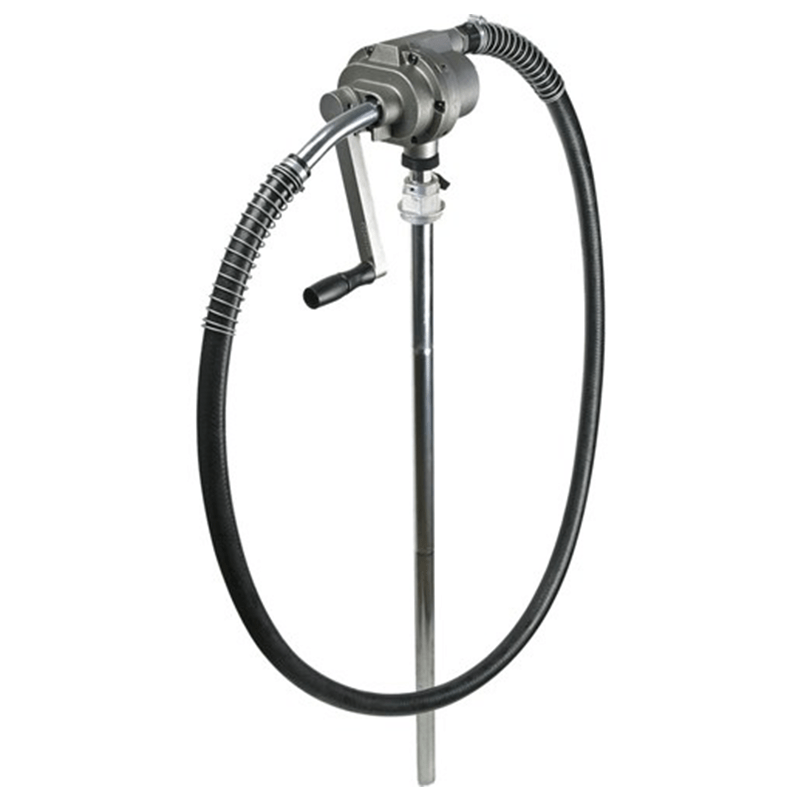

The GT RAPIDFLO Bio-Diesel model is a rotary action fuel and oil pump for 205L drums, supplied with a suction tube, pump handle, 2" bung adaptor, 2.4m anti-static delivery hose and nozzle tube.
Typical output is easily up to 100L/min depending on viscosity. It is suitable for bio-diesel, kerosene and light oils up to SAE 30 viscosity. Rotary pumps allow delivery in both directions and are typically easy to prime.
Features
Rotary Action: Rotary action pump incorporating a gearbox for high output and easy operation, ideal for high volume fuel transfer.
High Output: Delivers 800ml per revolution, able to achieve flow rates up to 100L/min in both directions.
Anti-Static Hose: 2.4m anti-static rubber hose suitable for pumping petrol, diesel, light oils and kerosene.
Strainer: Built-in 193 micron strainer protects your fleet from fuel contamination.
Nozzle Holder: Built-in nozzle holder allows the nozzle to be fixed in a non-siphoning position.
Lockable Handle: Lockable handle for added security when the pump is unattended.
Suction Tube: Three piece suction tube allows the length to be adjusted for different height drums.
Bung Adaptor: Built-in 2" sliding bung adaptor suits different height drums from 60L to 205L.
Aluminium Housing: Robust aluminium housing screwed together for ease of service and maintenance.
Anti-Kink Springs: Prevent the hose from restricting fluid delivery.
Repairable: Fully repairable for a longer service life.
Optional Filter: Optional HA-01 10 micron fuel filter available for extra protection in fuel deliveries.
Optional Nozzle: Optional HNU fuel nozzle available, suitable for transferring ULP and diesel.
Included accessories
Specifications
| Drum Size | 60L to 205L |
|---|---|
| Output | 800ml per revolution (up to 100L/min) |
| Delivery Hose | 2.4m anti-static rubber |
| Pump Outlet | 3/4" BSP threaded |
| Compatible Fluids | Diesel, ULP, kerosene and oils up to SAE30 |
| Wetted Components | Aluminium, steel, zinc, nitrile rubber and viton |
