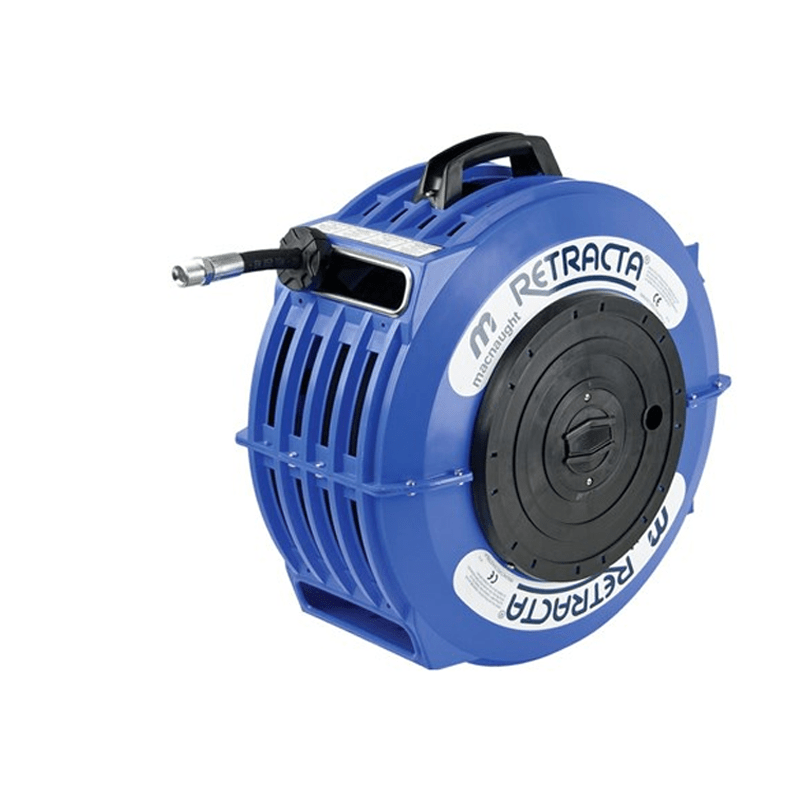

MACNAUGHT Retracta Medium Pressure Oil Reel 10mm x 10m
SKU: OMP2101MACNAUGHT Retracta Medium Pressure Oil Reel 10mm x 10m
Other payment options
Macnaught Retracta Medium Pressure Oil Reel, 10mm x 10
Overview
The RETRACTA OMP2101 Medium Pressure Oil Hose Reel is strong, reliable and ideal for use with 3:1 - 10:1 ratio oil pumps. Constructed using UV polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 10m oil hose assembly and is supplied complete with mounting bracket and carry handle.
reels are the ideal alternative to the conventional metal reels on the market. All Retracta reels include swivel assemblies with premium quality and are fitted with a positive spring latch mechanism allowing the hose to be latched every half .
The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction Retracta reels the ideal choice for both indoor and outdoor use.
The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.
Details
Package Includes
- RETRACTA OMP2101 medium pressure oil hose reel
- Carry handle
- Locking plate
- BU100 mounting bracket and pin
- Instruction manual
Repair Kits
- RP35-BLACKS: Drum assembly
- BS115VS: Vitron O'Ring set (for air/water & oil reels)
- RP114A-BLACKS: Latching side plate set
- Z10S: 10mm hose stopper
- Z40S: 12mm hose stopper
- Type: Medium pressure oil hose reel
- Hose ID: 10mm
- Length: 10m
- Maximum working pressure: 1,000psi (6,900kPa)
- Hose material: reinforced rubber (SAE100R1)
- Reel color: Blue
- Hose color: Black
- Reel Inlet: 3/8” BSPT (F)
- Hose outlet: 1/2” BSPT (M)
- Weight: 13kg
- Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
- 10 Year limited warranty
- Impact resistant - Maximum strength for a long service life
- Vertical rib design - For increased strength
- Precision machined swivels - Leak free and smooth operation
- Screwed together - Easily repaired and maintained
- Sealed and lubricated main spring - Virtually maintenance free service life
- Spring latch mechanism - Allows the reel to be fitted in any orientation
- Stainless steel mouth guard - Protects hose and reel casing against wear
- Easy side plate removal - Easy to maintain reel without removal from installation
- Lightweight & portable - Weighs only 13kg
- Spare parts are available
Specifications
Features
Shipping & Returns
Add text about your shipping policy
Shipping & Returns
Add text about your shipping policy
Warranty
Add text about your product warranty
Warranty
Add text about your product warranty
Secure Payment
Add text about your payment
Secure Payment
Add text about your payment
Delivery & Shipping
MACNAUGHT Retracta Medium Pressure Oil Reel 10mm x 10m
Details
Package Includes
- RETRACTA OMP2101 medium pressure oil hose reel
- Carry handle
- Locking plate
- BU100 mounting bracket and pin
- Instruction manual
Repair Kits
- RP35-BLACKS: Drum assembly
- BS115VS: Vitron O'Ring set (for air/water & oil reels)
- RP114A-BLACKS: Latching side plate set
- Z10S: 10mm hose stopper
- Z40S: 12mm hose stopper
Features
Macnaught Retracta Medium Pressure Oil Reel, 10mm x 10
Overview
The RETRACTA OMP2101 Medium Pressure Oil Hose Reel is strong, reliable and ideal for use with 3:1 - 10:1 ratio oil pumps. Constructed using UV polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 10m oil hose assembly and is supplied complete with mounting bracket and carry handle.
reels are the ideal alternative to the conventional metal reels on the market. All Retracta reels include swivel assemblies with premium quality and are fitted with a positive spring latch mechanism allowing the hose to be latched every half .
The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction Retracta reels the ideal choice for both indoor and outdoor use.
The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Warranty
Read our complete warranty terms & conditions here.
Warranty
Read our complete warranty terms & conditions here.
Secure Payment
All our online payment methods are secured.
Secure Payment
All our online payment methods are secured.
- Type: Medium pressure oil hose reel
- Hose ID: 10mm
- Length: 10m
- Maximum working pressure: 1,000psi (6,900kPa)
- Hose material: reinforced rubber (SAE100R1)
- Reel color: Blue
- Hose color: Black
- Reel Inlet: 3/8” BSPT (F)
- Hose outlet: 1/2” BSPT (M)
- Weight: 13kg
- Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
- 10 Year limited warranty
- Impact resistant - Maximum strength for a long service life
- Vertical rib design - For increased strength
- Precision machined swivels - Leak free and smooth operation
- Screwed together - Easily repaired and maintained
- Sealed and lubricated main spring - Virtually maintenance free service life
- Spring latch mechanism - Allows the reel to be fitted in any orientation
- Stainless steel mouth guard - Protects hose and reel casing against wear
- Easy side plate removal - Easy to maintain reel without removal from installation
- Lightweight & portable - Weighs only 13kg
- Spare parts are available
Specifications
Features
-
