Macnaught RETRACTA Medium Pressure Oil Reel, 12mm x 10m OMP2121
  • Macnaught RETRACTA Medium Pressure Oil Reel, 12mm x 10m OMP2121
1 1

MACNAUGHT Retracta Medium Pressure Oil Reel 12mm x 10m

SKU: OMP2121

MACNAUGHT Retracta Medium Pressure Oil Reel 12mm x 10m

$620.50 AUD
$620.50 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Macnaught RETRACTA Medium Pressure Oil Reel, 12mm x 10m OMP2121

MACNAUGHT Retracta Medium Pressure Oil Reel 12mm x 10m

$620.50 AUD
$620.50 AUD
Save $0
Sold out

Details

Package Includes

  • RETRACTA OMP2101 medium pressure oil hose reel
  • Carry handle
  • Locking plate
  • BU100 mounting bracket and pin
  • Instruction manual

Repair Kits

  • RP35-BLACKS: Drum assembly
  • BS115VS:  Vitron O'Ring set (for air/water & oil reels)
  • RP114A-BLACKS: Latching side plate set
  • Z10S: 10mm hose stopper
  • Z40S: 12mm hose stopper

Features

  • 10 Year limited warranty
  • Impact resistant - Maximum strength for a long service life
  • Vertical rib design - For increased strength
  • Precision machined swivels - Leak free and smooth operation
  • Screwed together - Easily repaired and maintained
  • Sealed and lubricated main spring - Virtually maintenance free service life
  • Spring latch mechanism - Allows the reel to be fitted in any orientation
  • Stainless steel mouth guard - Protects hose and reel casing against wear
  • Easy side plate removal - Easy to maintain reel without removal from installation
  • Lightweight & portable - Weighs only 10kg
  • Spare parts are available

    • Macnaught Retracta Medium Pressure Oil Reel, 12mm x 10

    Overview

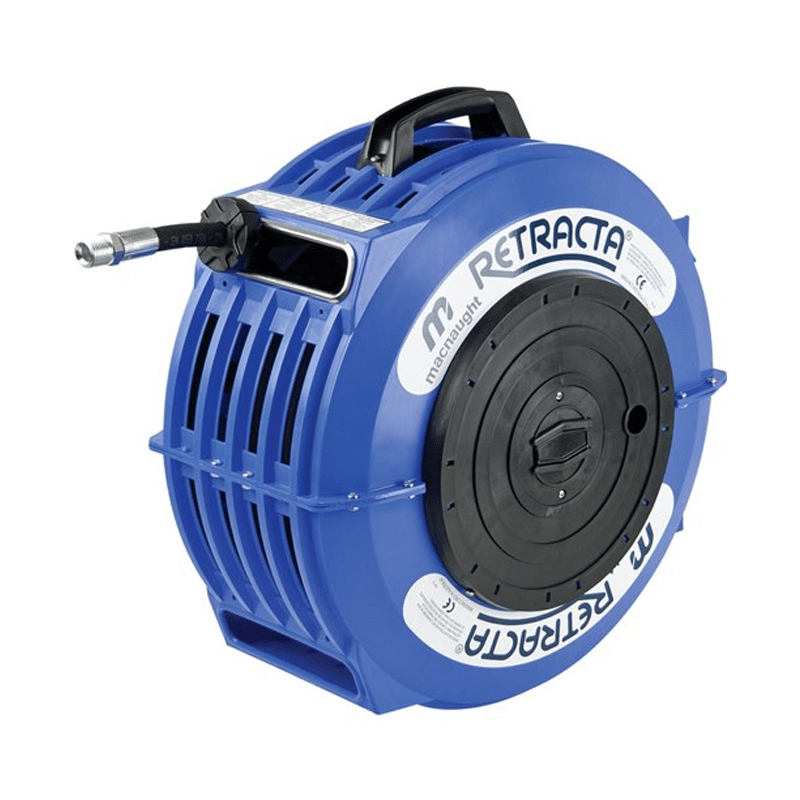

    The High Quality RETRACTA OMP2121 Medium Pressure Oil Hose Reel is strong, reliable hose reel. Constructed using UV stabilised polypropylene, heavy duty rewind spring, quality swivel assembly, 12.5mm x 10m oil hose assembly and is supplied complete with mounting bracket and carry handle.

    Retracta reels are the ideal alternative to the conventional metal reels on the market. All Retracta reels include product specific swivel assemblies with premium quality hoses, and are fitted with a positive spring latch mechanism allowing the hose to be latched every half metre.

    The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction makes Retracta reels the ideal choice for both indoor and outdoor use.

    The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Macnaught RETRACTA Cold Wash Reel 12mm x 15m CW2121 Instruction Manual

    Specifications

  • Type: Medium pressure oil hose reel
  • Hose ID: 12.5mm
  • Length: 10m
  • Maximum working pressure: 1,000psi (6,900kPa)
  • Hose material: reinforced rubber (SAE100R3)
  • Reel color: Blue
  • Hose color: Black
  • Reel Inlet: 3/8"" BSPT (F)
  • Hose outlet: 1/2"" BSPT (M)
  • Weight: 10kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)

      • Features

    • 10 Year limited warranty
    • Impact resistant - Maximum strength for a long service life
    • Vertical rib design - For increased strength
    • Precision machined swivels - Leak free and smooth operation
    • Screwed together - Easily repaired and maintained
    • Sealed and lubricated main spring - Virtually maintenance free service life
    • Spring latch mechanism - Allows the reel to be fitted in any orientation
    • Stainless steel mouth guard - Protects hose and reel casing against wear
    • Easy side plate removal - Easy to maintain reel without removal from installation
    • Lightweight & portable - Weighs only 10kg
    • Spare parts are available
