MACNAUGHT Service Vehicle Oil Reel 12mm x 15m

SKU: MAX1215-01

MACNAUGHT Service Vehicle Oil Reel 12mm x 15m

Regular price $3,164.00 AUD
Sale price $3,164.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
MACNAUGHT Service Vehicle Oil Reel 12mm x 15m - GO Industrial - MAX1215 - 01

MACNAUGHT Service Vehicle Oil Reel 12mm x 15m

Regular price $3,164.00 AUD
Sale price $3,164.00 AUD Regular price
Save $0
Sold out

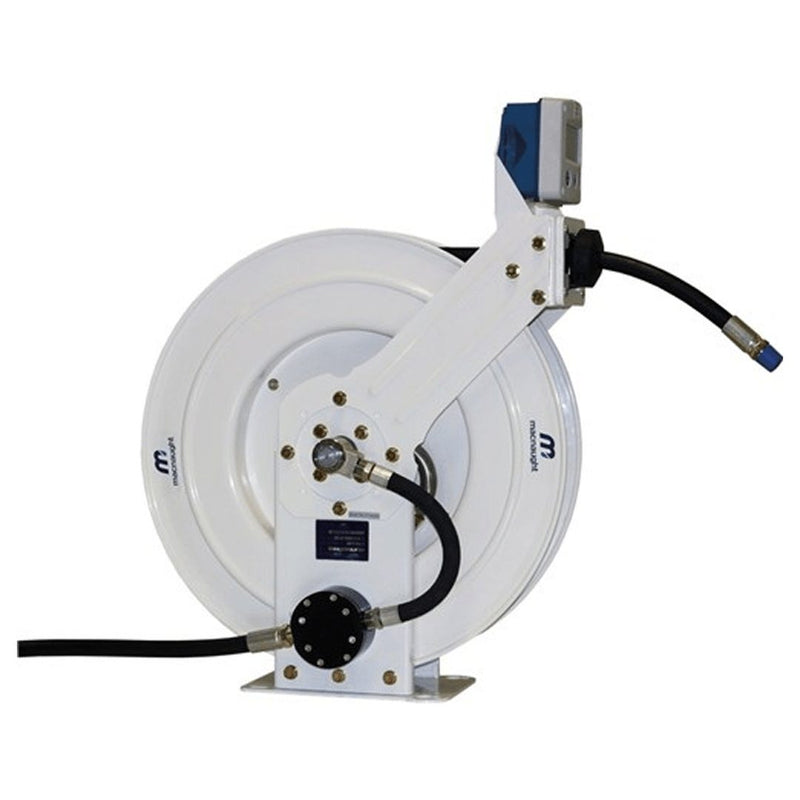

Macnaught Service Vehicle Oil Reel 12mm x 15m

Overview

The MAX reel by Macnaught represents the first hose reel developed worldwide with integrated flow meter and flow register.

The marriage of the brand new MX range of oval gear flow meter products featuring the revolutionary M-Lock mounting system and the equally new MAN narrow face hose reel products offers unparalleled simplicity for OEMs, installers and users alike.

With the MAX range of metered hose reels there is no longer any need for separate mounting of meters, intermediate plumbing or vulnerable wiring between meters and registers.

The reel comes completely fitted and wired to be placed in situ ready to function. The only installation required is bolting the unit down and the connection of the inlet fluids and outlet control.

Although equally at home in static workshop situations,the MAX range of metered hose reels has been specifically designed to meet the rigors of the mobile lube service vehicle.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

  • Nominal Size: 1/2""
  • Fluid Type: Oil
  • Swivel Working Pressure: 1,250psi
  • Flow Range: 3-30L/min
  • Meter accuracy: 0.5%
  • Meter Repeatability: 0.03%
  • Meter seal material: Viton
  • Meter body material: Aluminium
  • Shaft Material: Stainless Steel
  • O'ring Material: Viton
  • Housing Material: Zinc Coated Brass
  • Hose Working Pressure: 1,250psi
  • Hose ID: 1/2""
  • Hose Length: 15m
  • Reel Inlet: 1/2""BSPM
  • Includes 1m feeder hose: Yes
  • Hose Outlet: 1/2""BSP
