Enquire For Price
- DN25 (1") MM BSP Inlet and Outlet
- Supplied with DN25 (1") Socket to facilitate DN25 (1") MF BSP Inlet and Outlet
- Flow Rate - 7-120lpm
- Suitable for use with Diesel
- Accuracy - +/- 1%
- Repeatability - 0.2%
- Rotatable Display
- Technopolymer Body and Gears
- The Piusi K24 is able to be calibrated
- Dimensions - 112.5mm L x 75mm W x 60.5mm H
- Weight - 0.5kg
- Pressure Drop - 0.03 Bar
- Display - Running - 5 Digit 0.1 to 99999
- Display - Totaliser - 6 Digit 1 to 999999
- Working Pressure - 10 Bar (150PSI)
- Batteries - 2 x AAA (included)
- 4 options for volume measurement
- Quarts (Qts),
- Pints (Pts),
- Litres (Lit),
- Gallons (Gal)
- Able to operate in one of two dispensing modes:
- Normal - the meter will display the Running and Totaliser Volumes dispensed
- Flow Rate - the meter will display the Flow Rate of the diesel bewing dispensed and the Running total of the volume of diesel dispensed.
- K24 Meter
- Socket DN25 (1") FF BSP
- Instruction Manual
- 2 x AAA Batteries
What's in the Box

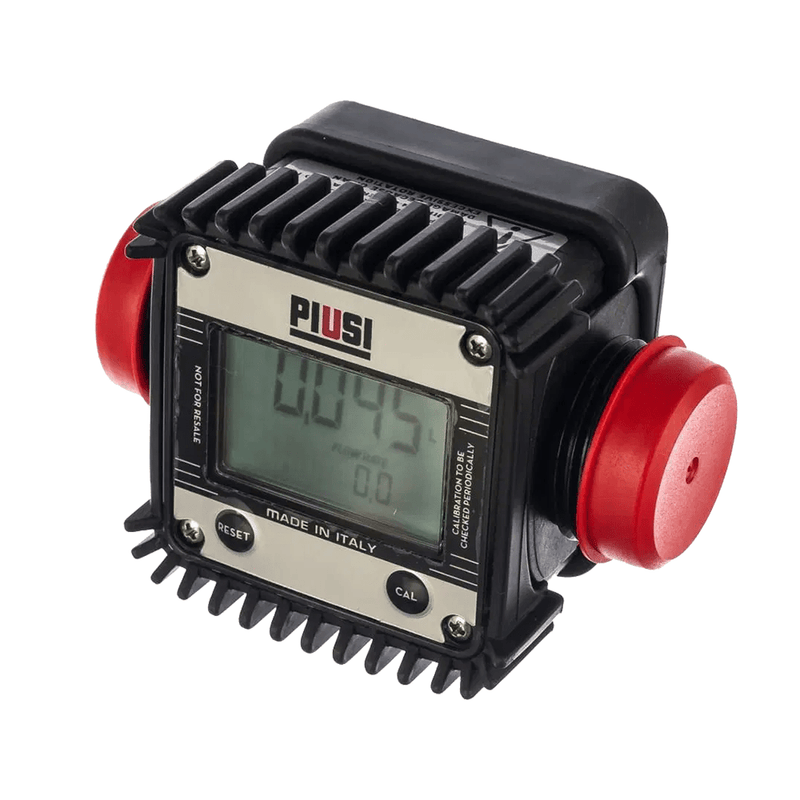

Piusi K24 Digital Flow Meter 7-120lpm F0040700A
SKU: F0040700APiusi K24 Digital Flow Meter 7-120lpm F0040700A
Regular price
$396.00 AUD
Sale price
$396.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
The Piusi K24 F0040700A Digital Flow Meter, from GO Industrial, is a turbine style of meter designed for use in diesel dispensing applications. The Piusi K24 is supplied with a robust yet lightweight Technopolymer Body. The meter can be configured with DN25 (1") MM BSP Thread, or using the supplied socket DN25 (1") MF BSP Thread.
