- Body with aluminium measuring chamber.
- 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
- 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
- Resettable total.
- Repeatability 0.2>
- Loss of pressure <0.5 bar at maximum flow rate
- Flow rate up to 60 l/min
- Accuracy +/- 0.5>
- Maximum operating pressure 70 bar
- Bursting pressure: 140 bar

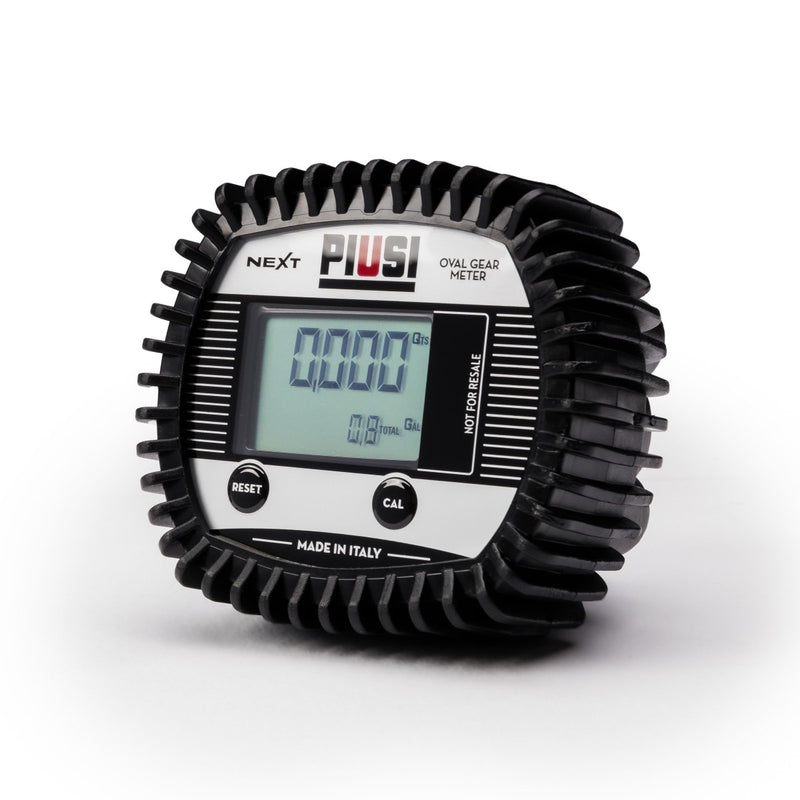

Piusi Next/2 Electronic Flow Meter for Oil
SKU: F00486150Piusi Next/2 Electronic Flow Meter for Oil
Regular price
$550.00 AUD
Sale price
$550.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
NEXT/2 is an oval gear electronic flow meters in acetal resin for controlling non-commercial dispensing of low, medium and high viscosity fluids including Lubricating oils and other special fluids compatible with construction materials.
The PIUSI NEXT/2 meter is an oval gear meter suitable for the delivery of low, medium and high viscosity oils. Its particular size allows the meter to count at high flow rates.
Performance
- up to 60 litres per minute
- 70 BAR maximum pressure
- +/- 0.5% accuracy
- 0.2% repetability
- Body with aluminium measuring chamber.
- 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
- 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
- Resettable total.
- Repeatability 0.2>
- Loss of pressure <0.5 bar at maximum flow rate
- Flow rate up to 60 l/min
- Accuracy +/- 0.5>
- Maximum operating pressure 70 bar
- Bursting pressure: 140 bar
