TRADEQUIP Workshop Fan Misting 650mm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

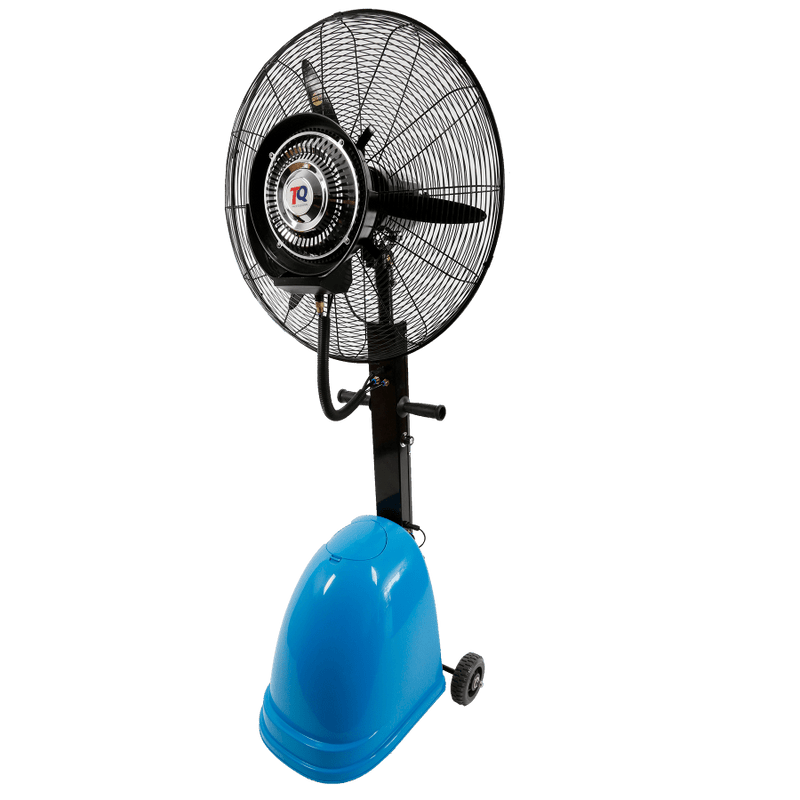

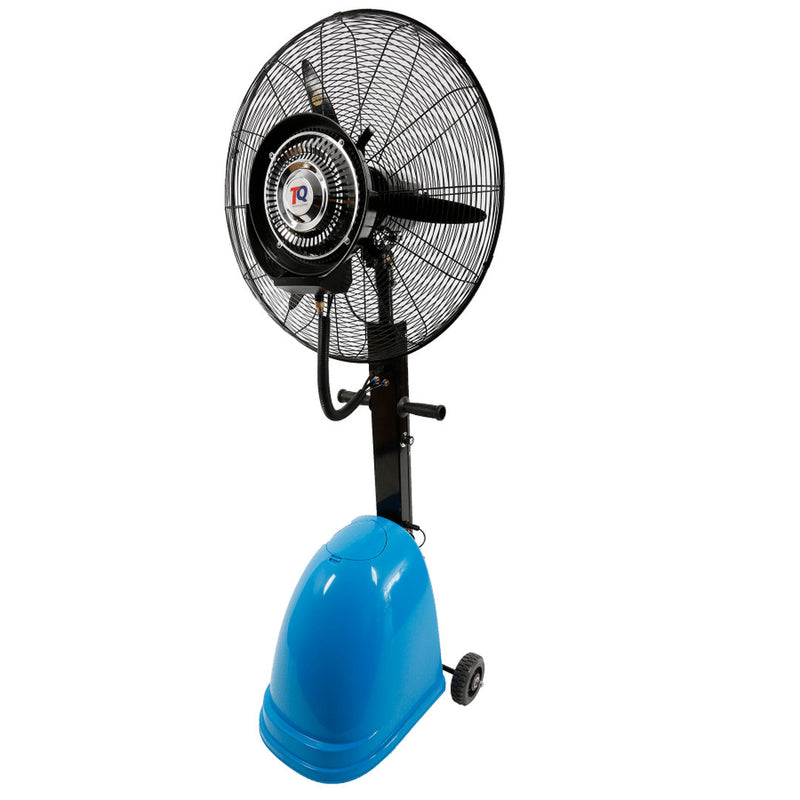

The TradeQuip misting fan pairs an extra strong heavy duty grill with a powerful 240V 260W 3-speed motor and an adjustable oscillating head. Fan-driven evaporation absorbs heat to lower the temperature, improve relative humidity and reduce dust, cooling large areas such as workshops, warehouses and greenhouses over an effective area of around 200 square metres. Its nozzle-less centrifugal misting hub will not clog from hard water, an adjustable dial controls mist volume, and a large integrated water tank with a no-mess drip collector keeps the unit portable. Fixed wheels and lockable castors make it easy to move, and the pump shuts off automatically when the tank runs empty.
Features
Workshop cooling: Ideal for workshops and factory floor areas
Adjustable height: Adjusts to 1.8m with 3-speed operation
Water tank: Large integrated water storage reservoir
Drip collector: No-mess drip water collector
Stable base: Heavy duty base for safety and stability
Portable: Self-contained unit with fixed wheels and lockable castors
Clog-free misting: Nozzle-less centrifugal atomizer hub will not clog
Mist control: Adjustable dial controls misting volume
Reliable pump: Low pressure water pump for longevity
Auto shut-off: Shuts off automatically when the tank is empty
Included accessories
Specifications
| Motor | 240V/50Hz/260W 3 Speed |
|---|---|
| Fan Blade | 650mm Cast Steel 3 Blade |
| Maximum Airflow | 138 cubic metres per minute |
| Maximum Noise | 68dB |
| Oscillation Angle | 90º |
| Fan Tilt | 30º |
| Mist Exit Volume | 0-16kg/Hour |
| Maximum Water Supply | Up to 9 hours |
| Effective Area | 200 square metres |
| Operating Temperature | 10 to 50° Celsius |
| Effective Temperature Drop | 4 to 8° Celsius |
| Operating Humidity | 10% to 85% |
| Atomized Drip Diameter | Less than 10 um |
| Mist Jet Distance | 8 to 10 m |
