GO PSM Pressure Switch Brass Body

SKU: PSM2R14AP

GO PSM Pressure Switch Brass Body

$182.00 AUD
$182.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
Pressure Range

Other payment options

View full details
GO PSM Pressure Switch Brass Body - GO Industrial - PSM2R14AP

GO PSM Pressure Switch Brass Body

From $182.00 AUD
From $182.00 AUD
Save $0
Sold out

Details

Typical Uses Include:

  • Pneumatic
  • Hydraulic
  • Lubrication
  • General Industry

GO PSM Pressure Switch Brass Body

Overview

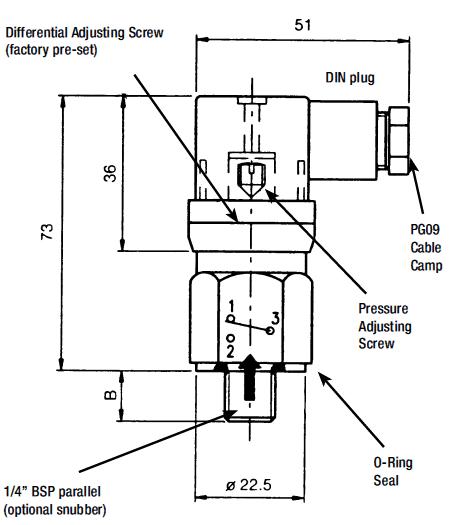

Adjustable pressure switch which are single pole double throw meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parallel thread with an o-ring gasket.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

  • Switching Range ;0.2 to 100 BAR
  • Body ;Plated Steel or Brass
  • Function ;Single Pole Double Throw (SPDT)
  • Voltage ;Multi Voltage (0 to 240v AC/DC)
  • Current ;6 amp resistive and 2 amp inductive
  • Factory Accredited ;CE, ISO 9001, TUV
    • Model Adjustment Range (BAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (BAR) Weight (grams)
    PSM2R14 0.2 – 2 80 Brass NBR No ±0.2 100
    PSM10R14 1-10 80 Brass NBR No ±0.4 100
    PSM2R14APS 0.2-2 300 Pl. Steel NBR Yes ±0.2 100
    PSM10R14APS 1-10 300 Pl. Steel NBR Yes ±0.4 100
    PSM50R14S 10-50 300 Pl. Steel NBR Yes ±2 100
    PSM100R14s 10-100 300 Pl. Steel NBR Yes ±3 100
