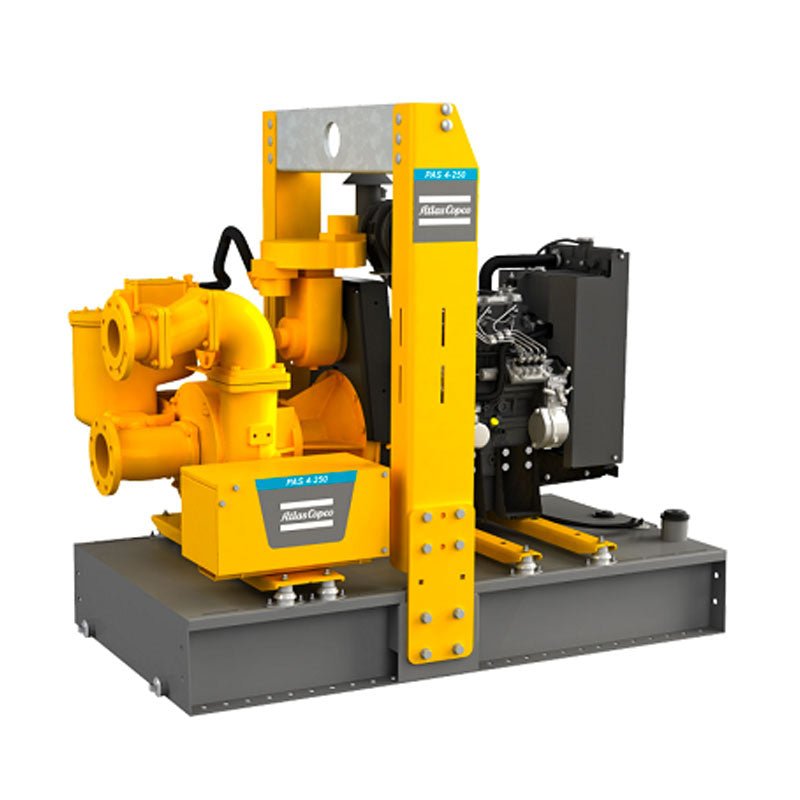

ATLAS COPCO PAS-100MF-260 Centrifugal Pump

SKU PAS-100MF-260

Tax included. Shipping calculated at checkout.

Contact for pricing

No stock main warehouse, contact for lead time

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

The PAS 100MF 260 centrifugal pump has a maximum capacity of 325m³/h, a suction/ discharge of DN100(4″), a maximum head of 42m, a maximum solids of 76 and an air cooled Deutz D2011L031 (ZD51) engine and water cooled Kohler KDI 2504M (KL19).

Features

Pump High efficiency: 70% (B.E.P.)

Rapid "dry" priming: Up to a height of 8.5 m (27.5 ft)

High resistance: To abrasive liquids and turbid sandy waters

Semi-open impeller: Solids handling up to 76 mm (3"")

Easy maintenance: Without lifting devices: hinged cover for direct access to the impeller

Diaphragm vacuum pump: Oil free suitable for dry running: no contamination of the environment

Wear plates: Cast iron (G11 rubber lined) or stainless steel wear plates, that are easily replaceable

Specifications

Maximum Capacity: 325m3/h
Suction/ Discharge: DN100(4"")
Maximum Head: 42m
Maximum Solids: 76
Engine: Air Cooled Deutz/ Water Cooled Kohler
Power: 28.4/24.3kW

Priming System	PAS-100MF-260
Vacuum pump	V20
Vacuum pump type	Diaphragm
Nominal air capacity	50 m³/h (29.4 cfm)
Max vacuum	0,9
Bar Separator type	Superduo
Separator material	EN-GJL-200 cast iron
Drives	Link belt

Pump	PAS-100MF-260
Qmax	540 m³/h - 9.000 l/min (2,400 USgpm)
Hmax	37 m (121 ft)
Q max eff.	340 m³/h - 5.670 l/min (1,500 USgpm)
Eff. max	77 %
Suction port	Flanged - DIN 150
Delivery port	Flanged - DIN 150
Impeller type	Semi-Open, 2 vane
Solids handling	76 mm (3.0
