ATLAS COPCO 1420KVA Industrial Standby Generator
1 1

ATLAS COPCO 1420KVA Industrial Standby Generator

SKU: QIS1420

ATLAS COPCO 1420KVA Industrial Standby Generator

Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.

Other payment options

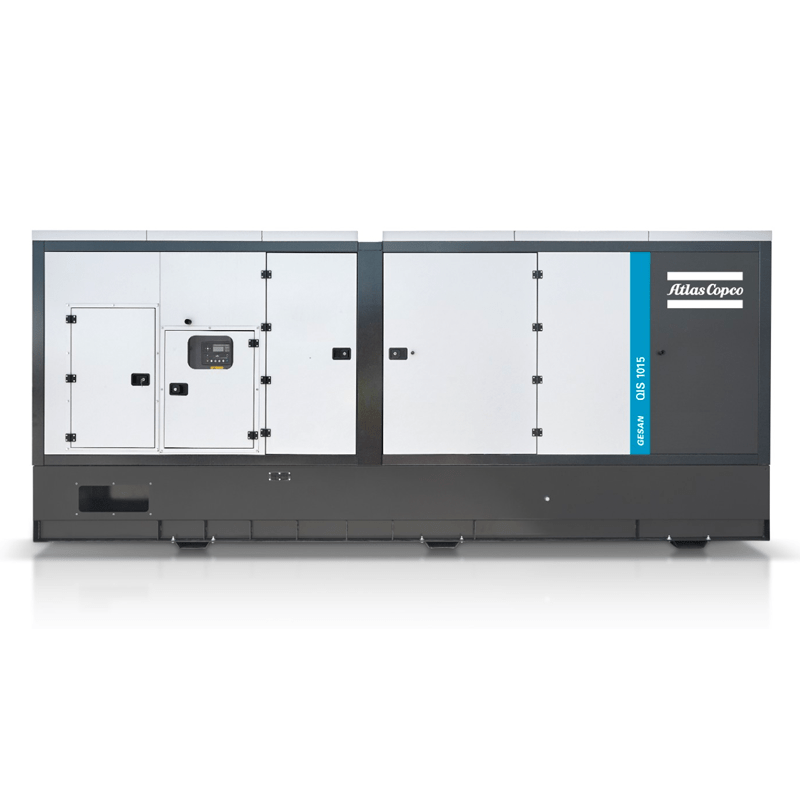

Atlas Copco 1420KVA Industrial Standby Generator

Overview

Atlas Copco's QIS diesel generators combine low cost of ownership, reliable performance and risk-free operation. The QIS range is extremely versatile and can be used in primary or backup power applications. These easy to use diesel generators are designed and built to the very highest standards.

This diesel generator is a suitable alternative to a 1200 kVA generator. The QIS1420 has 1420 kVA of standby power and 180.7 l/h (75% load) fuel consumption. QIS1420 delivers excellent performance with a 25% small footprint and a 13% higher load factor.

The QIS1420 is a compact and easy to install, it is a small diesel generator with big performance and allows you to specify the configuration of your generator through a wide range of useful options. You can customise everything from the power output to the required level of noise suppression.

Details

Integrated Controls and Power Cubicle

  • Qc 2112/2212 AMF (AMF and remote start) digital controller
  • Upgradeable cubicle
  • 4 Pole breaker
  • Emergency stop
  • Battery charger

Superior Accessibility

  • Optimal serviceability through large access doors and panels
  • Access to alternator (AVR and diode bridge)
  • Full access to engine
  • Direct radiator cleaning access panel
  • External drain points access

Installation Efficiency

  • Plug and play cable connection
  • Pass through cable path, natural bend and strain relief
  • Retention bund 110% self containment with level sensor
  • Hot parts, fan and belt protection

Transport Efficiency

  • Integrated lifting structure with single elevation point (Four points lifting above 1115kVA)

Performance

  • High cooling performance radiator with ParCOOL for 100% standby power operation
  • Sound attenuated and rugged galvanised steel enclosure
  • Alternator IP23 with auxiliary winding (300% over-current during 20 seconds) and digital AVR (3 phases sensing and droop kit standard above 400 kVA)
  • Electronic governor engine

Service Efficiency

  • Decreased service downtime due to heavy duty fuel filtration system with water separator
  • Dual stage air filtration
  • Oil drain pump
  • 500 hours service interval
  • industrial-generator-leaflet-english

Specifications

 Electrical Data
Rated Frequency (1) Hz 50
Rated Voltage (2) V 400 | 230
Prime Power (PRP) kW 1016
Rated Standby Power (ESP) kW 1136
Fuel Consumption
Fuel Tank Capacity L 1400
Fuel consumption at 75% PRP Load l/h 180.7
Engine
Model
MTU 18V2000G76F
Speed Control Electronic




    Features

  • High-quality components
  • High working temperature tolerance
  • Easy to transport, install and use
  • Excellent accessibility and superior serviceability
  • Quiet generator
  • Durable rustproof canopy
  • Fuel Filter Separator for optimal performance

Shipping & Returns

Add text about your shipping policy

Shipping & Returns

Add text about your shipping policy

Warranty

Add text about your product warranty

Warranty

Add text about your product warranty

Secure Payment

Add text about your payment

Secure Payment

Add text about your payment

View full details
ATLAS COPCO 1420KVA Industrial Standby Generator

ATLAS COPCO 1420KVA Industrial Standby Generator

Details

Integrated Controls and Power Cubicle

  • Qc 2112/2212 AMF (AMF and remote start) digital controller
  • Upgradeable cubicle
  • 4 Pole breaker
  • Emergency stop
  • Battery charger

Superior Accessibility

  • Optimal serviceability through large access doors and panels
  • Access to alternator (AVR and diode bridge)
  • Full access to engine
  • Direct radiator cleaning access panel
  • External drain points access

Installation Efficiency

  • Plug and play cable connection
  • Pass through cable path, natural bend and strain relief
  • Retention bund 110% self containment with level sensor
  • Hot parts, fan and belt protection

Transport Efficiency

  • Integrated lifting structure with single elevation point (Four points lifting above 1115kVA)

Performance

  • High cooling performance radiator with ParCOOL for 100% standby power operation
  • Sound attenuated and rugged galvanised steel enclosure
  • Alternator IP23 with auxiliary winding (300% over-current during 20 seconds) and digital AVR (3 phases sensing and droop kit standard above 400 kVA)
  • Electronic governor engine

Service Efficiency

  • Decreased service downtime due to heavy duty fuel filtration system with water separator
  • Dual stage air filtration
  • Oil drain pump
  • 500 hours service interval

Features

  • High-quality components
  • High working temperature tolerance
  • Easy to transport, install and use
  • Excellent accessibility and superior serviceability
  • Quiet generator
  • Durable rustproof canopy
  • Fuel Filter Separator for optimal performance

    • Atlas Copco 1420KVA Industrial Standby Generator

    Overview

    Atlas Copco's QIS diesel generators combine low cost of ownership, reliable performance and risk-free operation. The QIS range is extremely versatile and can be used in primary or backup power applications. These easy to use diesel generators are designed and built to the very highest standards.

    This diesel generator is a suitable alternative to a 1200 kVA generator. The QIS1420 has 1420 kVA of standby power and 180.7 l/h (75% load) fuel consumption. QIS1420 delivers excellent performance with a 25% small footprint and a 13% higher load factor.

    The QIS1420 is a compact and easy to install, it is a small diesel generator with big performance and allows you to specify the configuration of your generator through a wide range of useful options. You can customise everything from the power output to the required level of noise suppression.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • industrial-generator-leaflet-english

    Specifications

     Electrical Data
    Rated Frequency (1) Hz 50
    Rated Voltage (2) V 400 | 230
    Prime Power (PRP) kW 1016
    Rated Standby Power (ESP) kW 1136
    Fuel Consumption
    Fuel Tank Capacity L 1400
    Fuel consumption at 75% PRP Load l/h 180.7
    Engine
    Model
    MTU 18V2000G76F
    Speed Control Electronic




      Features

    • High-quality components
    • High working temperature tolerance
    • Easy to transport, install and use
    • Excellent accessibility and superior serviceability
    • Quiet generator
    • Durable rustproof canopy
    • Fuel Filter Separator for optimal performance
