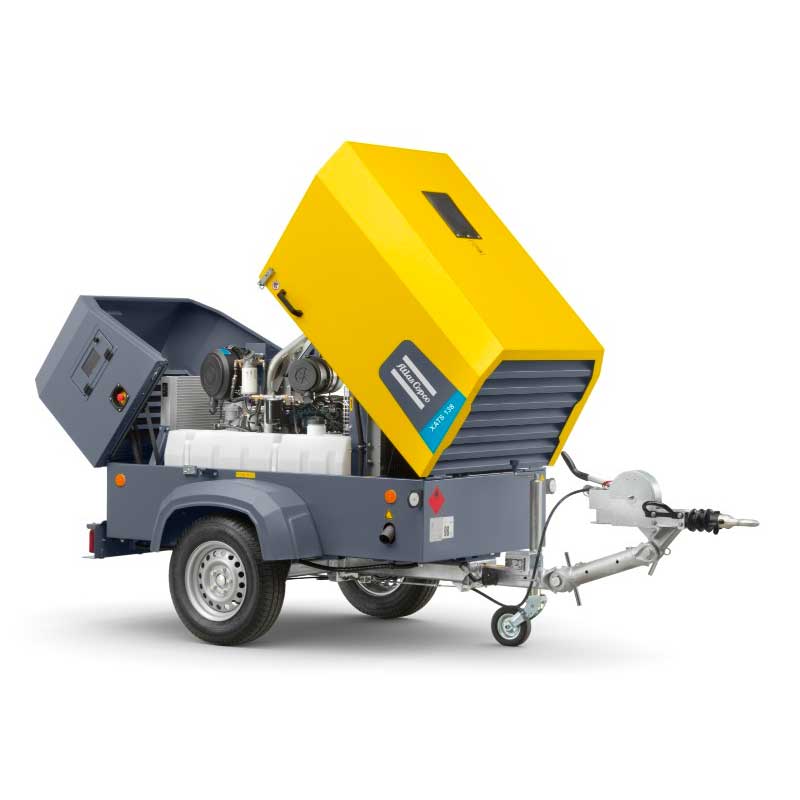

ATLAS COPCO XAS 138 Air Compressor High Capacity 250cfm 102psi Portable Towable

SKU: XAS138

ATLAS COPCO XAS 138 Air Compressor High Capacity 250cfm 102psi Portable Towable

Inclusive of GST. Shipping calculated at checkout.
stock
Available for pre-order only. Delivery lead time to be confirmed.

Other payment options

View full details
Atlas Copco Air Compressor High Capacity XAS 138 250cfm 102psi (G) Portable Towable Range

ATLAS COPCO XAS 138 Air Compressor High Capacity 250cfm 102psi Portable Towable

Details

HardHat Canopy

This legendary canopy was born in 2005. This new version features the latest, toughest design. The HardHat® protects all internal components, keeps the machine looking as good as “new” and increases the residual value.Built and tested to ISO 9001 Quality Assurance Standards.

Simple Interface

Simple control panel gives you a convenient interface to operate the machine easily. The start-up switch provides mechanical safety to protect the starter motor from overheating.

Easy To Move

Lightweight and compact, both models can be easily towed. They are mounted on a single axle, enhancing manoeuvrability on site.

Service Efficiency

The long service intervals and longer life of all consumables reduces costs and increases utilisation. Spin on filters and a spin on oil separator element means you can change all consumables in minutes

Spillage Free Frame

100% guaranteed to contain all fluids. This is not an option – it comes as standard. The 3 layer corrosion protection coating (category C3) extends lifetime and increases residual value.

Engine Performance

Both models are powered by a 4-cylinder mechanical turbo charged engine. This brings you low fuel consumption and high altitude performance.

Features

  • Lowest total cost of ownership
  • Easy to transport
  • Easy to manoeuvre at worksite
  • Easy to use
  • Operator & environmental safe
  • Built to last

    • Features

  • Atlas Copco Had-hat Canopy
  • Simple easy to use interface
  • Easy to move
  • Operator and environmental safety
  • Built to last
  • Spillage free frame
  • Built in accordance to all ISO standards
  • A wide range of options
  • Fuel Efficiency

    • Atlas Copco XAS 138 Air Compressor High Capacity 250cfm 102psi Portable Towable

    Overview

    The Crossover Range

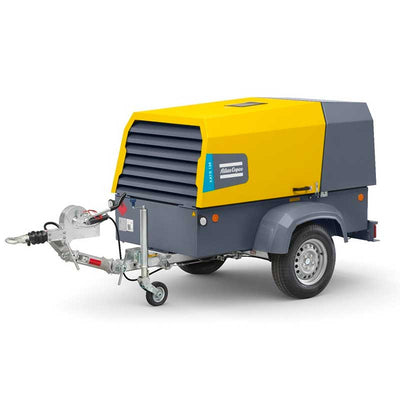

    The XAS 138 and XAHS 108 compressors are known as the “crossover” range.
    This compact, easy to move range offers extra flow with higher levels of efficiency – providing the power to get the job done. Both compressors come with the legendary Hardhat® canopy. This canopy was designed to protect from corrosion, damage and safeguard all the internal components – maximising the resell value of your asset.



    The XAS 138 portable air compressor delivers 250CFM free air delivery and 100psi (g) normal effective working pressure.



    The spin on vessel design ensures it only takes one minute to change the oil separator element. All simple service procedures can be completed in a matter of minutes. Reduce your cost of ownership, improve your efficiency and get a higher return on investment with new crossover compressors range.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Industrial Data Sheet - Atlas Copco XAS138-XAHS108-Brochure

    Specifications

  • Working Pressure: 100psi (g)
  • Free Air Delivery: 250CFM
  • Max Sound Pressure Level at 7m: 98dB(A)
  • Engine: Kubota
  • Fuel tank capacity: 87 L

    • Performance

    Normal effective working pressure

    bar

    7

    Normal Effective working pressure

    psig

    100

    Actual free air delivery

    cfm

    250
    Max. sound pressure level dB(A) 98
    Max. ambient temperature degrees celsius 45
    Min. starting temperature degrees celsius -10
    min. starting temperature (cold start) degrees celsius -20



    Engine

    Make

    Kubota

    Type

    V2403-M-DI-TE2B

    Emission Stage

    Stage 2/Tier 2

    Full Load

    2700 RPM
    Unload 1800 RPM
    Engine Oil 9,5 L
    Compressor Oil 1 L
    Fuel Tank 87 L


    Dimensions

     Length (including. fixed tow bar 3747 mm
    Width 1593 mm
    Height 1572 mm
    Weight 1300 kgs

      Features

    • Lowest total cost of ownership
    • Easy to transport
    • Easy to manoeuvre at worksite
    • Easy to use
    • Operator & environmental safe
    • Built to last

      • Features

    • Atlas Copco Had-hat Canopy
    • Simple easy to use interface
    • Easy to move
    • Operator and environmental safety
    • Built to last
    • Spillage free frame
    • Built in accordance to all ISO standards
    • A wide range of options
    • Fuel Efficiency
