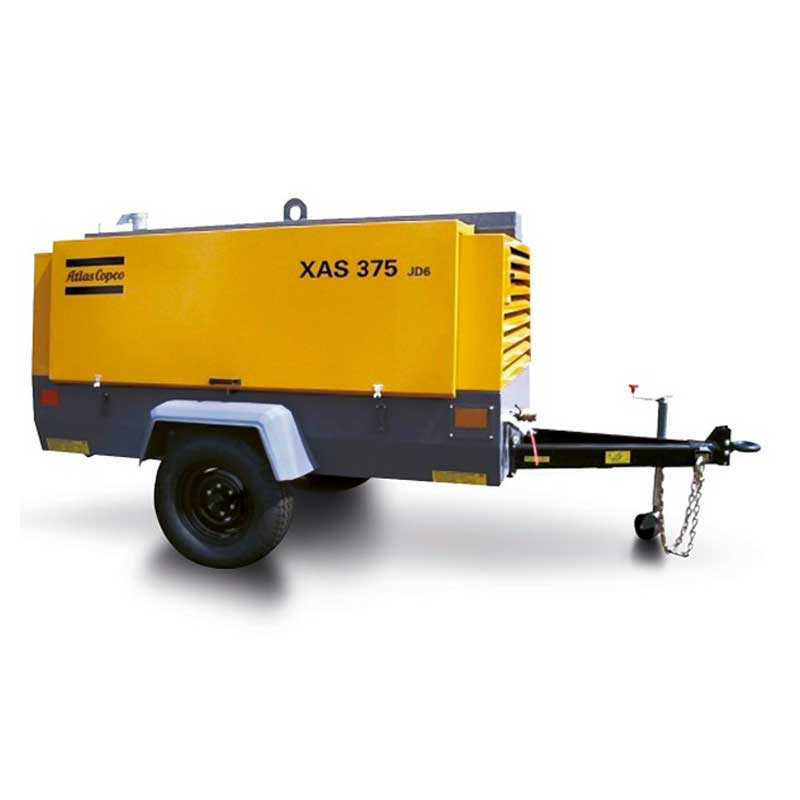

ATLAS COPCO XAS 375 DD6 Air Compressor Portable 392CFM
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Heavy Duty Performer
XAS 340 - 375 range has been specially designed for heavy duty working environments such as the renovation industry (sandblasting) and quarries. They can assist in installing fibre optic cables, or be combined with combinations of pneumatic tools such as rock drills, hammers, to name a few. High altitudes and extremely high and low ambient temperatures are not a problem. Four pressure variants make these units fit for almost any application.
The XA(T,H,V)S 340-375 DD6 range has been specifically designed to perform in the harshest of work environments, and has the reputation for reliability and efficiency. Whether working on renovation projects such as sandblasting, or powering hand held rock-drills in a quarry, the robust construction of these units can withstand rough treatment and ensure long lifetime and high reliability.
The highly efficient screw element is paired with either a COM 2 (C2) or the latest COM 3 (C3) compliant diesel engine ensuring low operating costs and high resale value. Because compressed air is used in such broad range of applications, a wide choice of options is available to satisfy almost any requirement.
Atlas Copco’s fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfil the requirements of ISO 9001 and ISO 14001. Products and services committed to your superior productivity through interaction and innovation.
Features
Features
Specifications
Performance
|
Normal effective working pressure |
bar |
7 |
|
Normal Effective working pressure |
psig |
102 |
|
Actual free air delivery |
cfm |
392 |
| Max. sound pressure level | dB(A) | 99 |
| Max. ambient temperature | degrees celsius | 50 |
Engine
|
Make |
Deutz |
|
Type |
TCD 2012 |
|
Number of cylinders |
4 |
|
Output at rated speed |
82KW |
| Engine Speed (nominal) | 2300 rpm |
| Engine speed (unloaded) | 1700 rpm |
| Capacity oil system | 22L |
| Fuel Tank | 174L |
Dimensions
| Length (including - fixed tow bar) | 4356 mm |
| Width | 1701 mm |
| Height | 1600 mm |
| Weight | 1800 kgs |
Data Sheet
