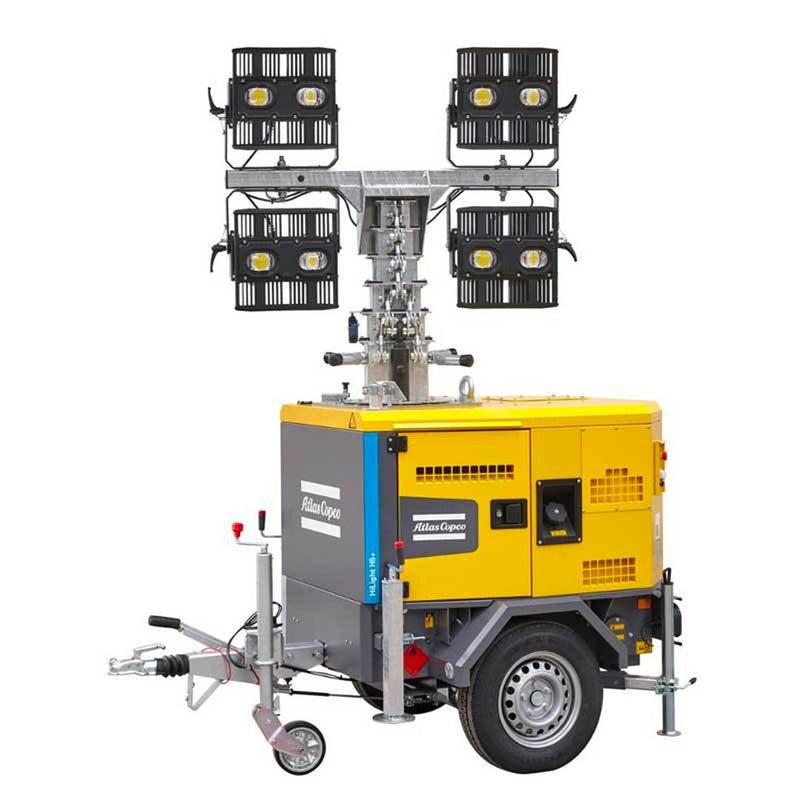

ATLAS COPCO HiLight H5+ LED Light Tower
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Atlas Copco HiLight H5+ LED Light Tower uses directional optic lenses that maximise practical light coverage while minimising dark spots. A single tower can illuminate an area of up to 5000 m2 at an average brightness of 20 lux.
Dedicated power packs optimise the tower's power output and protect against engine under-loading, improving efficiency and the life of the power pack module. The heavy duty LED floodlights carry high ingress protection (IP) and impact protection (IK) ratings and offer high durability without any drop in lux level, while consuming less than 0.5 litres of fuel per hour.
Included accessories
Specifications
| Light Coverage | 5000 m2 (average 20 lux) |
|---|---|
| Lamps | LED |
| Mast | Vertical Hydraulic |
| Features | Galvanised Canopy |
| Rated Frequency | 50 Hz |
| Rated Voltage | 230 VAC |
| Rated Power (PRP) | 2,7 kW |
| Operating Temperature (min/max) | -20/40 degrees C |
| Sound Pressure | 90 dB(A) |
| Sound Power @7m | 65 dB(A) |
| Fuel Capacity | 120 L |
| Runtime With Lamps On | 185 hrs |
| Engine Make | Hatz |
| Engine Type | 1B50 |
| Engine Speed | 1500 rpm |
| Rated Net Output | 3,5 kW |
| Coolant | Air |
| Number Of Cylinders | 1 |
| Transport Dimensions (L x W x H) | 1.16 x 1.16 x 2.5 m |
| Weight | 980 kg |
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
