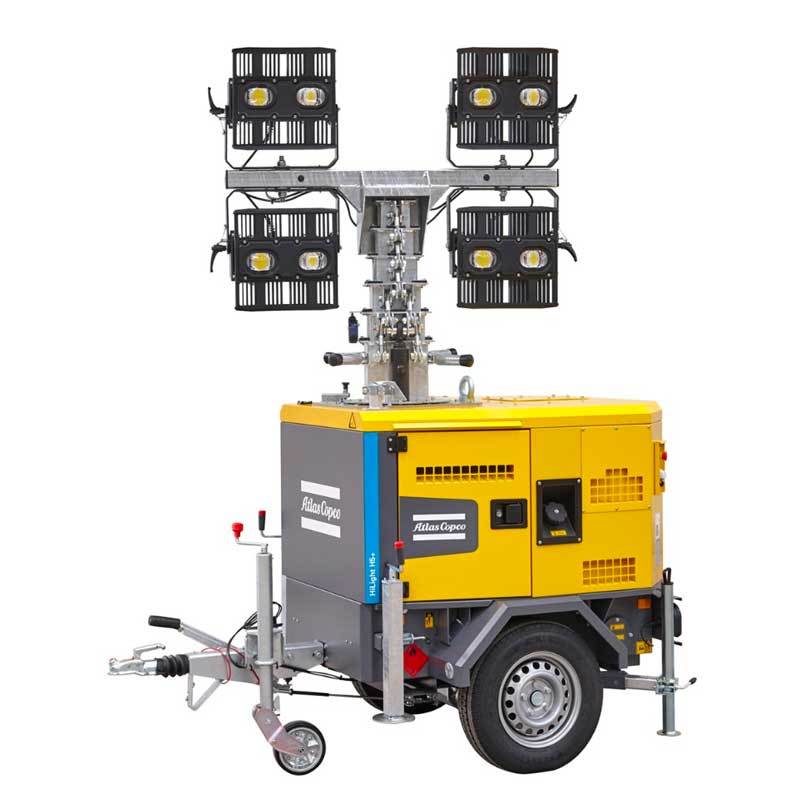

ATLAS COPCO HiLight H5+ LED Light Tower
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Design Features
The Atlas Copco HiLight H5+ light tower design includes directional optic lenses that maximise practical light coverage while minimising dark spots. The Atlas Copco HiLight H5+ light tower provides optimum efficiency, which is illustrated by the fact that just a single light tower can illuminate an area of up to 5,000 m2; providing an average brightness of 20 lux.
Fuel Saving Light Tower
The Atlas Copco HiLight H5+ LED light tower can offer a run time between refuelling of 260 hours and consume less than 0.5 litres of fuel per hour. To ensure further operational savings, Atlas Copco includes dedicated power packs within the HiLight H5+ to optimise the light tower’s power output, and improve efficiency by protecting against under-loading of the engine. As a result, the lifetime of the power pack module was improved. The LED lamps are design for both portability and performance. The heavy-duty floodlights benefit from high ingress protection (IP) and impact protection (IK) ratings. As an additional benefit, the LED lamps offer higher durability without any deterioration in lux level.
Specifications
Performance
|
Light Coverage |
meters(2) |
5.000 (average 20 luxes) |
|
Lamps |
LED |
|
|
Mast |
Vertical Hydraulic |
|
| Features | Galvanised Canopy | |
| Rated Frequency | Hz | 50 |
| Rated Voltage | VAC | 230 |
| Rated Power (PRP) | kW | 2,7 |
| Operating Temperature (min/max) | degrees celsius | -20/40 |
| Sound Pressure | dB(A) | 90 |
| Sound Power @7m | dB(A) | 65 |
| Fuel Capacity | L | 120 |
| Runtime before with lamps ON | hrs | 185 |
Engine
|
Make |
Hatz |
|
Type |
1B50 |
|
Speed |
1500 rpm |
|
Rated Net Output |
3,5 kW |
| Coolant | Air |
| Number of cylinders | 1 |
Dimensions
| Dimensions in Transport Fixed Tow-bar (L x W x H) | m | 1.16 x 1.16 x 2.5 |
| Weight | kg | 980 |
