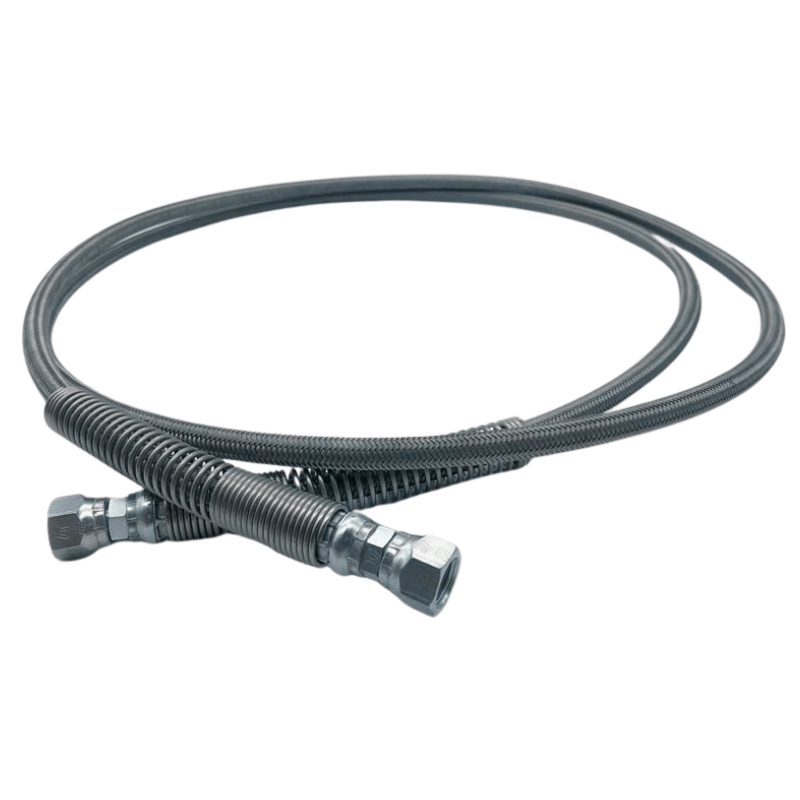

Banlaw Pilot Line Overfill Protection FillSafe Power

Overview

An important part of the Banlaw FillSafe Zero system is the Pilot Line.

The key role of the Pilot Line is to provide a ‘signal’ link between the Flow Control Valve and the Level Sensor. The Pilot Line provides the back pressure signal that the Level Sensor has made contact with diesel. This signal causes the Flow Control Valve to close and prevent additional fuel from entering the tank.

The Banlaw FillSafe Zero system may incorporate either an External or Internal Pilot Line depending on the choice of Flow Control Valve used.

Banlaw FillSafe overfill protection systems ensure safe, high-speed, reliable diesel refuelling with zero pressure build-up in the tank, ensuring cost-efficient installs.  Banlaw manufactures both mechanical and electronic solutions for tank overfill protection, catering to storage tanks and diesel-powered machines of all sizes. All products are designed to protect valuable machine assets, providing the widest choice of zero tank pressure overfill protection systems available on the market.

Data Sheets
GO Data Sheet Banlaw 800 Series Dry Break Diesel Receiver Range
GO Data Sheet Banlaw Overfill Protection FillSafe Zero - Pilot Line
