Borum Air Actuated Hydraulic Jack 22,000kg B2003T
SKU: B2003T
Borum Air Actuated Hydraulic Jack 22,000kg B2003T
 |
OPERATORS MANUAL |

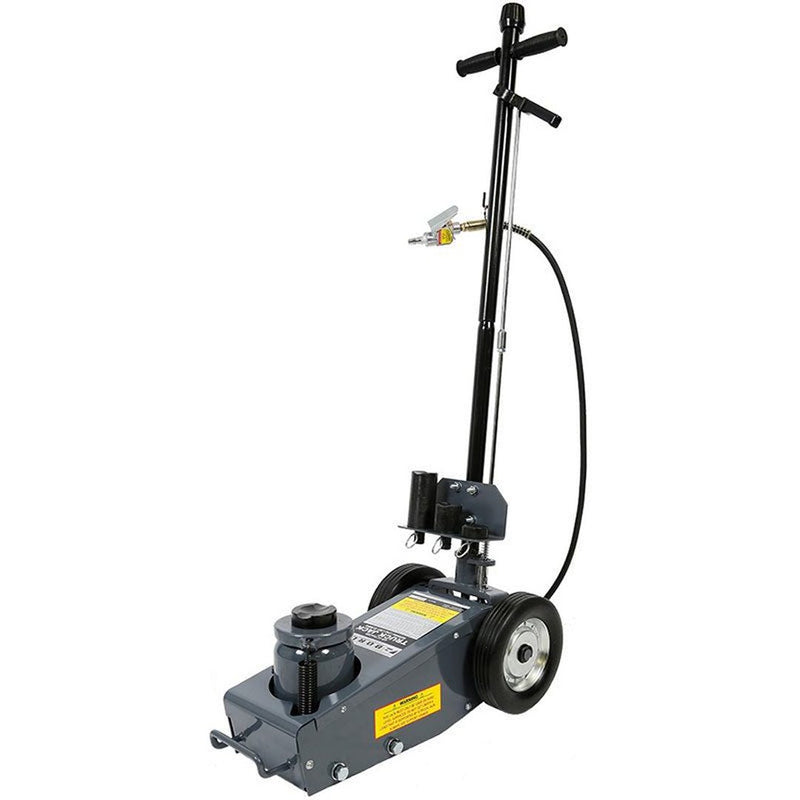

This Borum "Industrial Quality" pneumatic heavy-duty 22,000kg Air Actuated Hydraulic Quick Lift Truck Jack has a powerful super duty air motor to easily and reliably lift heavy vehicle loads. This super-tough Truck Jack delivers enough air/hydraulic power to lift up to 22,000kg and is ideal for servicing trucks and farm equipment. Other features include 200mm diameter wheels for easy maneuverability, four saddle adaptors and a cast iron base with formed steel housing for added durability.
Built with the best components from the highest grades of rugged steel, to the wear-resistant advanced technology sealing rings and a heavy duty hydraulic pump that's filled with industrial grade high/low temperature-resistant hydraulic oil.
The alloy hardened piston-ram is treated and polished to resist thinning over time and uses an advanced Y-type polyurethane sealing ring system that keeps the jack solidly raised in the desired position, preventing the load from falling slowly. This jack is fitted with a built-in bypass hydraulic safety overload system for extra onsite safety. Even if the jack is loaded with too much weight, the safety overload kicks in and gently lowers the unit before the operator is put in a dangerous situation.
This 22,000kg Truck Jack is designed for industrial strength durability. The rugged super-grade steel frame is teamed with an industrial quality lead-free paint finish that covers the entire surface to ensure long-lasting wear and help prevent rust. The paint is also oil, grease and dirt-resistant for easy cleanup. (Previous models include product code/s; BPROAJ22T, BTJ22TA)
Features:
-
Solid heavy duty construction for superior performance
- Industry benchmark for harsh workplace conditions
- Hardened alloy plated ram ensures heavy duty performance
- Advanced hydraulic seal technology
- Fast motion super duty air pump
- Industry benchmark for heavy duty workplace conditions
- Advanced technology sealing rings
- High-low temperature-resistant hydraulic oil
- Treated and polished piston and ram
- Built-in bypass hydraulic safety overload system
- Convenient & efficient height adaptors
- 3-position pumping handle
- High quality lead-free paint ensures long-lasting wear and prevents rust
- Oil, grease and dirt-resistant finish for easy cleanup
Specifications:
- Safe Working Capacity: 22,000kg
- Lift Range: 210-525mm
- Hydraulic Lift: 120mm
- Adjustable Height: 105mm
- Handle Length: 1075mm
- Air Supply: 100-120psi
- Wheel Diameter: 175mm

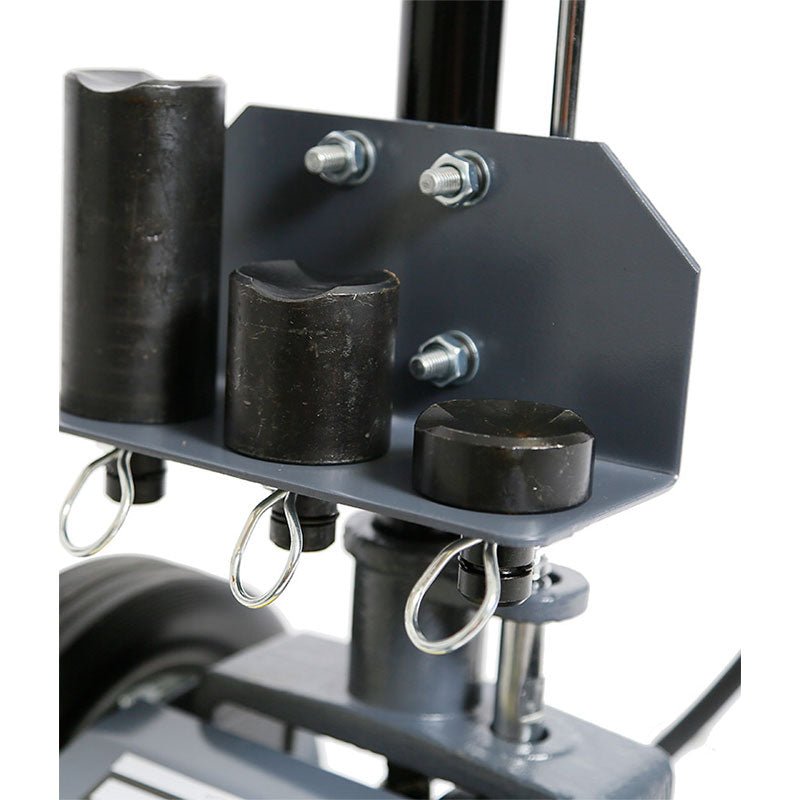

- Interchangeable Saddle Adaptors: 20 50 100mm
- Chassis: 570(L) x 215(H) x 310(W)mm
- Nett Weight: 48kg
- Carton: 660(L) x 360(W) x 280(H)mm
- Gross Weight: 50kg
