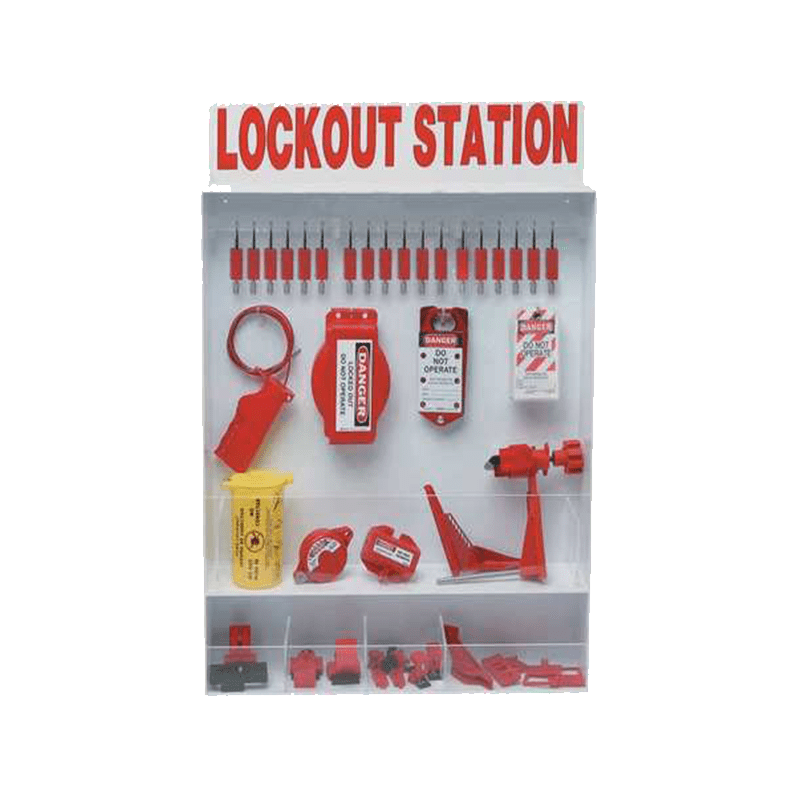

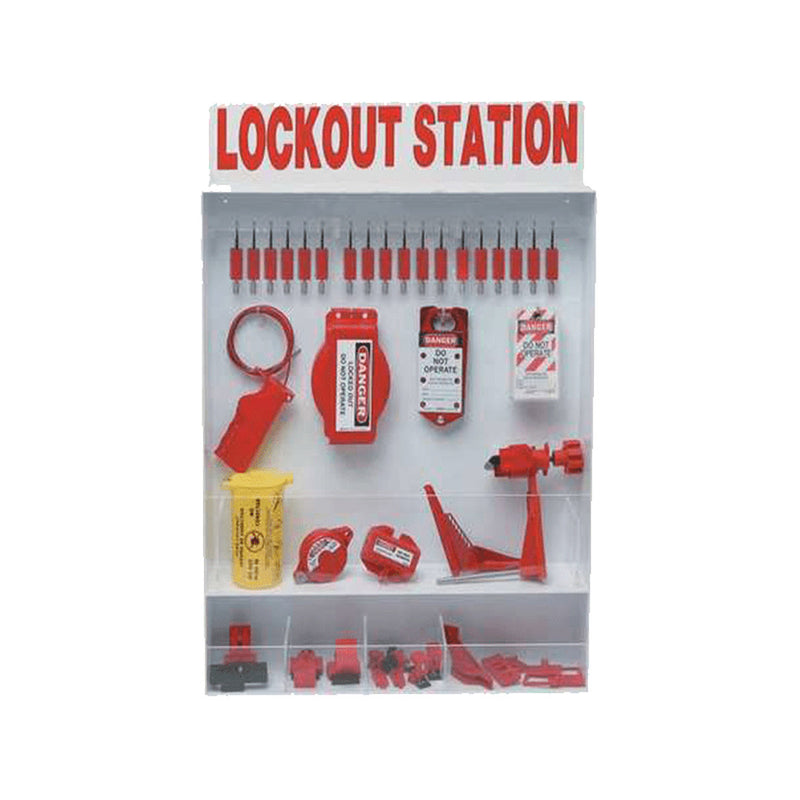

Brady Combination Wall Mount Lockout Station

Brady Combination Wall Mount Lockout Station

DATA SHEET

This station provides everything you need to lockout both electrical and mechanical control points. Includes universal valve lockout and all purpose cable lockout.

• Constructed of sturdy polystyrene for maximum durability
• Pre-drilled holes for easy wall mounting
• Pegboard style holes for hooks drilled into back and sides
• Includes 8 hooks
• Built-in lock rail holds 20-25 locks depending on lock size

Kit Contains

• 1 x All Purpose Cable Lockout with
• 2.4m Sheathed Cable (50943)
• 1 x Large Univ. Valve Lockout with Blocking Arm (50899 and 65403)
• 2 x 120V Snap-On Breaker Lockouts (65387)
• 2 x 120/277V Clamp-On BreakerLockouts with cleats (65396)
• 2 x 480/600V Clamp-On Breaker Lockouts with cleats (65397)
• 2 x Universal Multi-Pole Breaker Lockouts (66321)
• 1 x Oversized Breaker Lockout (65329)
• 1 x Wall Switch Lockout (65392)
• 1 x 110V Plug Lockout (65674)
• 1 x 3-in-1 Plug Lockout (PLO23)
• 1 x 6-25mm Ball Valve Lockout (65666)
• 1 x 31-76mm Ball Valve Lockout (65669)
• 2 x 25-63mm Gate Valve Lockouts (65560)
• 1 x 25-165mm Adjustable Gate Valve Lockout (850834)
• 2 x Labelled Lockout Hasps (65960/1)
