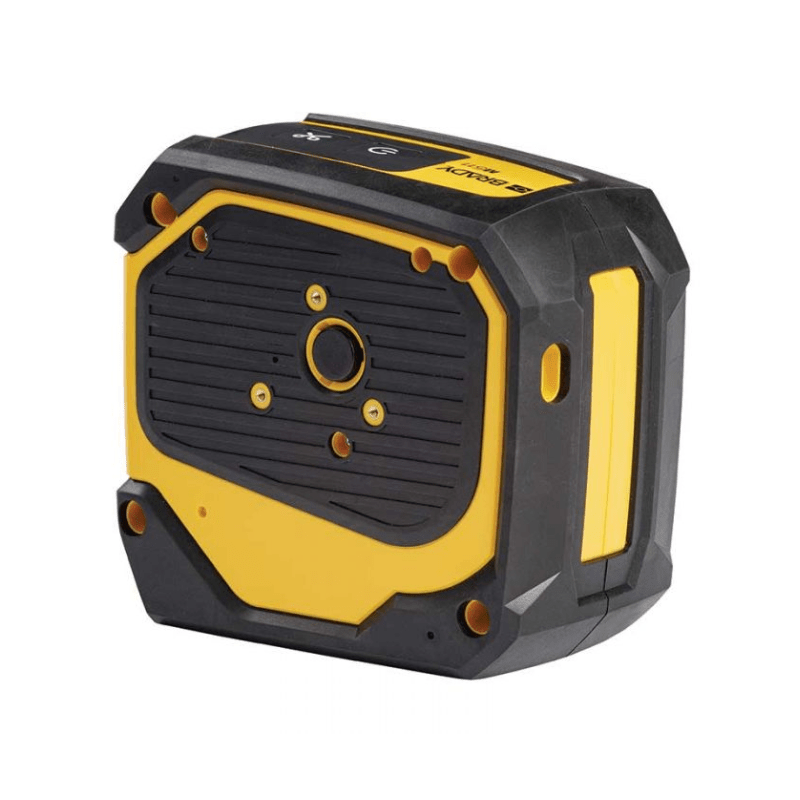

BRADY M511 Label Printer
SKU 880964
$827.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Work smarter. Label larger with the M511. Print bigger, clearer messages. Go edge to edge. Design and print on the fly, or a PC. Plus, share files, import data and connect up to 5 users simultaneously.
Features
Features
Specifications
| Colour | Black, Yellow |
|---|---|
| Brand Name | Brady® |
| Quantity or Roll Length | 1 |
| Sold | 1 Each |
| Industry | Biotechnology, Buildings identification, Chemical, Education, Electrical, Electronics, ICT, Laboratory, Manufacturing, Voice data communication, Tourism recreation, Construction |
| Barcode | 88843462055 |
| Trade Name | M511 |
| Storage Temperature Range (C) | -18°C - 43°C |
| On Screen Indicators | Error Messaging |
| Power Source | AC Adaptor, Rechargeable Battery, USB |
| Print Technology | Thermal Transfer |
| Printing Functions | Auto Format, Date/Time Stamp, Fixed Length, Justification, Multi-copy, Reverse, Rotate, Vertical, Serialisation, Frame Feature, List Function, Autosizing, Bold, Condensed, Expand, Italics, Outline, Underline |
| Serialisation | Multiple Linked |
| Media Format | Media and Ribbon in Cartridge, supplied together |
| Colour Printing Capability | Single Colour |
| Maximum Labels per Day | 1000 |
| Maximum Print Speed (mm/s) | 33.80 |
| Operating Humidity Range | 20%-90% (non-condensing) |
| Operating Temperature Range (C) | 4°C - 43°C |
| Barcode Symbologies - 1D | Code 128A, Code 128B, Code 128C, Code 39, HIBC, Interleaved 2 of 5, UPC-A, UPC-E, Code 128, EAN-8, EAN-13, Code 39 Full ASCII, Code 93 Full ASCII, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, JAN-13, Code 93, JAN-8 |
| Barcode Symbologies - 2D | Data Matrix, More through Brady Workstation, PDF417, QR code, More through software |
| Barcode Symbologies - Combined | Code 128A, Code 128B, Code 128C, Code 39, HIBC, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E, Data Matrix, PDF417, QR code, Code 128, EAN-8, EAN-13, More through software, Code 39 Full ASCII, Code 93 Full ASCII, Code 93, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, JAN-13, JAN-8 |
| User Interface Type | Mobile device, PC |
| Application | Asset Tracking, Circuit Board Labelling, Component and Equipment Labelling, Data and telecommunications labelling, Electrical labelling, General identification, Laboratory Labelling, Facility Identification, Inventory and Inspection Labelling, Lean and 5S Labelling, Safety Identification, Warehouse Marking, Wire and cable labelling |
| Built-In Label Wizards | Pipe Marker, Wire Wrap, Breaker Box, Flags, Patch Panel, Terminal Block, Vial, Safety, General, Sleeves, Slide, Tube |
| Connectivity Options | Bluetooth® 5 Low Energy (class II) |
| Device Connectivity | Mobile device connected, PC connected |
| Display Type | None |
| Printer and Label Applications | Circuit Board, Datacom, Electrical, General Identification, Inspection Repair, Laboratory, Rating Name Plates, Wire Cable, Lean / 5S, Safety, Pipe Marker, Hazardous Materials |
| Power Supply Voltage | 110 - 240 V |
| Device Drop Test Durability | Resistant to 1.8m drops, Resistant to military-grade shocks (MIL-STD-810G), Sand Dust, Resistant to 113kg crushes |
| Battery Type | Lithium-ion Battery - Internal, not removable |
| Recharge Time | 2.5 hours |
| Cutter Type | Auto Cutter |
| Keyboard Type | None |
| Number of Symbols | Dependant on software |
| Print Resolution dpi | 300 dpi |
| Special Characters Quantity | Determined by software |
| Font Sizes | 4 - 150 pt |
| Auto Shut-Off / Power Conserve | Yes, User Configurable |
| Battery mAh Rating | 1200 mAh |
| Height (mm) | 91.44 mm |
| Width (mm) | 152.40 mm |
| Depth (mm) | 162.56 mm |
| Overall Dimension | 152.40 mm (W) x 91.44 mm (H) x 162.56 mm (D) |
| Weight (kg) | 1.04 kg |
| Maximum Label/Tape Width (mm) | 38.10 mm |
| Maximum Print Width (mm) | 36.58 |
| Storage Humidity Range | 10%-90% (non-condensing) |
| Package Weight (kg) | 1.9 kg |
| Phones Tablets Supported | iPhone 5S or newer with iOS 10+, Android devices with Android OS 6+ |
| Compatible Brady B-Numbers | B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-425, B-425A, B-427, B-428, B-432, B-461, B-482, B-481, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-584, B-595, B-7425, B-7641 |
| Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Repositionable Paper |
| Languages Available | Bulgarian, Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese (Traditional and Simplified), Bahasa (Indonesian), Bahasa Malay, Vietnamese, Thai, Arabic (Egypt), Spanish (universal), Hebrew |
| Compatible Media | M4-, M4C-, M5-, M5C- |
| Approved Ship To Countries | Egypt, Estonia, Finland, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Eritrea, Gibraltar, Djibouti, Equatorial Guinea, Ethiopia, Gabon, Gambia, Ghana, Guinea-Bissau, Iraq, Ivory Coast, Anguilla, Antigua and Barbuda, Argentina, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, Brazil - Non-Government Companies, British Virgin Islands, Canada, Cayman Islands, Channel Islands, Chile, Colombia, Costa Rica, Dominica, Dominican Republic, Ecuador, El Salvador, French Guiana, Greenland, Grenada, Guadeloupe, Guatemala, Guyana, Haiti, Honduras, Jamaica |
