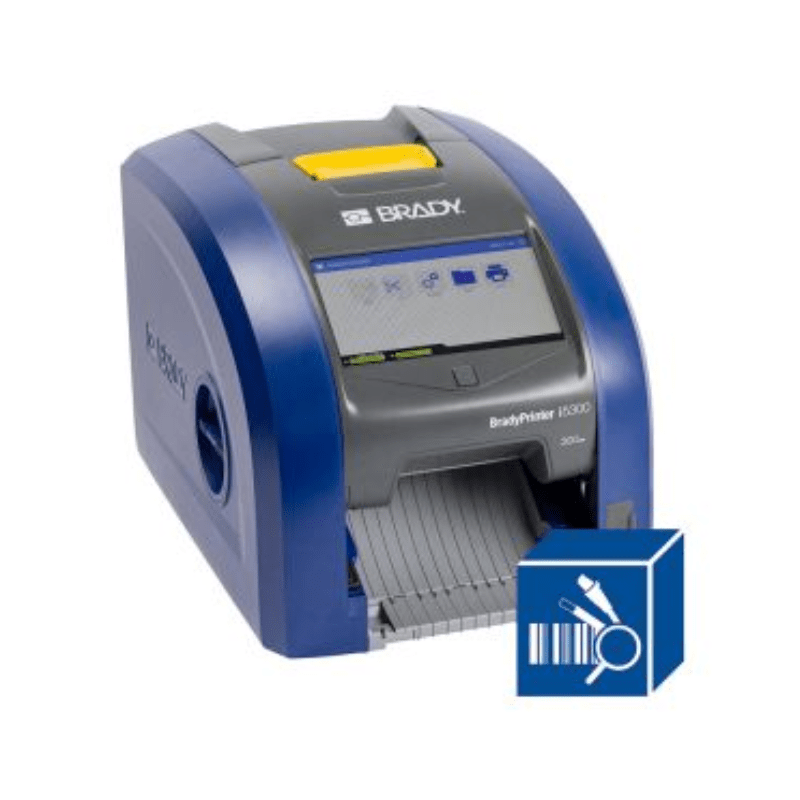

BRADY i5300 Industrial Label Printer with PWID Software - 300dpi

SKU 880134

$6,433.00

Tax included. Shipping calculated at checkout.

Quantity

Contact for pricing

No stock main warehouse, contact for lead time

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Get fast and efficient precision printing for high-mix / high-volume labelling. Printer and software allow for quick label set up and no-waste material changeovers.

Features

300 dpi; prints small fonts with precision

Requires no calibration and no heat and speed setting adjustments

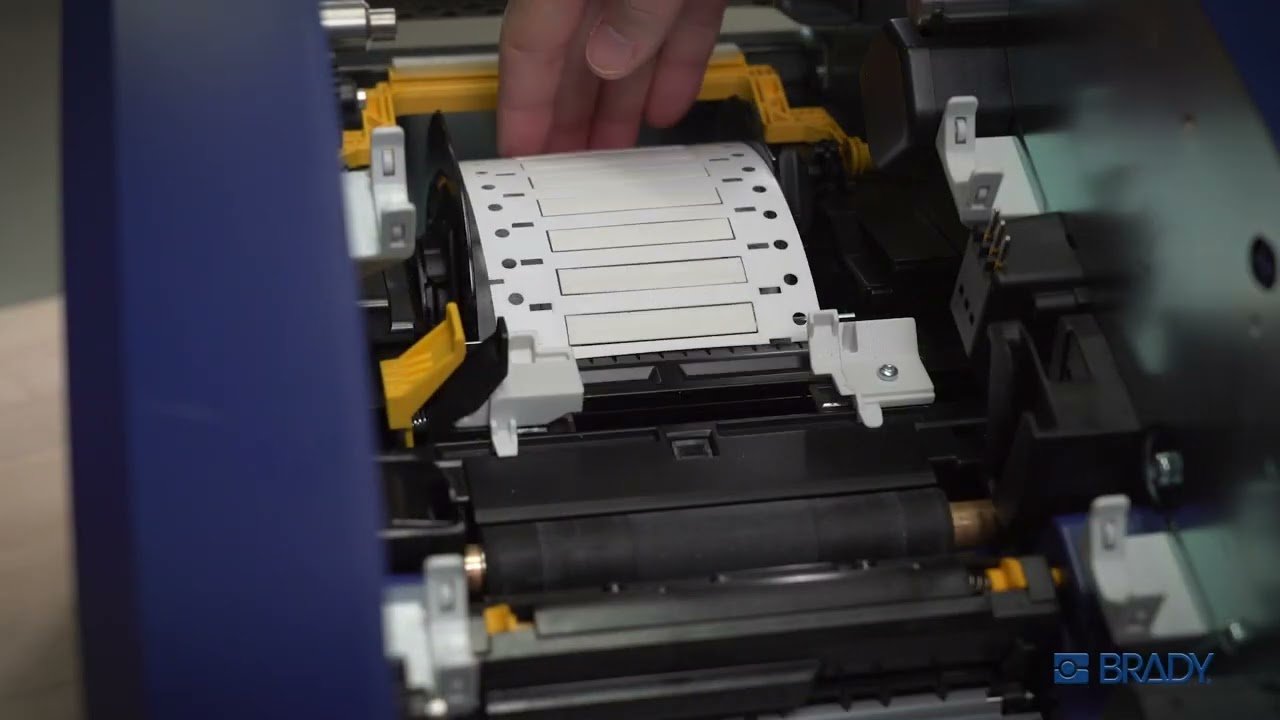

20-second material changeovers, 5.08mm – 101.6mm label widths

Pauses, resumes and stores print jobs on printer in an adjustable queue with overwrite protection

7" (177mm) colour touchscreen and built-in auto cutter

Solid construction with an all-metal frame

1-click label part recognition and setup with Brady Workstation Product and Wire ID Software Suite

Intuitive and easy to operate

Specifications

Unit of Measure	Each
Compliance Agency Approvals	Compliant with Directive 2011/65/EU and 2015/863
Application	Industrial Label Printer for Product and Wire ID
Weight (Kg)	14.9
Height (mm)	279.4
Width (mm)	284.48
Connectivity Type	Cabled, Wireless, Wi-Fi, USB 2.0 USB Host
Power Supply Options	AC Power
Memory Capacity (MB)	512MB RAM
Length (mm)	401.32
Cutter Type	Automatic
Warranty Period	5 years
Software Compatibility	Brady Workstation, Windows Based Driver for Third Party Software Use
Print Technology	Thermal Transfer
Labels Per Day	5,000+ labels per day
Maximum Print Width (mm)	101.9
Media Width (mm)	5.08 - 107.95
Continuous vs Die Cut	Continuous and Die Cut
Recommended Ribbon	B30 series (V.2)
Print Speed (mm/sec)	254mm/ sec (Max.)
Print Resolution (dpi)	300
Print Colour Capabilities	Monocolour
Printer Barcode Type	2D (Aztec, Data Matrix, PDF 417, QR Code) Linear ( Code 39 (lvi_532334);Code 93 (lvi_532375);Code 128 Subsets A,B,C (lvi_532355);Codabar (lvi_532374);EAN 8,13 (lvi_532371);JAN 8,13 (lvi_532385);HIBC (lvi_532376);Interleave 2 of 5 (lvi_532418);UPC A (lvi_532356);MSI (lvi_532365);Plessey (lvi_532394))
Font Types Available	Arial, Courier New, Tahoma, Times New Roman, Trechuchet MS, TrueType fonts storable to printer, Verdana
Text Sizes	4 pt to 250 pt Text
Types of Materials Supported	Paper, Polyester, Vinyl, Magnetic, Glow, Metal Detectable, Repositionable
Materials Supported	B30 and B33 series (V.2)
Stand Alone Printing	PC Connect
