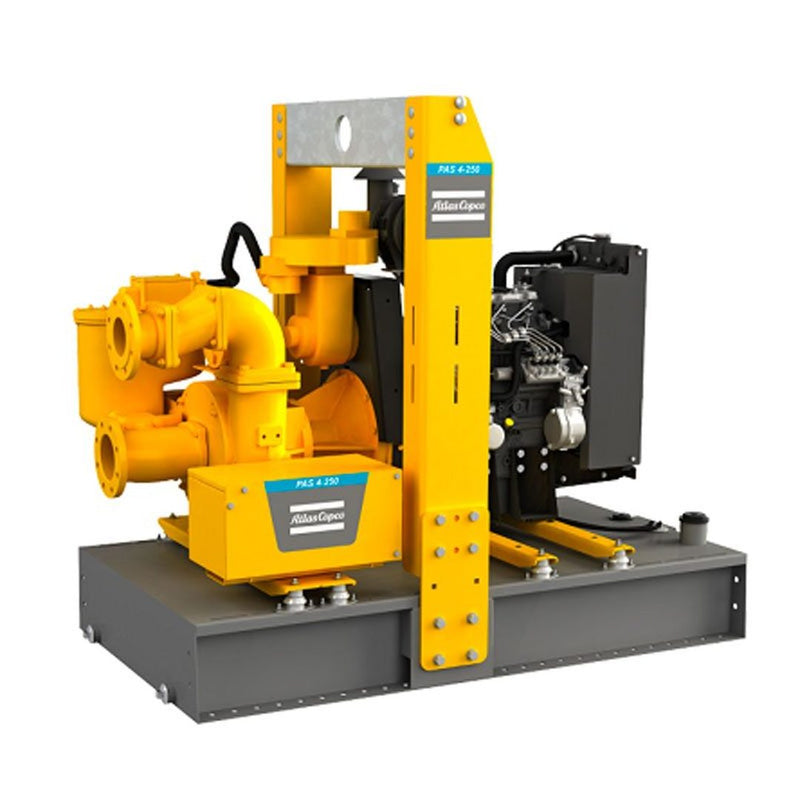

ATLAS COPCO PAS-200MF-300 Centrifugal Pump

Name: ATLAS COPCO PAS-200MF-300 Centrifugal Pump
Brand: Atlas Copco
SKU: PAS-200MF-300
Availability: InStock

SKU: PAS-200MF-300

ATLAS COPCO PAS-200MF-300 Centrifugal Pump

Inclusive of GST. Shipping calculated at checkout.

Available for pre-order only. Delivery lead time to be confirmed.

Product variants

Quantity

Other payment options

View full details

ATLAS COPCO PAS-200MF-300 Centrifugal Pump

Product variants

Details

The PAS pump system consists of a centrifugal pump and a SuperDuo separator, which enables air to be separated from the liquid and be sucked by a vacuum pump – making automatic priming possible. Even with suction heights of several meters, the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the semi-open impeller, the PAS range is also suitable for pumping liquids with solids in suspension.

Both Atlas Copco and Varisco have decades of experience in designing and producing pumps. We have put those years of expertize into providing a solutions portfolio that works across multiple applications. The PAS MF (medium flow) range is packed with features that not only meet, but exceed the needs of the market. We are focused on an efficient, extremely versatile pump that is suitable for many industries, including construction, general dewatering and emergency applications, such as flood clean up.

Available with Air or liquid cooled engine.

Features

Pump High efficiency: 73% (B.E.P.)

Rapid ""dry"" priming: Up to a height of 8.5 m (27.5 ft)

High resistance: To abrasive liquids and turbid sandy waters

Semi-open impeller: Solids handling up to 60 mm (2.4"")

Easy maintenance: Without lifting devices: hinged cover for direct access to the impeller

Diaphragm vacuum pump: Oil free suitable for dry running: no contamination of the environment

Wear plates: Cast iron (G10 rubber lined) or stainless steel wear plates, that are easily replaceable

Atlas Copco PAS-200MF-300 Centrifugal Pump

Overview

The PAS 200MF 300 centrifugal pump has a maximum capacity of 720m³/h, a suction/ discharge of DN200(8″), a maximum head of 31m, a maximum solids of 60 and an air cooled Deutz engine and water cooled Kohler engine.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Altas Copco PAS-100MF-260 Centrifugal Pump

GO Industrial Dry Prime PAS Pumps

Specifications

Maximum Capacity: 720m3/h

Suction/ Discharge: DN200 (8"")

Maximum Head: 31m

Maximum Solids: 60

Engine: Air Cooled Deutz/ Water Cooled Kohler

Power: 47.7/45kW

Priming System	PAS-200MF-300
Vacuum pump	V20
Vacuum pump type	Diaphragm
Nominal air capacity	50 m³/h (29.4 cfm)
Max vacuum	0,9
Bar Separator type	Superduo
Separator material	EN-GJL-200 cast iron
Drives	Link belt

Pump	PAS-200MF-300
Qmax	720 m³/h - 12.000 l/min (3,200 USgpm)
Hmax	31 m (102 ft)
Q max eff.	450 m³/h - 7.500 l/min (2,000 USgpm)
Eff. max	73 %
Suction port	Flanged - DIN 200
Delivery port	Flanged - DIN 200
Impeller type	Semi-Open, 4 vane
Solids handling	60 mm (2.4 "")

Features

Pump High efficiency: 73% (B.E.P.)
Rapid ""dry"" priming: Up to a height of 8.5 m (27.5 ft)
High resistance: To abrasive liquids and turbid sandy waters
Semi-open impeller: Solids handling up to 60 mm (2.4"")
Easy maintenance: Without lifting devices: hinged cover for direct access to the impeller
Diaphragm vacuum pump: Oil free suitable for dry running: no contamination of the environment
Wear plates: Cast iron (G10 rubber lined) or stainless steel wear plates, that are easily replaceable
