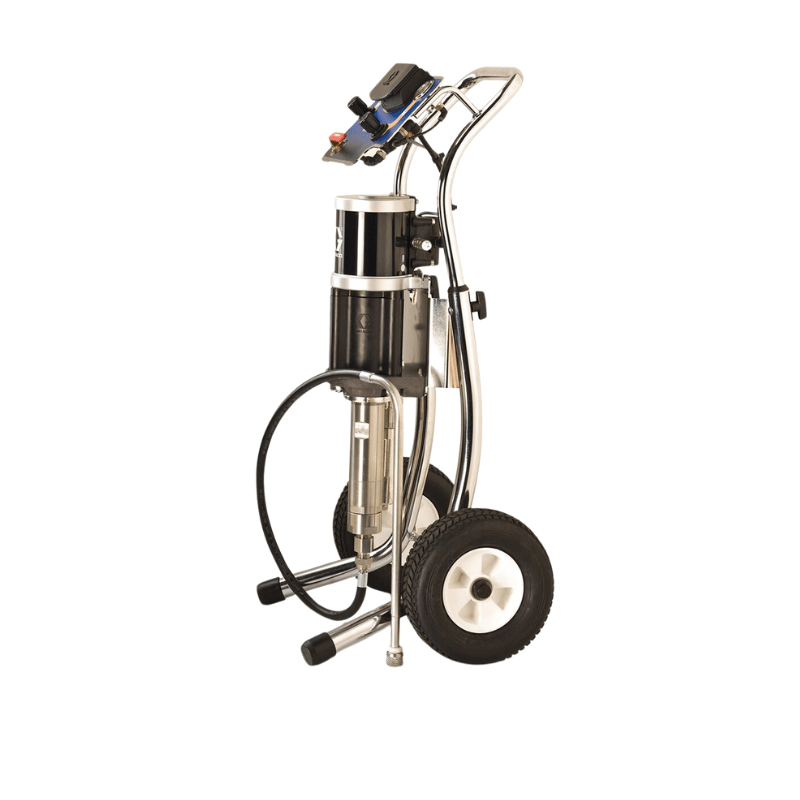

Graco 23:1 Merkur Electrostatic Spray Package Fluid Flow Cart Mount
  • Graco 23:1 Merkur Electrostatic Spray Package Fluid Flow Cart Mount
1 1

GRACO Merkur 23:1 Cart Mount Fluid Flow Electrostatic Spray Package

SKU: G23C15

GRACO Merkur 23:1 Cart Mount Fluid Flow Electrostatic Spray Package

$28,600.00 AUD
$28,600.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Configuration

Other payment options

View full details
Graco 23:1 Merkur Electrostatic Spray Package Fluid Flow Cart Mount

GRACO Merkur 23:1 Cart Mount Fluid Flow Electrostatic Spray Package

From $28,600.00 AUD
From $28,600.00 AUD $0.00 AUD
Save $0
Sold out

Features

  • Proven to outperform and outlast other pumps in their class
  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • External valve access allows for easy servicing and online replacement to minimize downtime

    • Graco 23:1 Merkur Electrostatic Spray Package Fluid Flow Cart Mount

    Overview

    Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    CONVERTIBLE Non-Convertible
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (CM) 1.27
    FLUID OUTLET SIZE (IN) 1/2
    FLUID OUTLET SIZE (MM) 12.7
    FLUID OUTLET THREAD TYPE NPT
    INCLUDES Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
    MAXIMUM HOSE LENGTH (FT) 25
    MAXIMUM HOSE LENGTH (M) 7.6
    MAXIMUM WORKING PRESSURE (BAR) 124
    MAXIMUM WORKING PRESSURE (KPA) 12400
    MAXIMUM WORKING PRESSURE (PSI) 1800
    MODEL Merkur
    MOTOR TYPE Pneumatic
    NUMBER OF GUNS 1
    POWER SOURCE Air
    PUMP TYPE Pneumatic Piston Pump
    WEIGHT (KG) 34.9
    WEIGHT (LB) 77
    WETTED MATERIAL Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene
    SPRAY TYPE Electrostatic
    TYPE Air-Assisted Airless Sprayer
    MAXIMUM WORKING PRESSURE (MPA) 12.4
    PRESSURE TYPE High Pressure
    MOUNT TYPE Wall Mount
    PUMP RATIO 18:1
    GUN TECHNOLOGY Electrostatic
    GUN TYPE Electrostatic
    GUN INCLUDED 1
    PRODUCT TYPE Spray Package
    GUN MODEL Pro Xp 85 kV Smart
    TECHNOLOGY TYPE Air-Assisted

      Features

    • Proven to outperform and outlast other pumps in their class
    • Highest technology air motor on the market
    • Low air consumption for increased efficiency
    • External valve access allows for easy servicing and online replacement to minimize downtime
