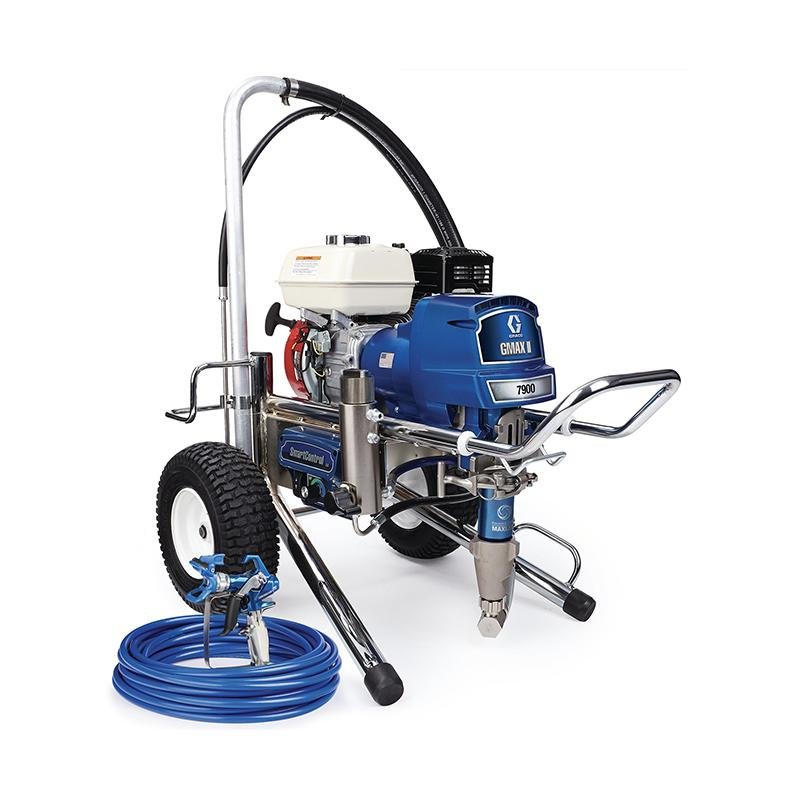

GRACO GMAX II 7900 Lo-Boy Standard Series Gas Airless Sprayer
SKU 17E834
$12,760.00
$15,000.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Offering 35% more performance than the GMAX II 5900, the GMAX II 7900 is Graco's largest gas mechanical sprayer. These units can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.
Features
Features
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear Repack pump in minutes with new QuikPak cartridge repair system
ProConnect 2 Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
SmartControl 3.0
- Consistent spray fan & pressure control
- Lowest dead band at any pressure
- Ideal for low overspray applications
Precision Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
Durable Cart Design
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Convenient retractable bucket hook allows for easy movement on the job
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor preferred
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Jobsite Ready
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| FEATURES | Endurance Vortex MaxLife Pump, SmartControl 3.0, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Lo-Boy |
| HOSE INLET DIAMETER (CM) | 0.635 |
| HOSE INLET DIAMETER (IN) | 1/4 |
| HOSE INLET DIAMETER (MM) | 6.35 |
| INCLUDES | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X LTX 517, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz(118 ml) |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 2.2 |
| MAXIMUM FLOW RATE (L/MIN) | 8.33 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.048 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.048 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 69.1 |
| OVERALL HEIGHT (IN) | 27.2 |
| WEIGHT (KG) | 70 |
| WEIGHT (LB) | 154 |
| OVERALL HEIGHT (MM) | 691 |
| OVERALL LENGTH (CM) | 119.1 |
| OVERALL WIDTH (MM) | 24 |
| OVERALL LENGTH (IN) | 46.9 |
| SERIES | 7900 |
| OVERALL LENGTH (MM) | 1191 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance Vortex |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | ProConnect 2 |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 4 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.035 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.027 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.023 |
| POWER RATING (CC) | 200 |
| PRODUCT SERIES | Standard |
Data Sheet
Manuals
- GO Manual Graco GMAX 3900 5900 7900
- GO Manual Graco Repair 3900 5900 7900
- GO Manual Graco Repair Instruction GMAX 7900
- GO Manual Graco Parts GMAX 3400 3900 5900 7900
- GO Manual Graco Displacement Pump
- GO Manual Graco FTx Spray Guns
- Graco GMAX II 3900 Manual 3A6400EN-B
- GMAX 3400 GMAX II 3900 5900 7900 and 5900 HD 7900 HD Airless Sprayers Manual 3A6417EN-H
