Tradequip Pro Kit Bottle Jack Air/Hydraulic 20,000kg
  • Tradequip Pro Kit Bottle Jack Air/Hydraulic 20,000kg
1 1

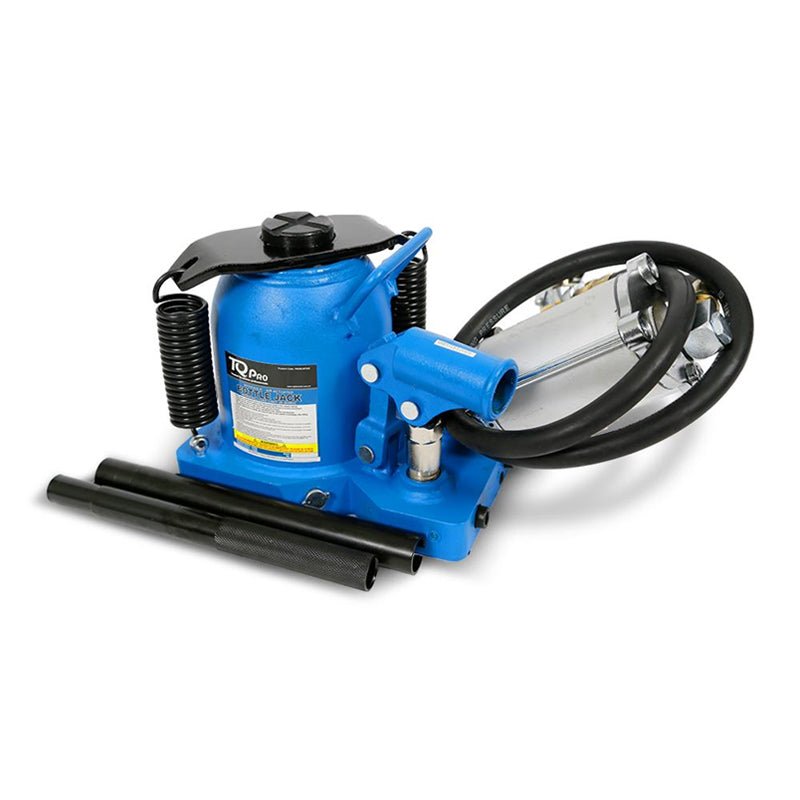

TRADEQUIP 20 Tonne Pro Kit Bottle Jack Air/Hydraulic

SKU: PROBJ20TAS

TRADEQUIP 20 Tonne Pro Kit Bottle Jack Air/Hydraulic

$769.00 AUD
$769.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Tradequip Pro Kit Bottle Jack Air/Hydraulic 20,000kg

TRADEQUIP 20 Tonne Pro Kit Bottle Jack Air/Hydraulic

$769.00 AUD
$769.00 AUD
Save $0
Sold out

Details

Thick Base Design

The thick base design is to provide the firmest footprint reducing flex. This substantially increases the life of the hydraulic ram under the toughest lifting and lowering circumstances.

Welded Reservoir

A welded reservoir instead of the screw base results in a substantial increase in durability. With the completely sealed hydraulic system, wear and tear and internal contamination is dramatically reduced.

Features

  • Using CNC technology, the frame is constructed using superior-grade steel and built to premium TQ Pro standards for professional quality and durability
  • Premium quality large diameter hydraulic steel cylinder with precision tolerances
  • Piston-ram is treated and polished to minimise wear and extend service life
  • High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
  • Paint is oil, grease and dirt-resistant for easy cleanup

    • TradeQuip 20 Tonne Pro Kit Bottle Jack Air/Hydraulic

    Overview

    This TQ Pro "Latest Applied Technologies" 20,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The superior-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Tradequip Bottle Jack Air Hydraulic 20 000kg

      Specifications

    • Safe Working Capacity: 20,000kg
    • Maximum Height: 324mm
    • Minimum Height: 178mm
    • Hydraulic Lift: 85mm
    • Adjustable Height: 61mm
    • Operating Air Pressure: 110-125psi
    • Air Inlet Fitting: 1/4""
    • Base Dimensions: 000 x 000mm
    • Carton: 380 x 195 x 200mm
    • Nett Weight: 16kg
    • Gross Weight: 17kg

        • Features

      • Using CNC technology, the frame is constructed using superior-grade steel and built to premium TQ Pro standards for professional quality and durability
      • Premium quality large diameter hydraulic steel cylinder with precision tolerances
      • Piston-ram is treated and polished to minimise wear and extend service life
      • High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
      • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
      • Paint is oil, grease and dirt-resistant for easy cleanup
