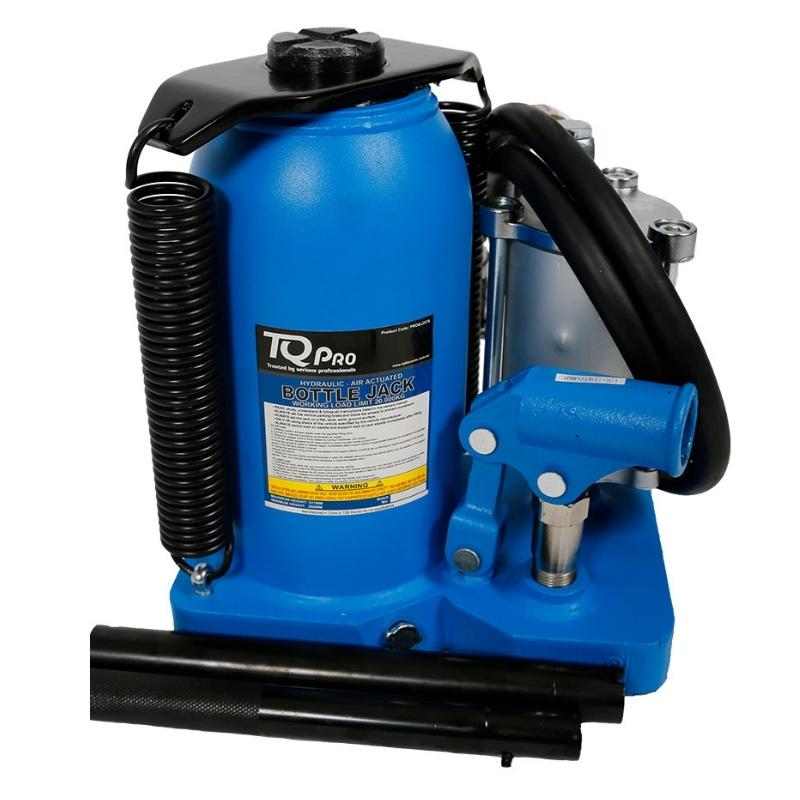

TRADEQUIP Bottle Pro Jack Air/Hydraulic 20,000kg

SKU PROBJ20TA
Afterpay Zip PayPal LeaseGO
$637.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

This TQ Pro "Latest Applied Technologies" 20,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The superior-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.

    Features

    Features

  • Using CNC technology, the frame is constructed using superior-grade steel and built to premium TQ Pro standards for professional quality and durability
  • Premium quality large diameter hydraulic steel cylinder with precision tolerances
  • Piston-ram is treated and polished to minimise wear and extend service life
  • High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • Specifications
  • Safe Working Capacity: 20,000kg
  • Minimum Height: 178mm
  • Maximum Height: 328mm
  • Hydraulic Stroke: 87mm
  • Screw Extension Height: 63mm
  • Operating Air Pressure: 110-125psi
  • Air Fitting: 1/4""
  • Carton: 390x192x195mm
  • Gross Weight: 13kg
  • Manual
