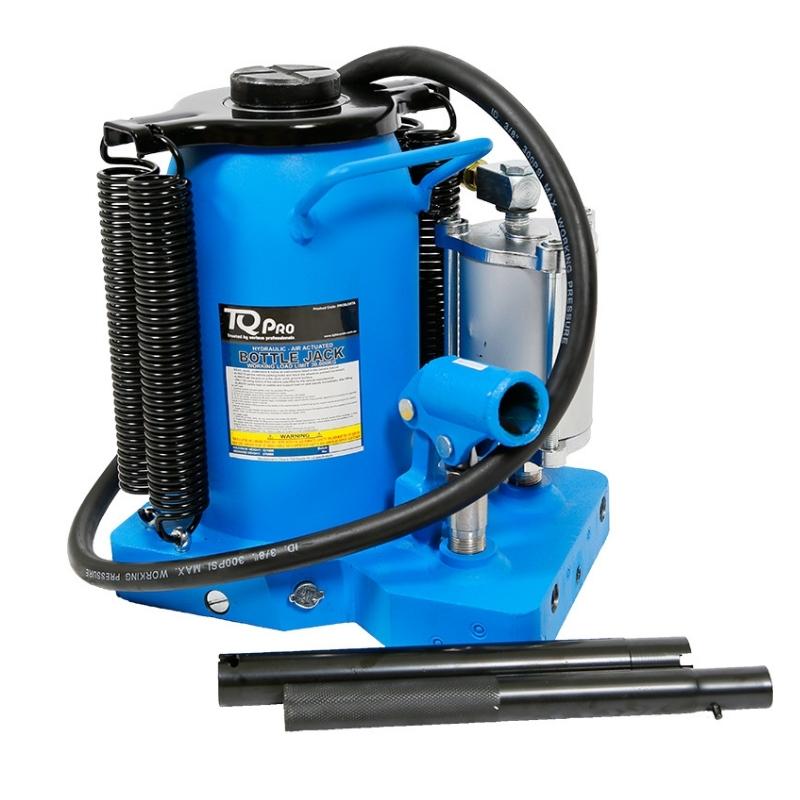

TRADEQUIP 30 Tonne Pro Bottle Jack Air/Hydraulic
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The TQ Pro 30,000kg air/hydraulic bottle jack is constructed of superior grade steel and built to premium standards for quality and durability. Its large diameter hydraulic steel cylinder needs lower oil pressure to raise the load, while a built-in bypass device protects the hydraulic system from over-pumping damage. A thick base gives the firmest footprint and reduces flex to extend ram life, and a welded reservoir in place of a screw base creates a fully sealed hydraulic system that cuts wear and internal contamination. Run it from a 110-125psi rated air pressure supply.
Features
CNC Steel Frame: Using CNC technology, the frame is built from superior grade steel to premium TQ Pro standards for professional quality and durability.
Hydraulic Cylinder: Premium quality large diameter hydraulic steel cylinder with precision tolerances.
Treated Piston-Ram: The piston-ram is treated and polished to minimise wear and extend service life.
Seal System: A high capability premium seal system protects the internal hydraulics from contaminants.
Lead-Free Finish: A lead-free paint finish is applied after a thorough chemical wash for a long-lasting finish.
Easy Cleanup: The paint is oil, grease and dirt resistant for easy cleanup.
Included accessories
Specifications
| Safe Working Capacity | 30,000kg |
|---|---|
| Maximum Height | 521mm |
| Minimum Height | 276mm |
| Hydraulic Lift | 150mm |
| Operating Air Pressure | 110-125psi |
| Air Inlet Fitting | 1/4" |
| Carton | 270 x 240 x 290mm |
| Nett Weight | 29kg |
| Gross Weight | 29.5kg |
