Overview

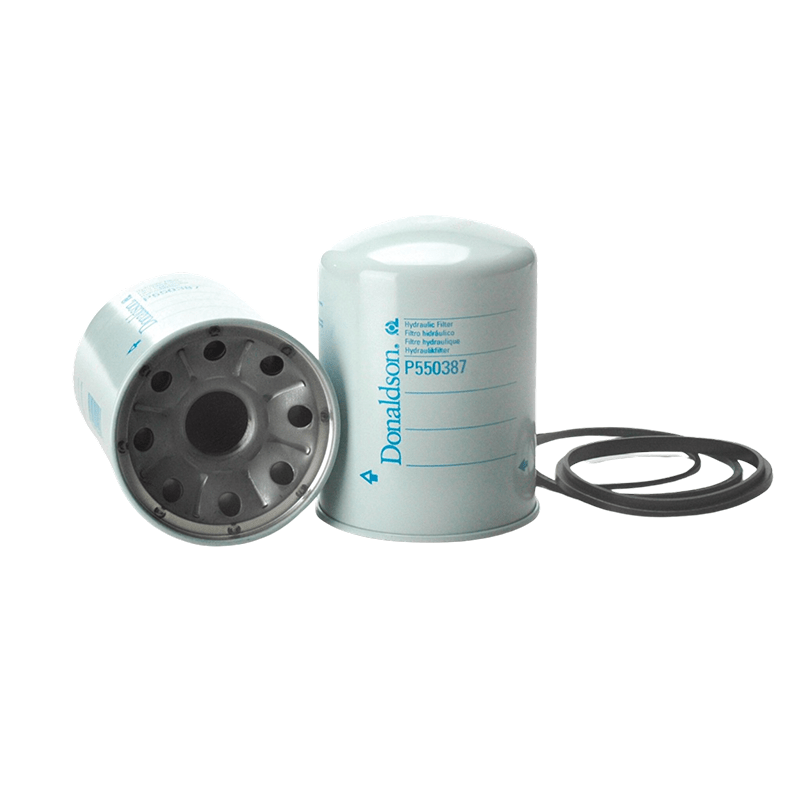

The Donaldson P550387 Filter Element, from GO Industrial, is used commonly with Compac Bowsers and Dispensers for the inline filtration of diesel fuel. The P550387 Filter Element features 17 micron particulate removal at Beta 2 efficiency and 40 micron particulate removal at Beta 1000 efficiency.
See our Cross Reference and Equipment drop downs for a comprehensive guide for other equipment that this filter element can be used.
Features
- Two Rated Cuts: 17 micron at Beta 2 and 40 micron at Beta 1000, so the real performance is visible rather than a single headline number.
- Compac Bowser Fit: Made for the Compac bowser and the W023, SP50/60, SP80/90 and SP100/120 series.
- Spin-On Service: Changes out by hand against the head gasket, so the head stays plumbed in.
- 1 1/2-16 UN Thread: 123.5 mm across and 169 mm long, with a 128 mm gasket outside diameter.
- Cellulose Media: Cellulose media at a lower cost per change, suited to the duty this bowser sees.
Specifications
| STYLE | Spin-On |
|---|---|
| MEDIA TYPE | Cellulose |
| EFFICIENCY AT BETA 1000 | 40 micron |
| EFFICIENCY AT BETA 2 | 17 micron |
| SUITS SERIES | W023, SP50/60, SP80/90, SP100/120 |
| THREAD SIZE | 1 1/2-16 UN |
| OUTER DIAMETER | 123.5 MM | 4.86 IN |
| LENGTH | 169.2 MM | 6.66 IN |
| GASKET OD | 128 MM | 5.04 IN |
| GASKET ID | 120.9 MM | 4.76 IN |
| FLOW DIRECTION | Standard |
| COUNTRY OF ORIGIN | United States |
