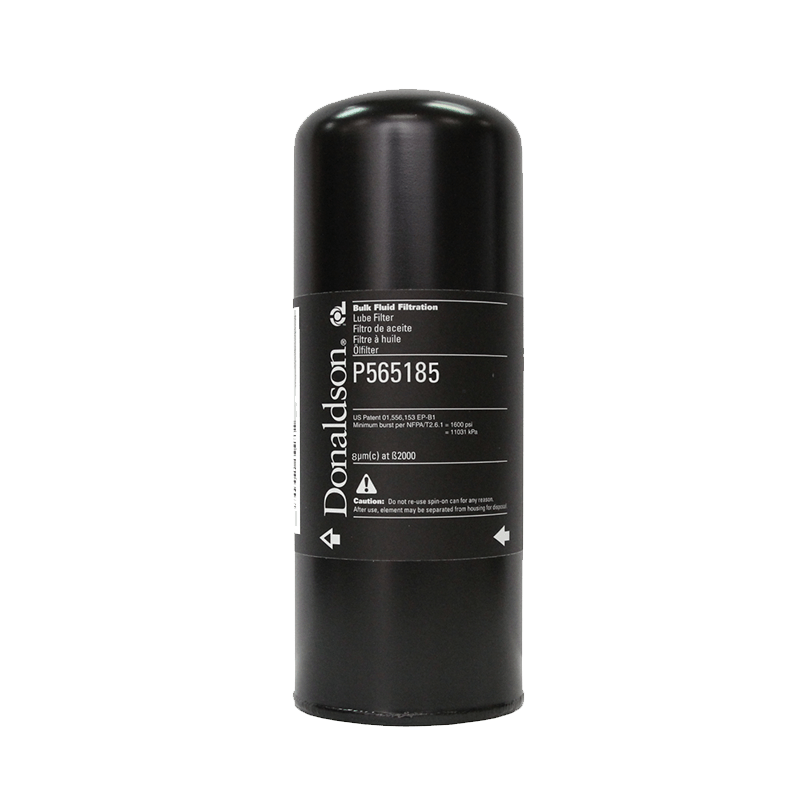

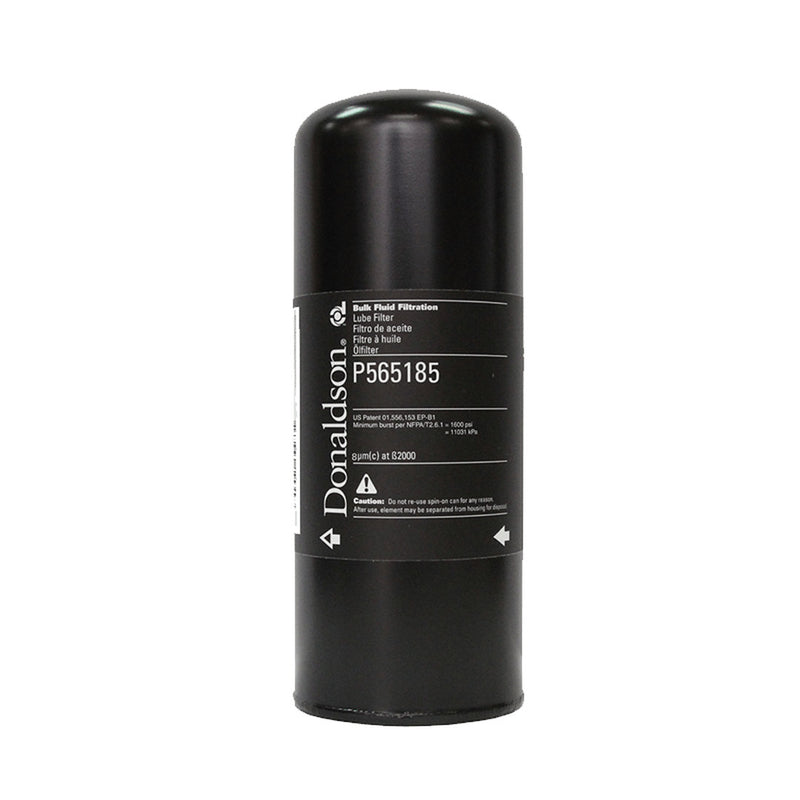

Donaldson Filter Element hP 8um
Overview
Filtering oil prior to dispensing into equipment is critical to meet the ISO cleanliness specifications demanded by today’s OEM’s. Donaldson Bulk hP filters provide high efficiency filtration in a single pass.
Workshops use high pressure pumps to force oil through long lengths of piping and hose reels prior to dispensing into equipment.
Donaldson Bulk hP filters remove contaminants delivered in oil and picked up in storage or delivery lines during final transfer. They ensure the required ISO cleanliness level is met every time.
Features
Features
Specifications
- Up to 1000 psi / 6894 kPa / 68.9 bar working pressure
- Compact design requires only 1.5"" / 38 mm clearance for servicing
|
Part Number |
P565184 |
P565185 |
P565183 |
|
Target ISO Cleanliness |
14/13/11 |
16/14/11 |
18/16/13 |
|
Fluid Compatibility |
Petroleum based oils |
||
|
Max. Flow Range |
50 gpm / 189 lpm |
||
|
Micron Rating & Efficiency |
4 micron @ Beta 2000 |
8 micron @ Beta 2000 |
14 micron @ Beta 2000 |
|
Working Pressure |
1000 psi / 6894 kPa / 68.9 bar |
||
|
Element Collapse Pressure |
300 psi / 2068 kPa / 20.7 bar |
||
|
Application |
Hydraulic, gear, transmission and engine oils |
||
|
Rated Static Burst |
2200 psi / 15,168 kPa / 151.7 bar |
Data Sheet
