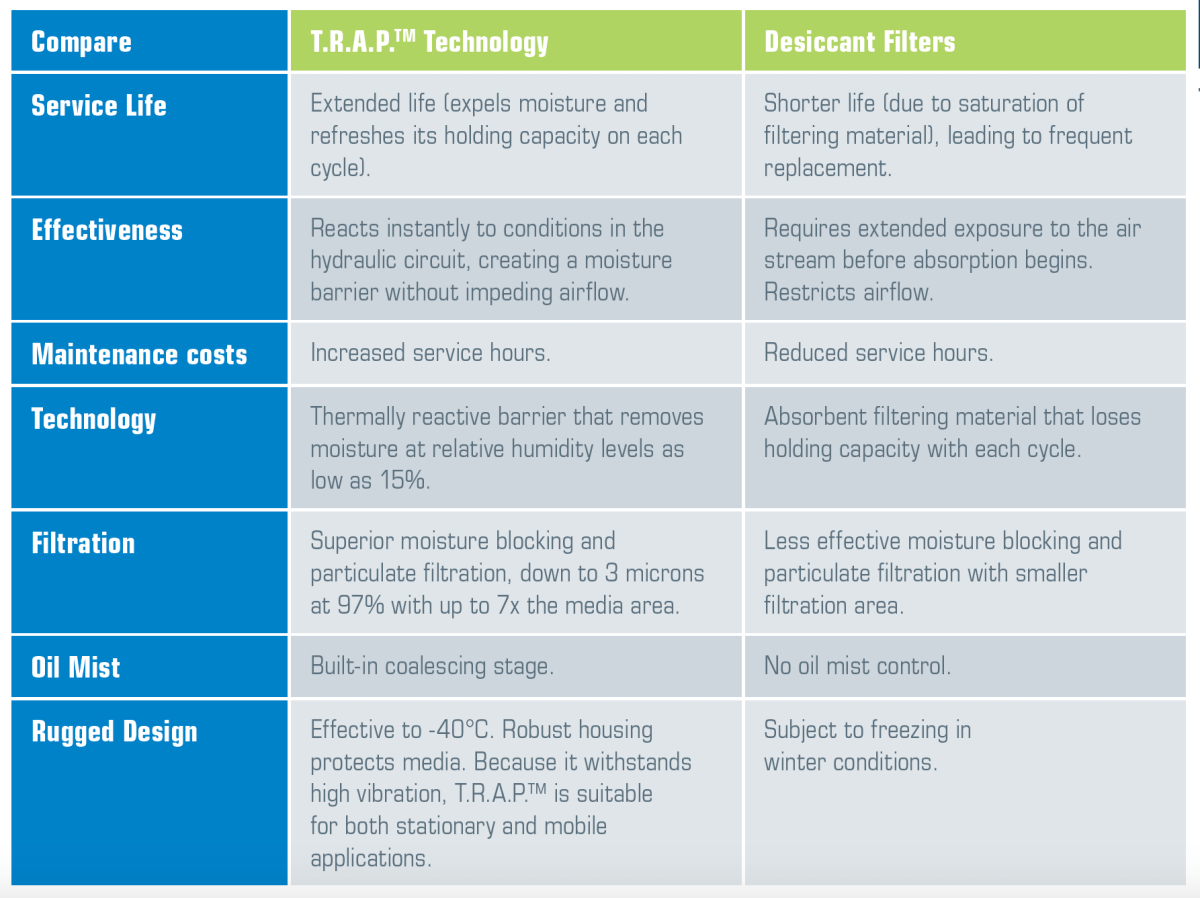

Donaldson TRAP v Desiccant Breathers
  • Donaldson Tank Breather TRAP DN40 (1 1/2") F BSP P506159
  • Donaldson Tank Breather TRAP 1 1/2" P506159
  • Donaldson Tank Breather TRAP 1 1/2" P506159
  • GO Donaldson TRAP Breathers how they work
  • Donaldson TRAP v Desiccant Breathers
1 6

Moisture Meets It's Match

Donaldson T.R.A.P.™ breathers collect and expel moisture out of tanks and reservoirs. This means you won’t need to change the breather due to water saturation, unlike desiccant filters which require frequent change-out.

Donaldson TRAP water and particulate before it gets in without restricting air flow − letting your reservoirs breathe easy.

How It Works

T.R.A.P.™ breathers from Donaldson are the only breathers on the market that literally strip moisture vapour from intake air and expel the moisture back to the atmosphere on the outflow cycle. The filter continuously regenerates its water holding capacity!

  1. The circuit “breathes in” air containing moisture vapour.
  2. The T.R.A.P. breather strips moisture and particulate from the incoming air, allowing only clean, dry air to enter the circuit.
  3. During the “exhalation” cycle, the T.R.A.P breather allows unrestricted airflow outward.
  4. The outflow of dry air picks up the moisture collected by the T.R.A.P breather during intake, and “blows it back out” – fully regenerating the T.R.A.P breather’s water-holding capacity.

Thermally Reactive Advanced Protection (T.R.A.P.™)

Water has a way of sneaking into your storage tanks / hydraulic circuits − unless you have a Donaldson T.R.A.P. breather standing guard over your system.

Donaldson’s T.R.A.P. breather removes moisture at relative humidity levels as low as 15%. T.R.A.P. filtration technology reacts instantly to changes in thermal conditions − blocking moisture.

T.R.A.P. breathers strip moisture vapour from intake air and release it back into the atmosphere on the outflow cycle. The filter continuously regenerates its water holding capacity. T.R.A.P. breathers expel the moisture back out, eliminating the need to change the breather due to water saturation - unlike desiccant filters that require frequent change-out. T.R.A.P. breathers not only protect against moisture but also provide advanced particulate filtration.

TRAP water before it gets in without restricting air flow, letting your hydraulic and lube oil reservoirs BREATHE.

  • GO Data Sheet Donaldson P506159
  • GO Data Sheet Donaldson TRAP Breather Range

Technical Details

Assembly Height:

350 mm

Max Width:

230 mm

Efficiency:

97% efficient @ 3 micron

Maximum Flow Range

500 lpm

Operating Temperature

-40 to 93oC

Connection:

DN40 (1 ½”) BSP Female

Indicator Port

1/8” NPT
    • DN40 (1 1/2") Female BSP Thread
    • High Air Flow Bulk Tank design
    • 350mm High x 230mm Wide
    • Restriction indicator port 1/8” N
    • 2.32 PSI/15 kPa relief valve
    • Brass fittings with a 1 ½” BSP Socket

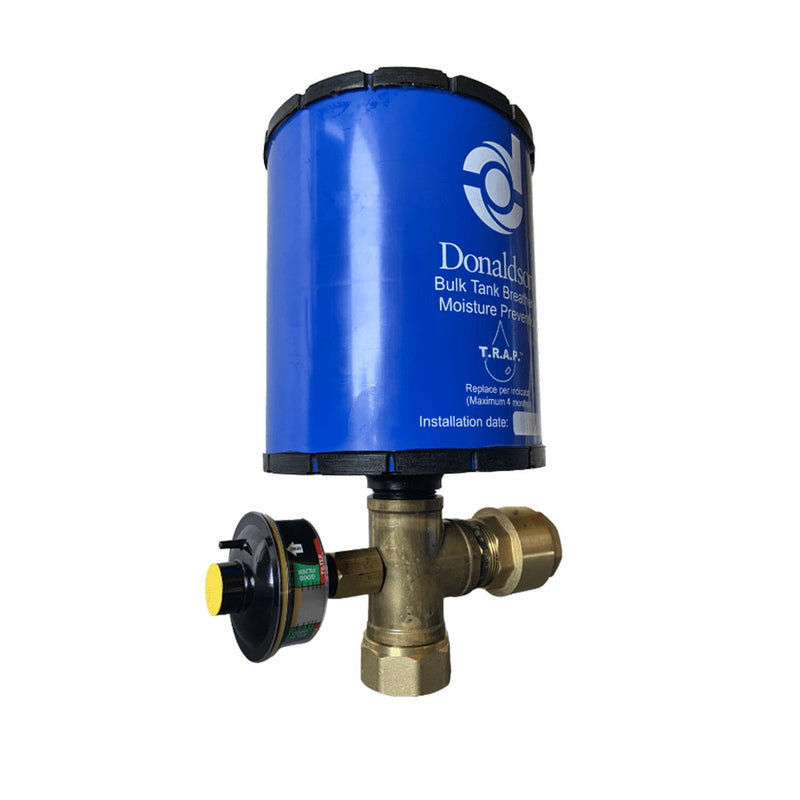

Donaldson Tank Breather TRAP DN40 (1 1/2") F BSP P506159

SKU: P506159

Donaldson Tank Breather TRAP DN40 (1 1/2") F BSP P506159

$520.00 AUD
$520.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

The Donaldson P506159 DN40 (1 1/2") TRAP Breather, from GO Industrial, is designed for installation on bulk diesel, lubricants and hydraulics tanks to remove particulate and moisture from air entering the tank, during dispensing operations.

For every litre of liquid that you dispense from a tank or drum, a litre of air enters the vessel.  This air entering your tank or drum is laden with moisture and dust.  The Donaldson TRAP Breather will filter the moisture and dust from the air entering your tank or drum, ensuring the cleanliness and purity of the liquid being stored.

The Donaldson P506159 TRAP Breather combines a high capacity 3 micron air filter with a deliquescent breather that regenerates itself when air is expelled from the tank. The self-regenerating moisture blocking capability of T.R.A.P enables extended life and functionality.

Applications

  • For use with all diesel fuels and lubricants
  • Above and below ground tanks
  • Mobile service trucks
  • Indoor and outdoor applications
  • High flow and large capacity tanks (may require multiple breather units)
  • Establish the safe working pressure and vacuum values of your tank before calculating breather requirements
